Data description & calibration Summary Movies Data Thumbnails and Files
EIS takes full-disk mosaics every 3-4 weeks using the 40" slit (slot). This Hinode Observing Program (HOP130) started in 2009.
  • The mosaic requires 15 Hinode spacecraft pointings to cover the full solar disk.
  • At 11 of those pointings, EIS takes 2 rasters scans exposing the top (T) and the bottom (B) of the CCD. In the other 4, it takes a single raster scan. The total amount of raster scans is 26.
  • Each scan (488"x512") consists of 15 slot exposures for a total of 390 exposures.
  • The raster scan properties are given by the EIS study choice:
Additional background information can be found in the HOP 130 definition and the instructions for EIS planners.

To browse the datasets, we recommend visualizing first the Summary Movies.
Data files can be downloaded from the table of Data Thumbnails and Files.



Data description & calibration [Top]


Data files can be downloaded from the table of Data file links. Follow the instructions below to read the HDF files, convert to IDL maps and plot.

The data structure contains one mosaic image for every spectral window. Mosaic images are 2500x3000 pixels and are made by combining individual EIS rasters. AIA images scaled to the EIS pixel scale are used as the skeleton to build the mosaic. Each 195Å EIS raster is cross-correlated with a simultaneous AIA 193Å image that sets the reference frame. When two EIS rasters overlap on a pixel, the mosaic retains the average counts. As EIS takes several hours to complete the observation, the EIS mosaics cannot be matched to a single AIA image. The times for all 26 rasters are provided. The diagram at the top of the page shows the raster sequence to build the mosaic: 1T (raster 1), 1B (2), 2T (3), 2B (4)... 15B (26).

Slot rasters are initially processed with the standard EIS_PREP.PRO routine, including subtraction of constant dark current levels. For this dataset, the slot rasters are additionally substracted for an excess of dark current that has been observed to grow with the mission lifetimes. Data is provided as Data Numbers (DN) with no correction for sensitivity decay with time. That correction can be applied using: EIS_RECALIBRATE_INTENSITY.PRO. The data structure contains factors to convert the DN to Photons or ERGS.

This is a Beta product. The paper Young & Ugarte-Urra (2022) discusses the accuracy of the slot intensities in a general context and "provides prescriptions for deriving accurate slot intensities".

To read the H5 data files in IDL, use the routine EIS_RESTORE_HDF.PRO. The routine is not yet in SSW, but can be donwloaded here.

IDL> eis_restore_hdf,data=data,file='eis_fd_slot_20230110_m01.h5'
IDL> help,data
   RASTERS            STRUCT    ->  Array[1]
   DATE_OBS           STRING    '2023-01-10T11:05:27.000'
   DATE_END           STRING    '2023-01-10T14:36:40.000'
   INT                FLOAT     Array[2500, 3000, 13]
   ERR                FLOAT     Array[2500, 3000, 13]
   MEASRMNT           STRING    'Intensity'
   BUNIT              STRING    'DN'
   TIMESYS            STRING    'UTC'
   TELESCOP           STRING    'Hinode'
   INSTRUME           STRING    'EIS'
   RAST_ACR           STRING    'full_sun_slot_scan_2'
   SLIT_IND           LONG                 3
   SLIT_ID            STRING    40"
   LINE_ID            STRING    Array[13]
   WAVELNTH           FLOAT     Array[13]
   WAVEUNIT           STRING    'angstrom'
   EXPTIME            FLOAT           20.0000
   CNAME1             STRING    'Solar-X'
   CTYPE1             STRING    'HPLN-TAN'
   CUNIT1             STRING    'arcsec'
   CRPIX1             FLOAT           1250.00
   CRVAL1             FLOAT           0.00000
   CDELT1             FLOAT          0.986000
   CNAME2             STRING    'Solar-Y'
   CTYPE2             STRING    'HPLT-TAN'
   CUNIT2             STRING    'arcsec'
   CRPIX2             FLOAT           1550.00
   CRVAL2             FLOAT           0.00000
   CDELT2             FLOAT          0.990000
   NAXIS1             INT           2500
   NAXIS2             INT           3000
   DN_TO_PHOTON       DOUBLE    Array[13]
   DN_TO_ERGS         DOUBLE    Array[13]
   BUNIT_PHOTON       STRING    'photons'
   BUNIT_ERGS         STRING    'ergs/cm2/s/sr'
   SENSITIVITY_DECAY  INT              0

The data can be manipulated by accessing the INT tag in the data structure. To make plots or compare to other instrument images, the mosaics can be converted to IDL maps using the routine EIS_MK_FULLSUN_MAP.PRO. The routine is not yet in SSW, but can be donwloaded here. Follow this link to learn more about IDL maps: "IDL Map Software for Analyzing Solar Images".

IDL> window = 2
IDL> eis_map = eis_mk_fulldisk_map(data,window)
IDL> help, eis_map
   DATA            FLOAT     Array[2500, 3000]
   XC              DOUBLE           0.0000000
   YC              DOUBLE          -49.500000
   DX              DOUBLE          0.98600000
   DY              DOUBLE          0.99000001
   TIME            STRING    '10-Jan-2023 11:05:27.000'
   ID              STRING    'EIS Fe XII 195.120'
   DUR             FLOAT           12673.0
   XUNITS          STRING    'arcsec'
   YUNITS          STRING    'arcsec'
   ROLL_ANGLE      DOUBLE           0.0000000
   ROLL_CENTER     DOUBLE    Array[2]
   B0              DOUBLE          -4.0303963
   RSUN            DOUBLE           975.15379
IDL> window,0,xs=800,ys=500
IDL> !p.multi=[0,2,1]
IDL> plot_map, eis_map, /log
IDL> plot_map, eis_map, /log, xr=[-600,0],yr=[-500,100],dmin=100.,dmax=15000.
IDL> !p.multi=0

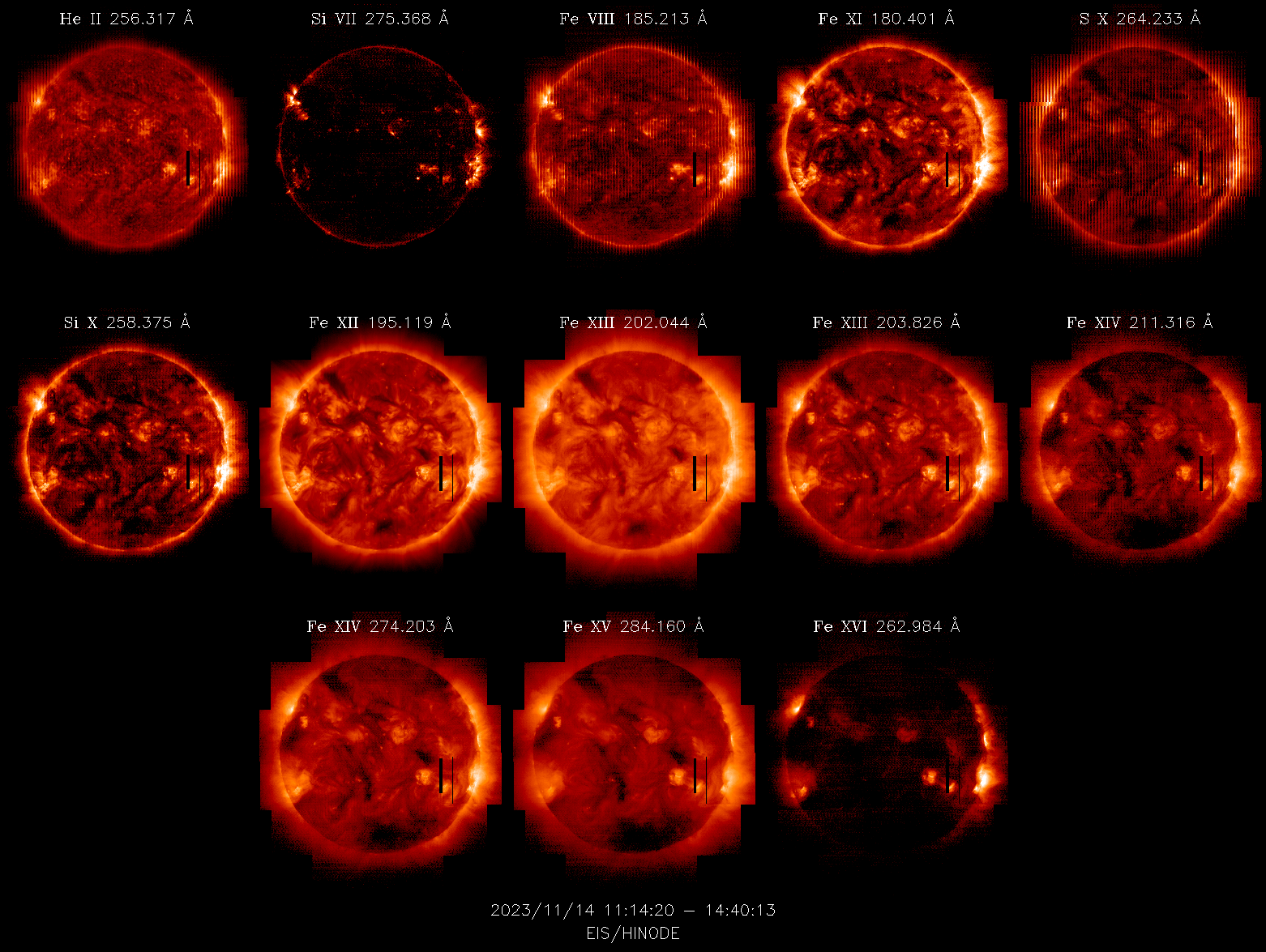

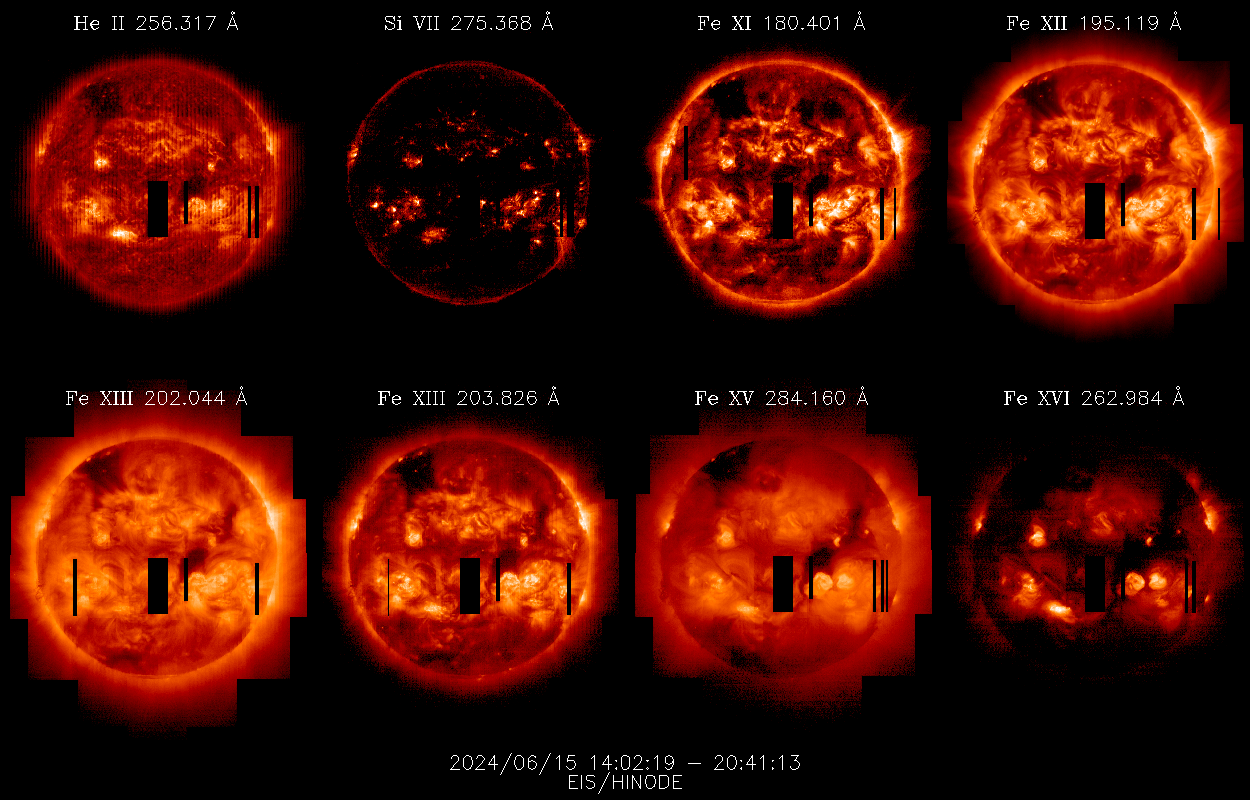

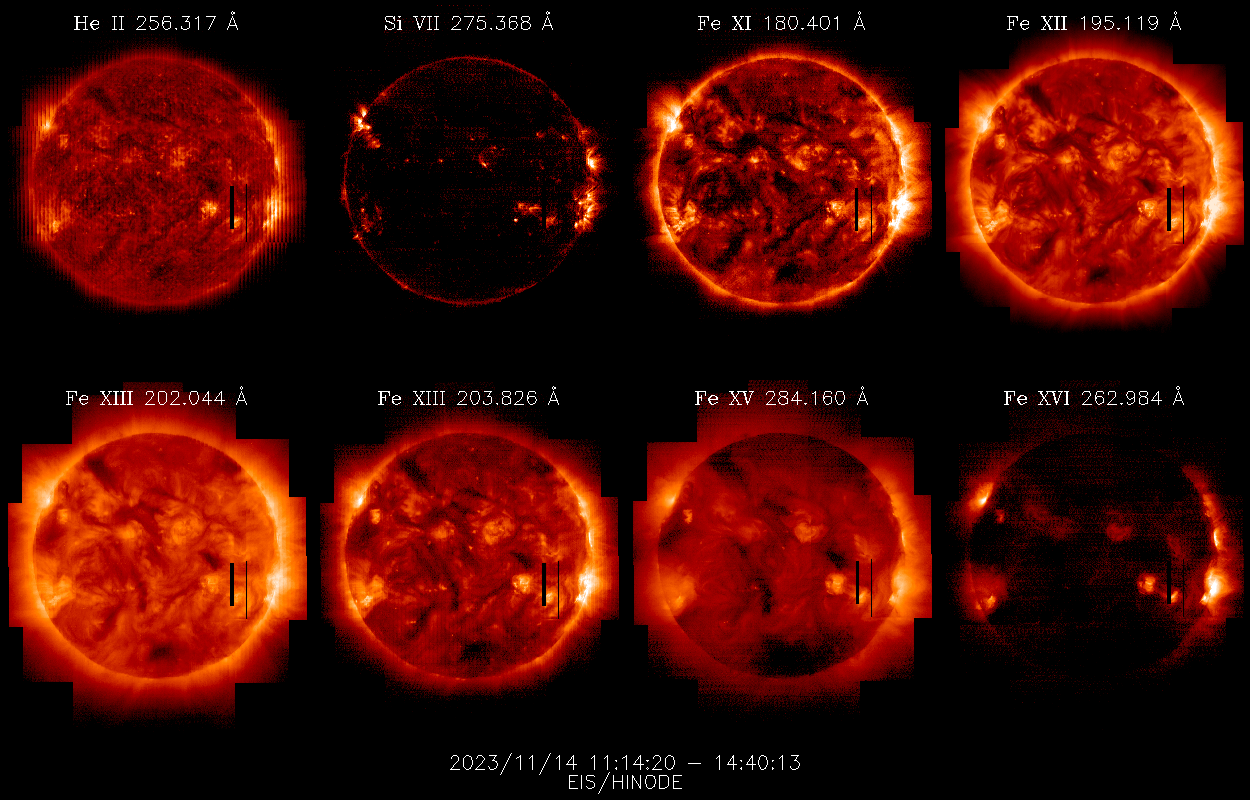

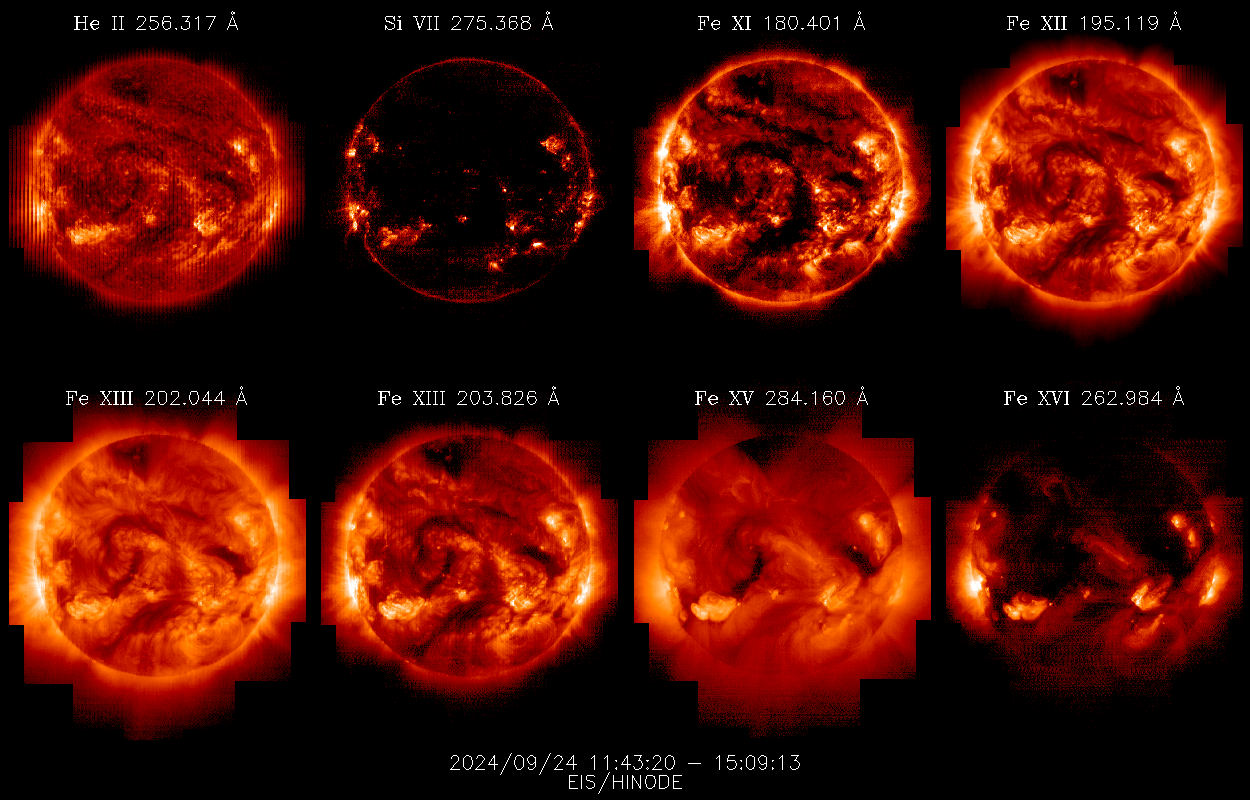

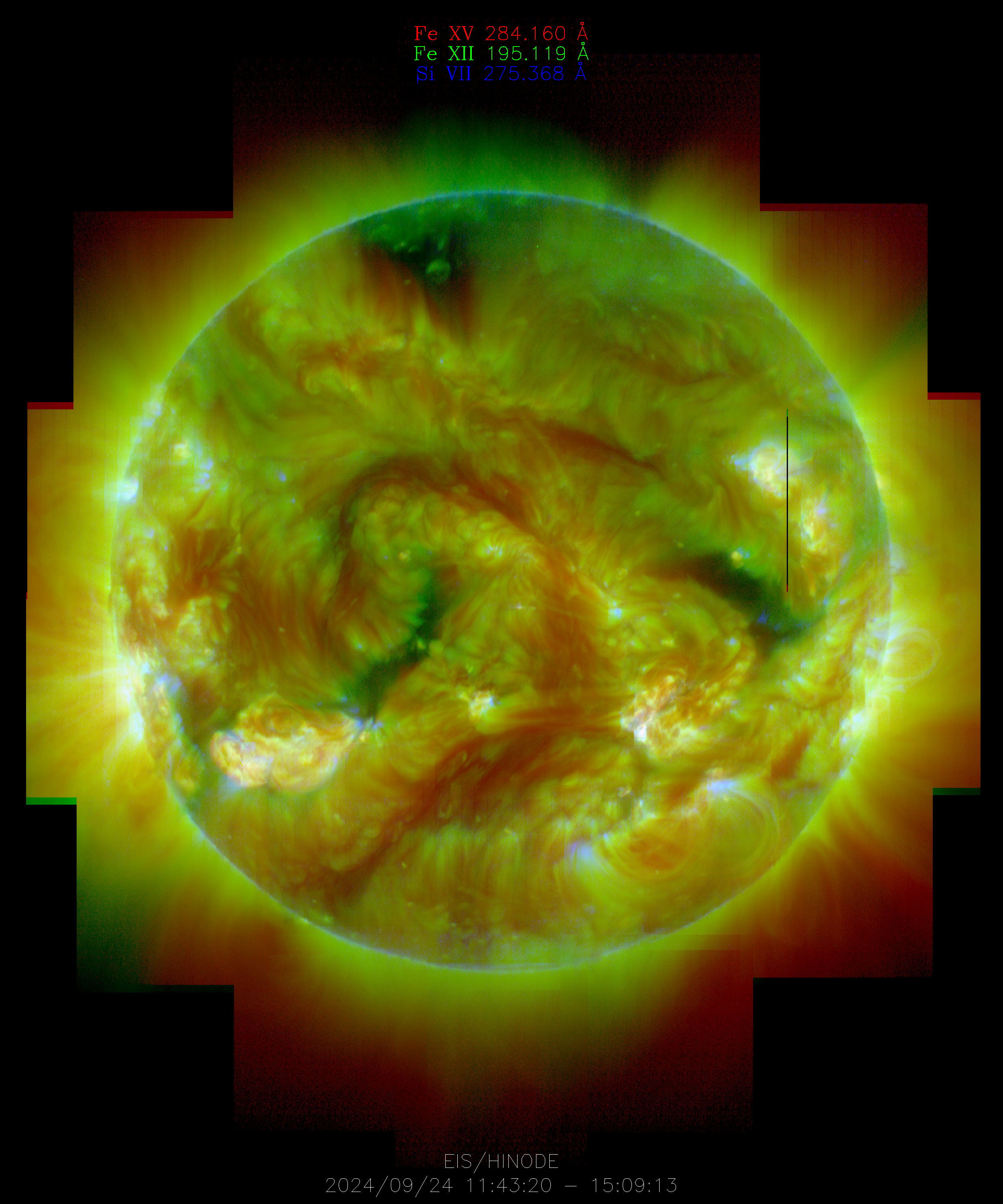

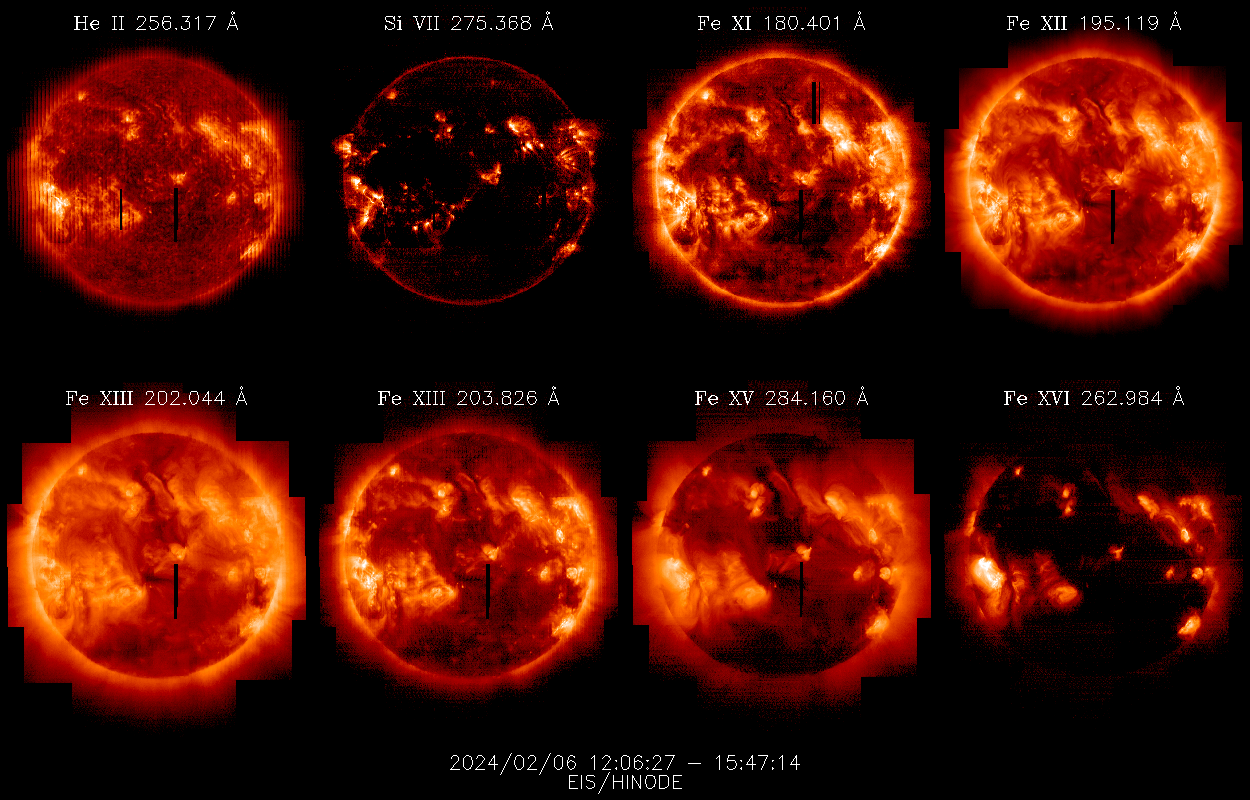

Summary Movies [Top]

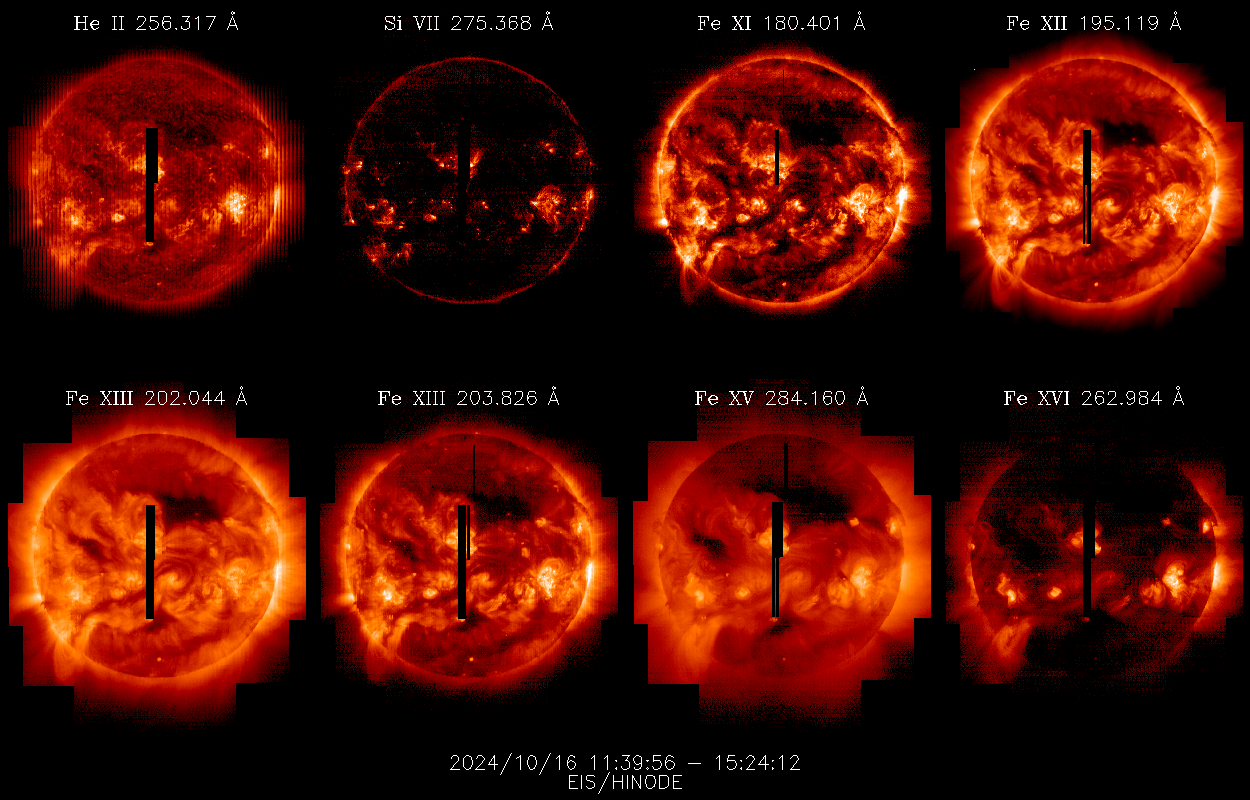

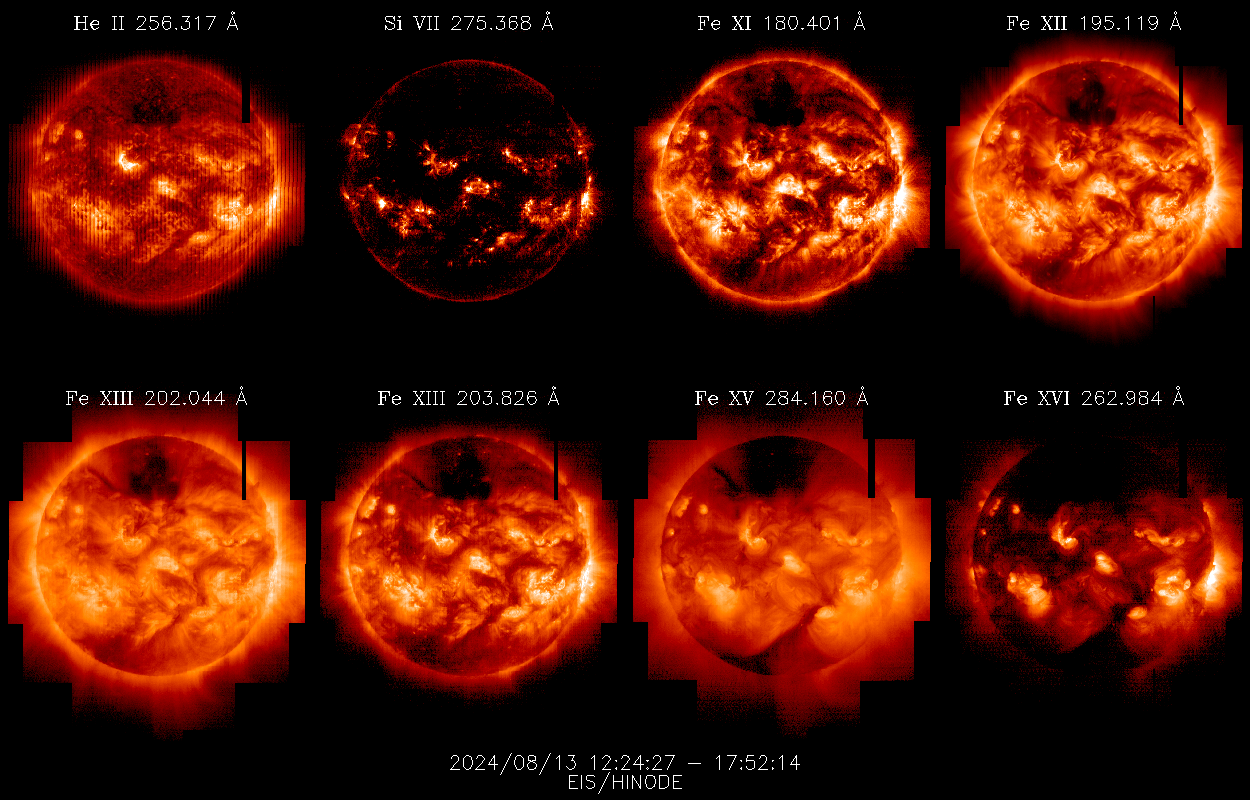

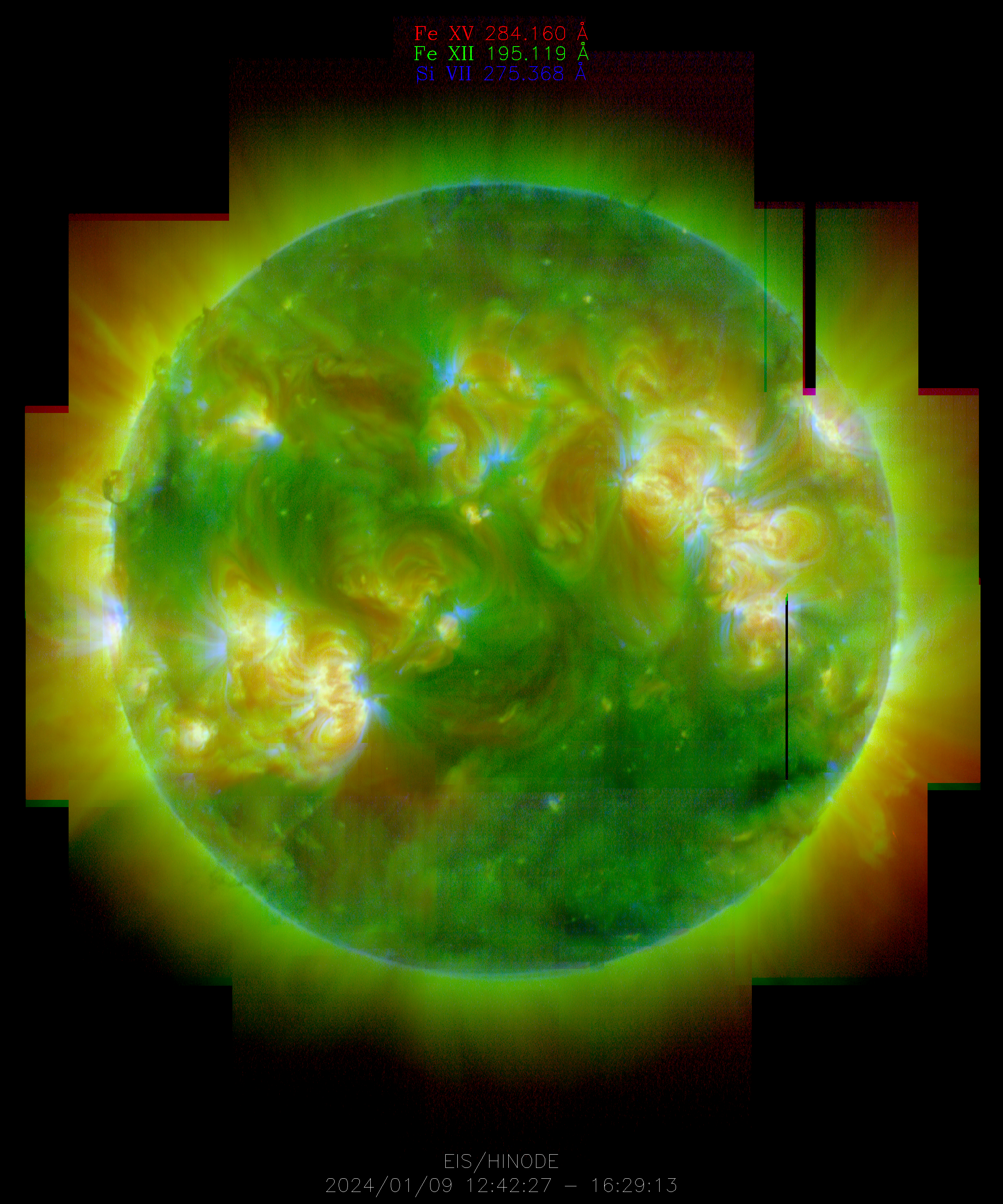

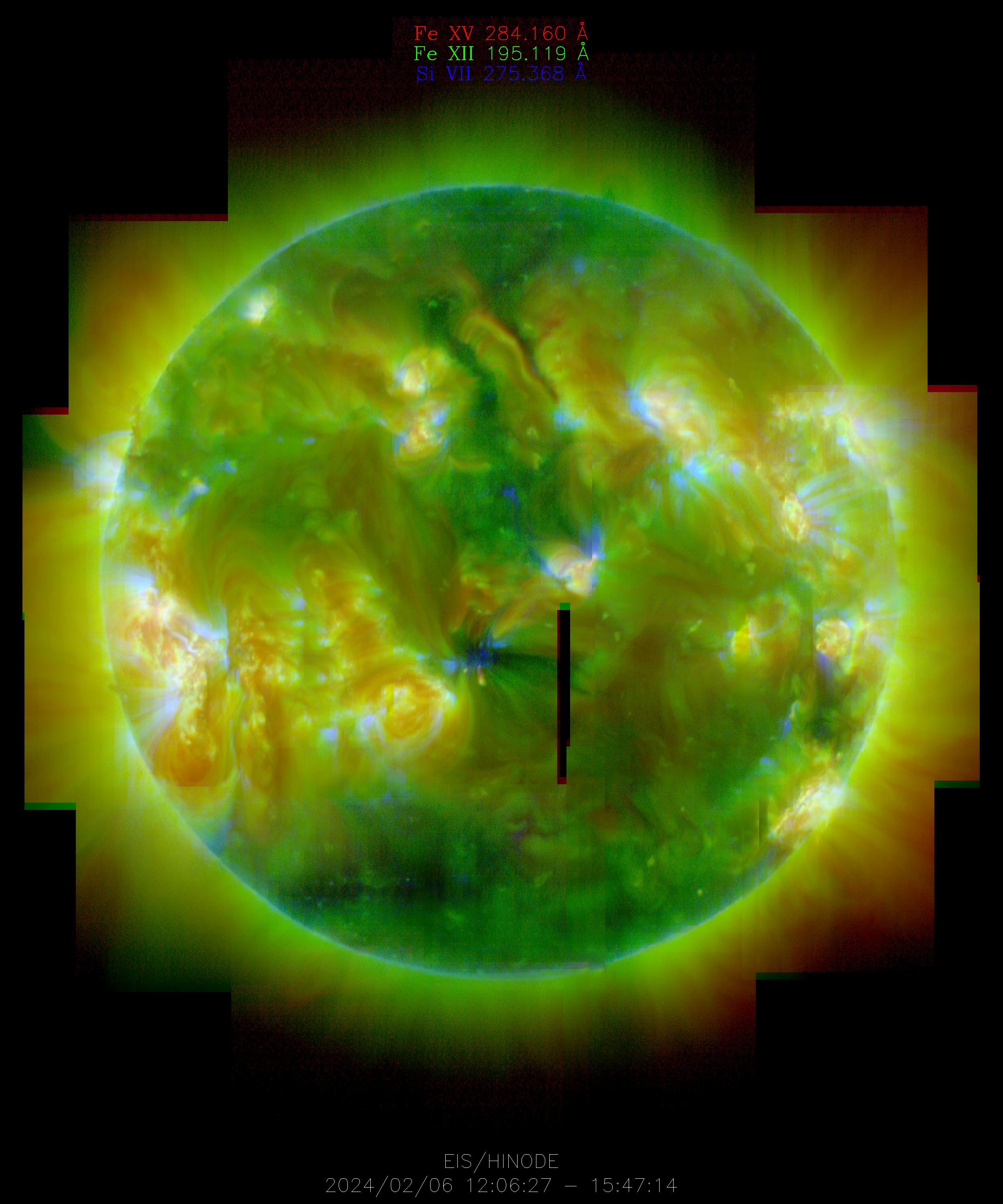

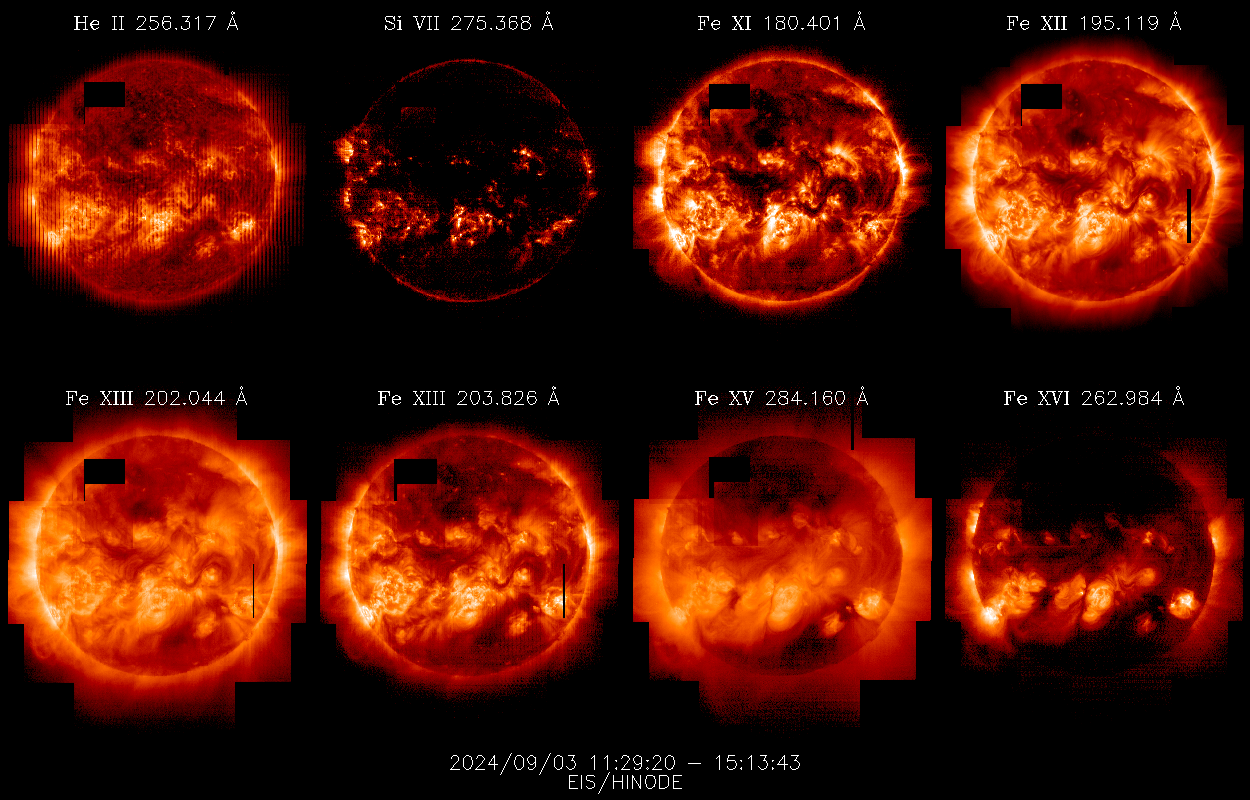

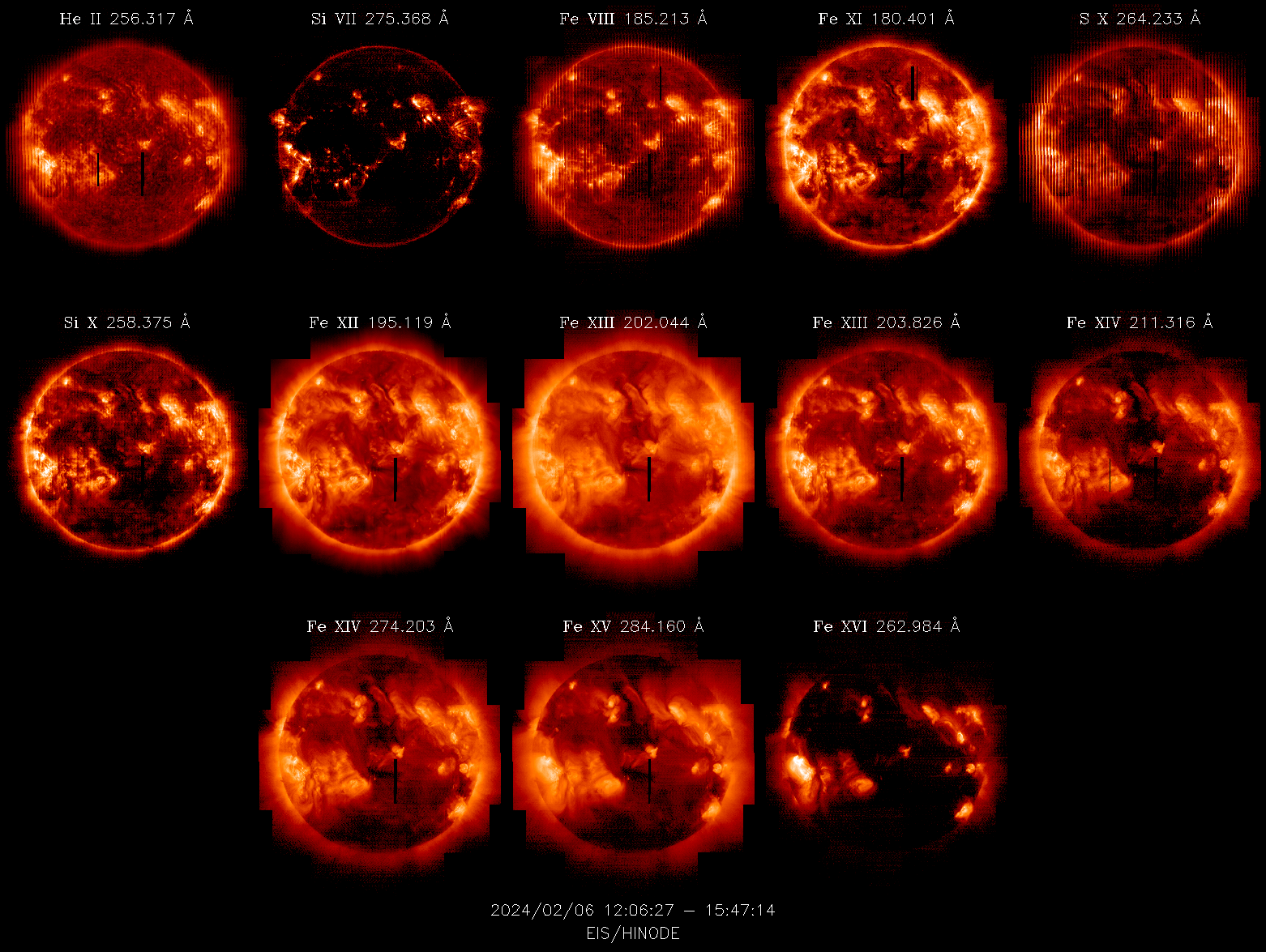

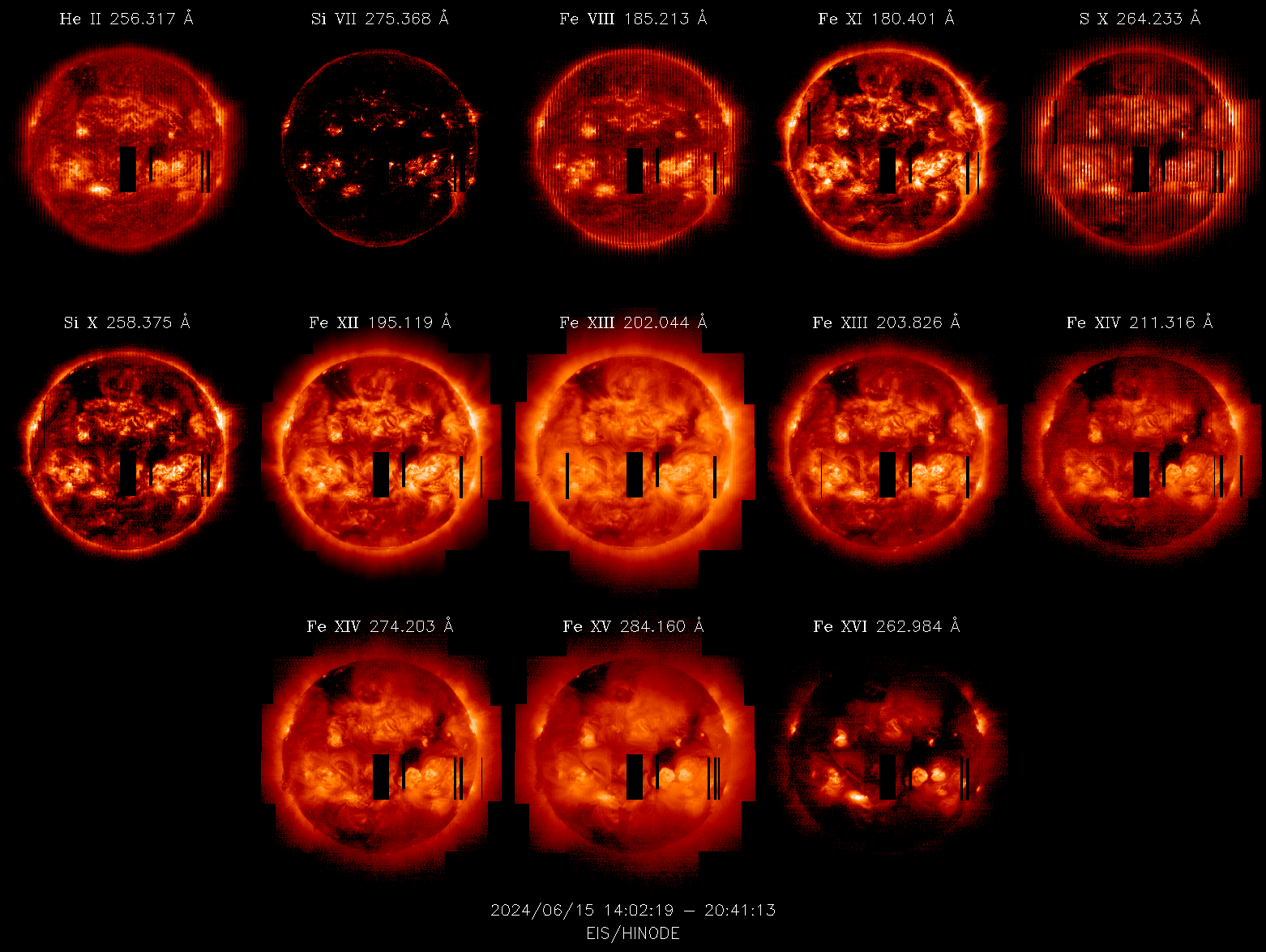

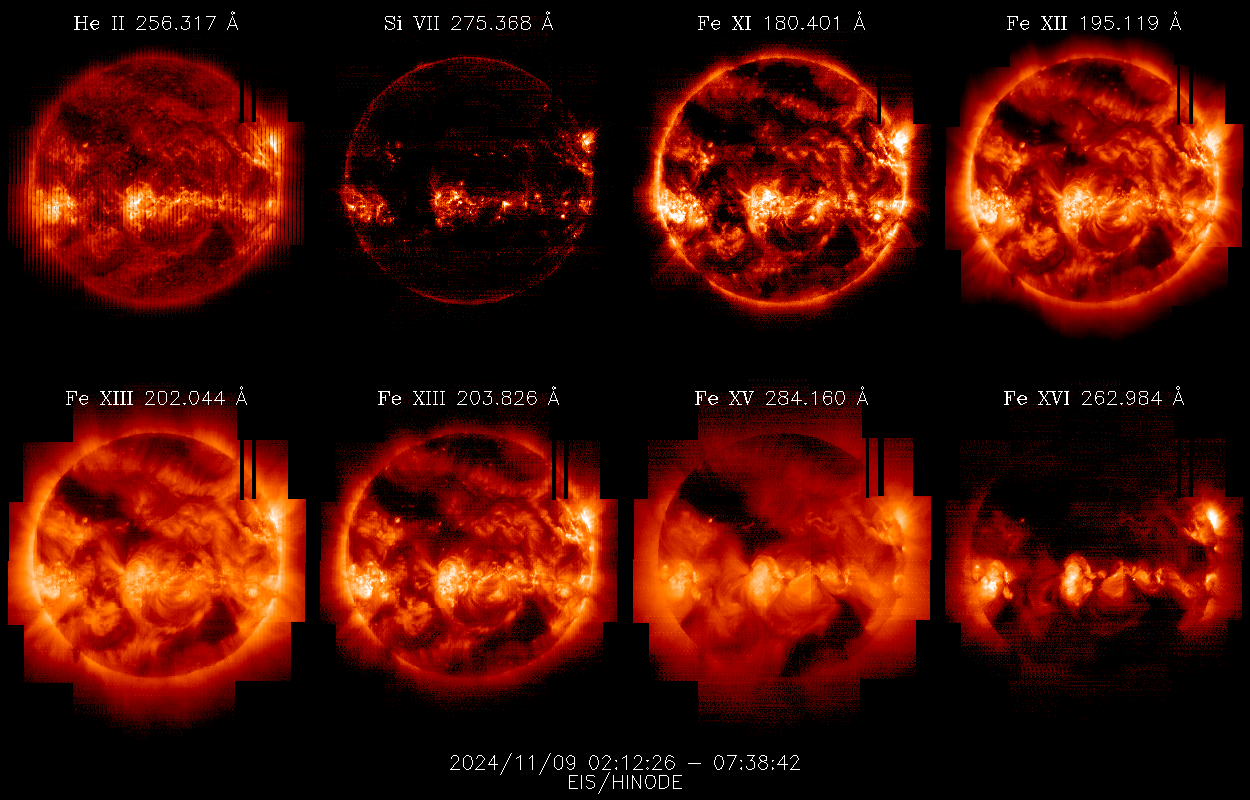

SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite

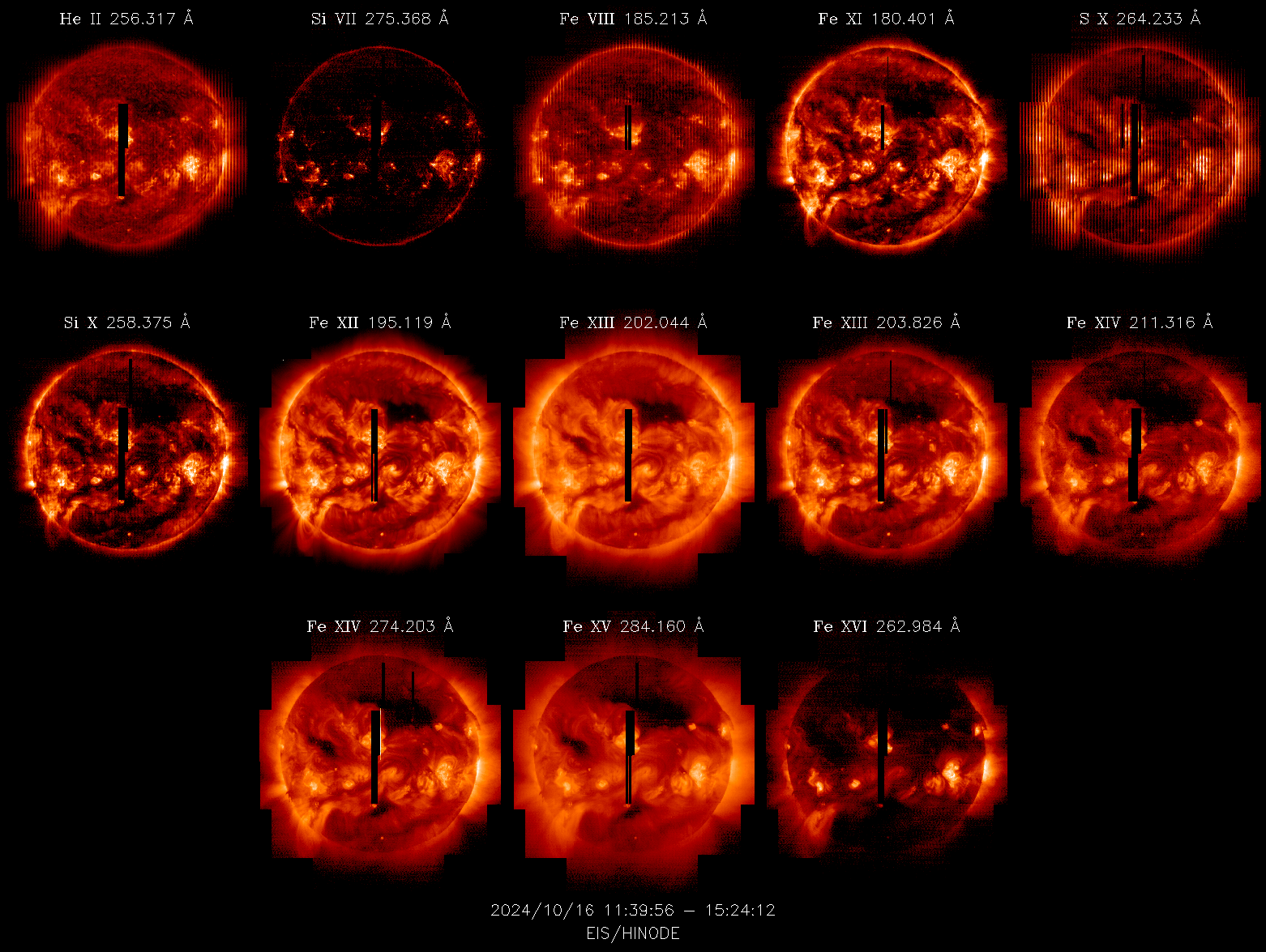

Short list , Extended He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Part

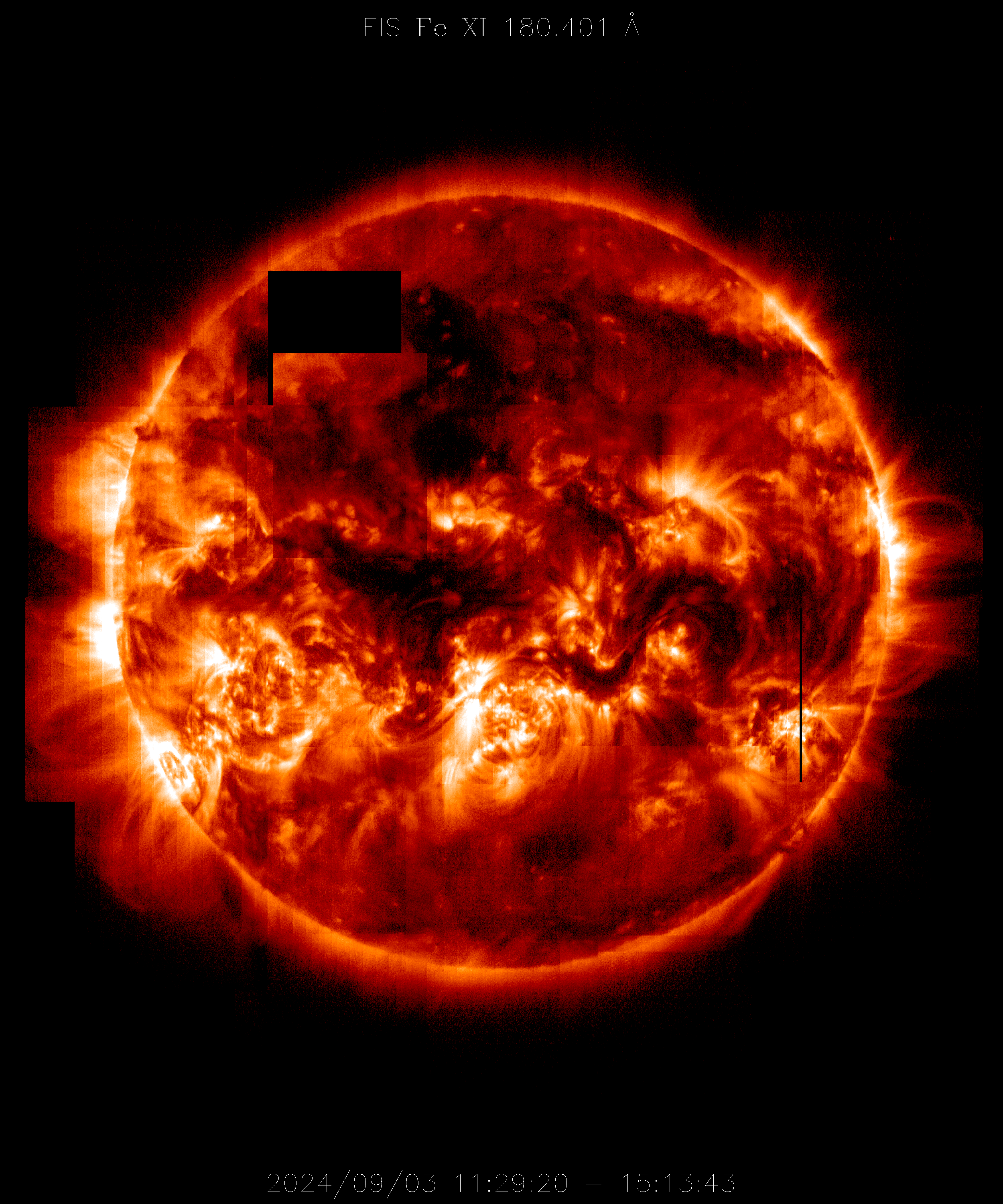

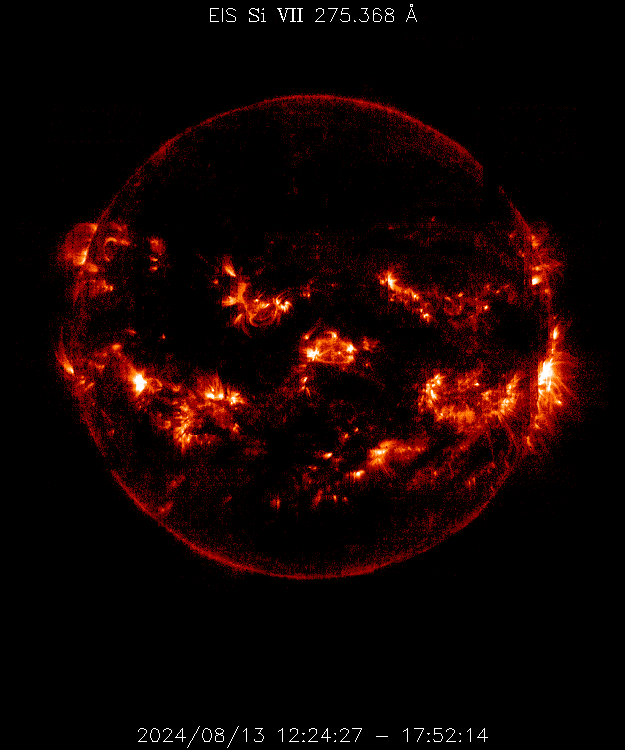

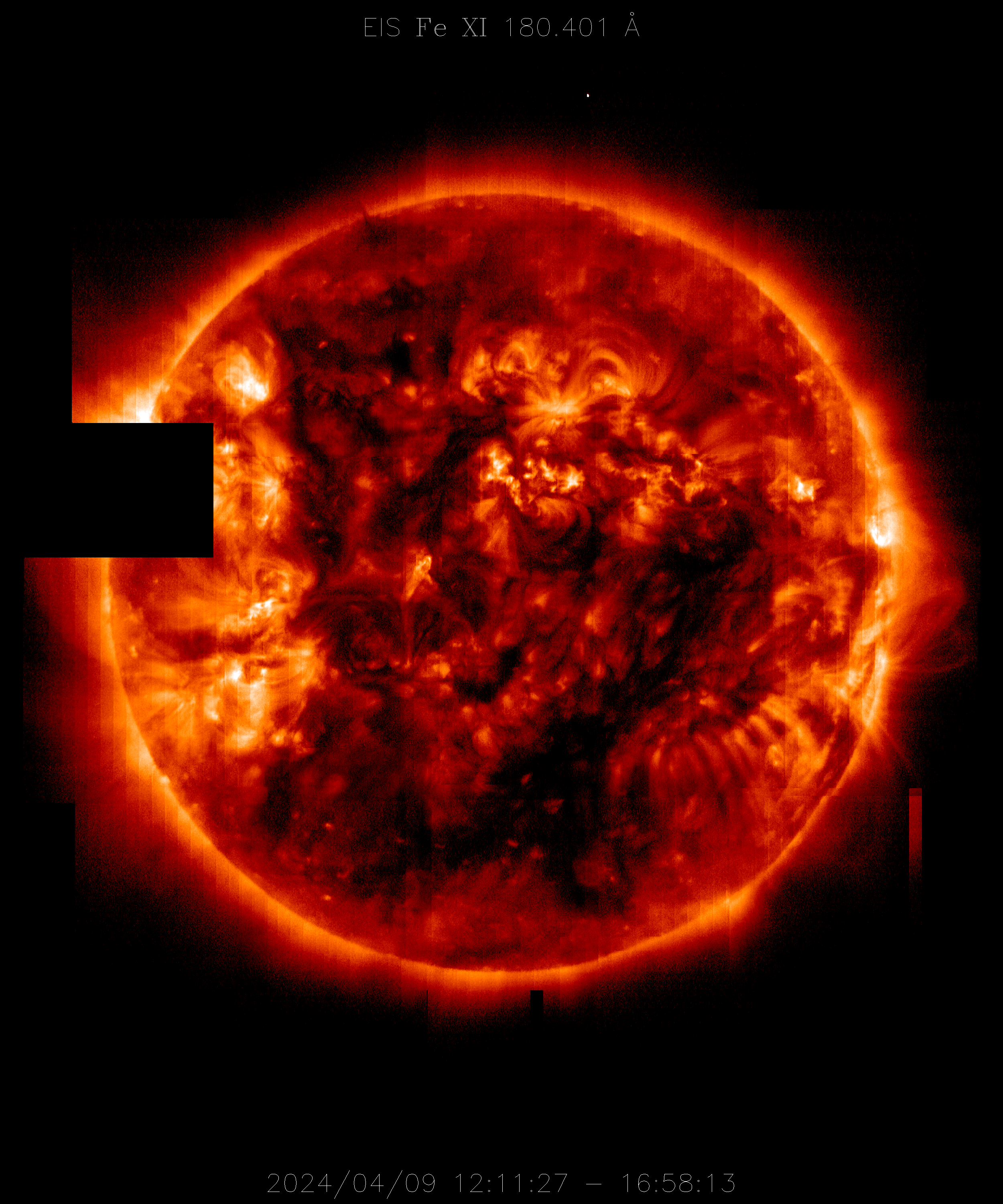

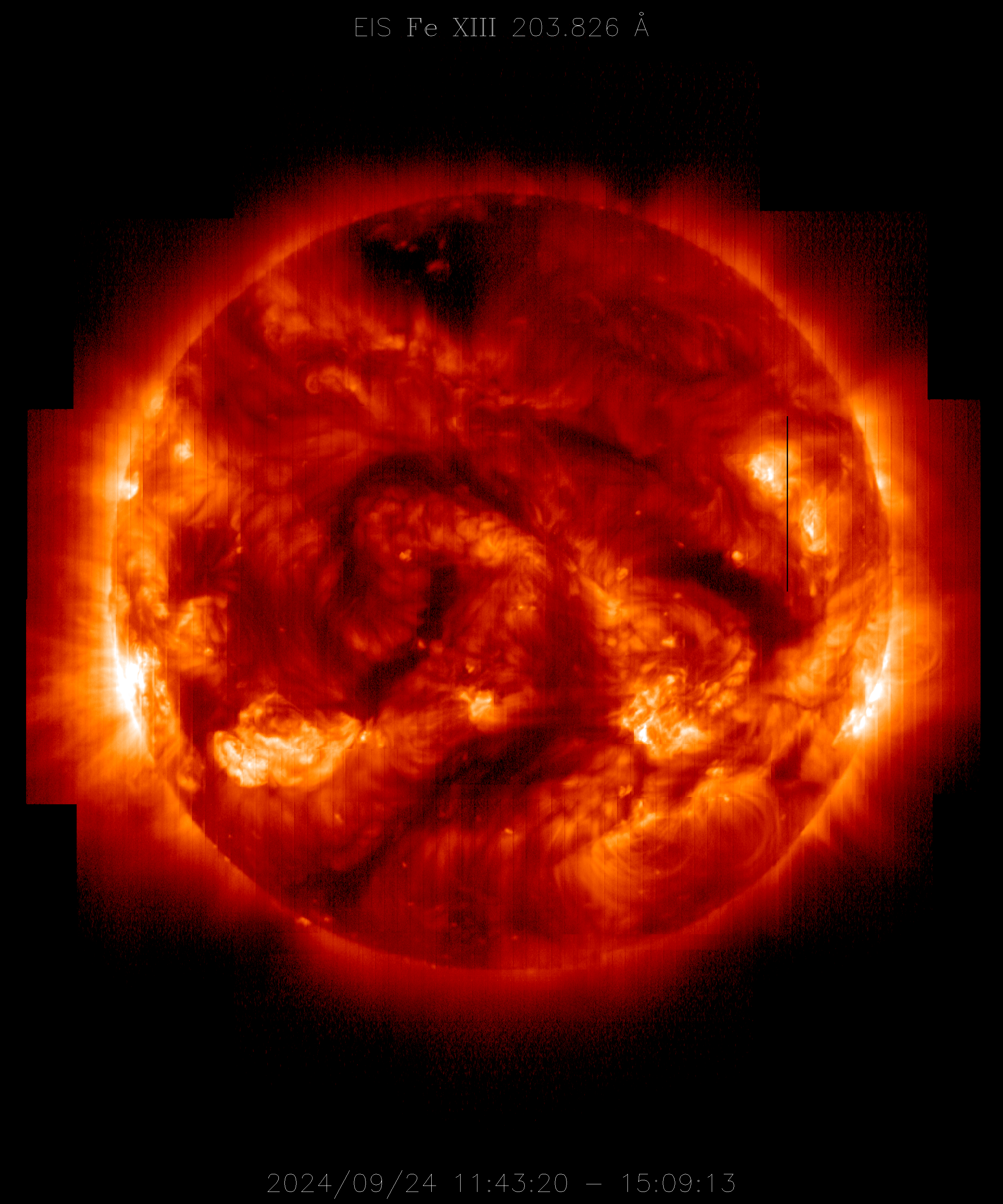

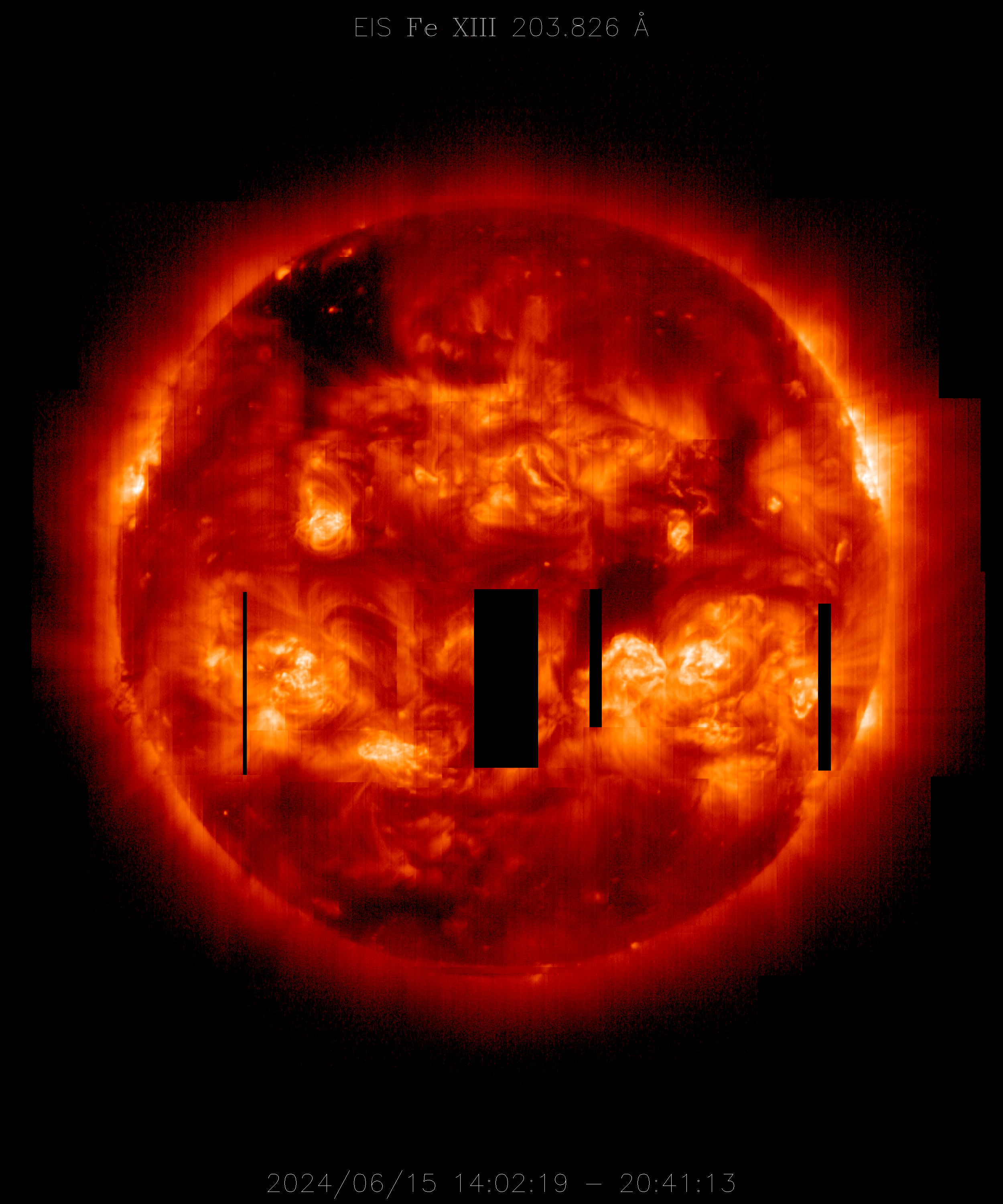

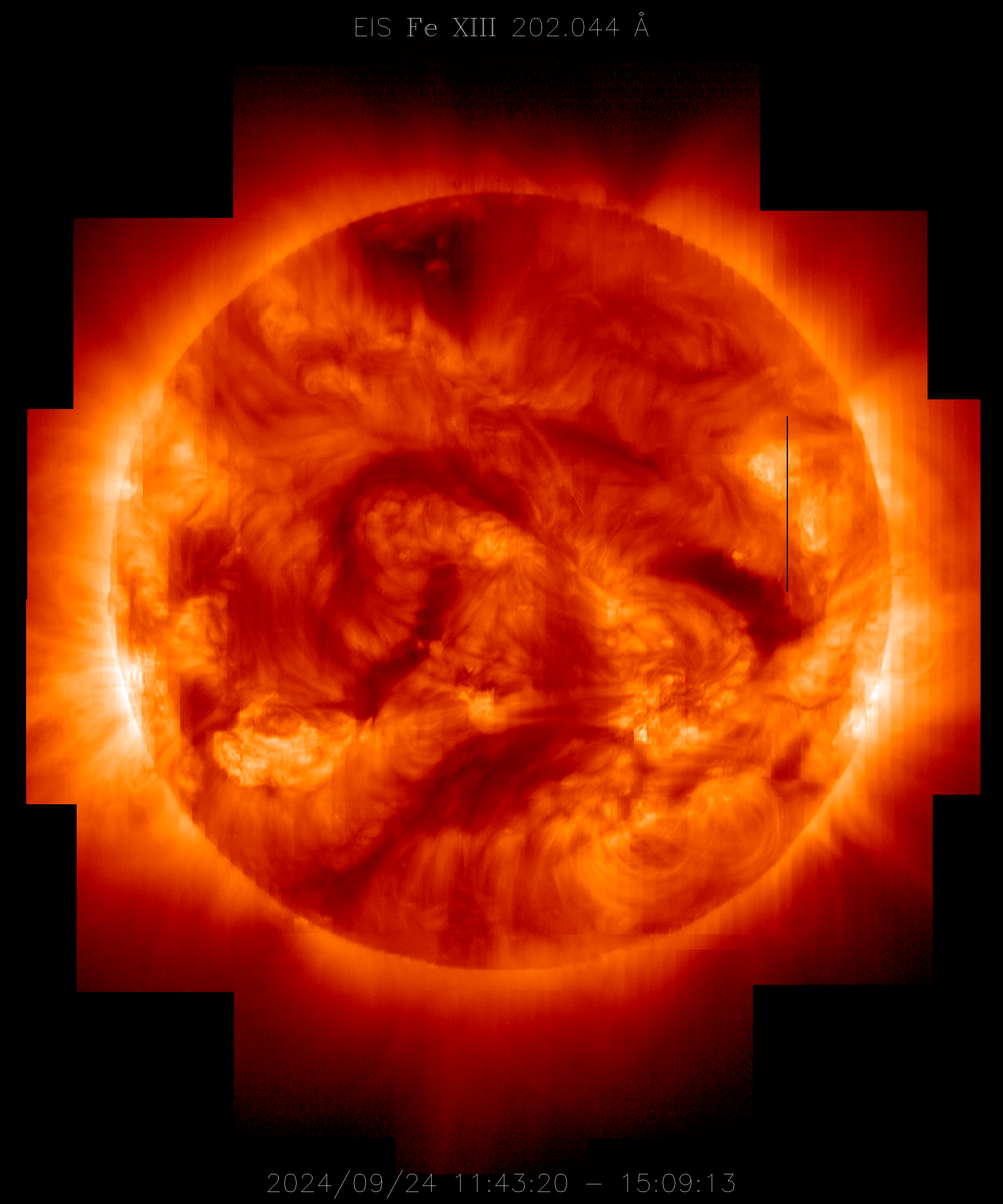

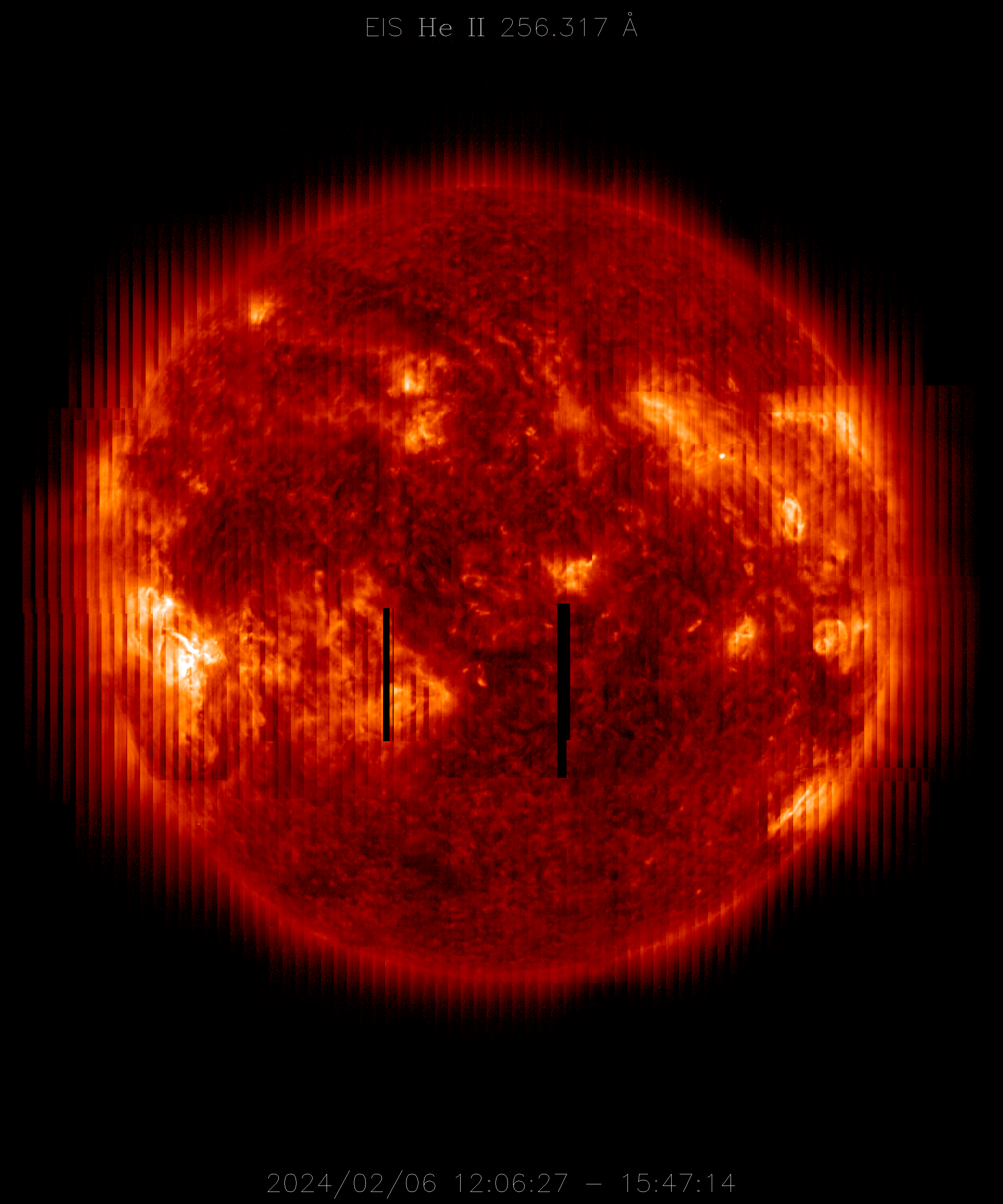

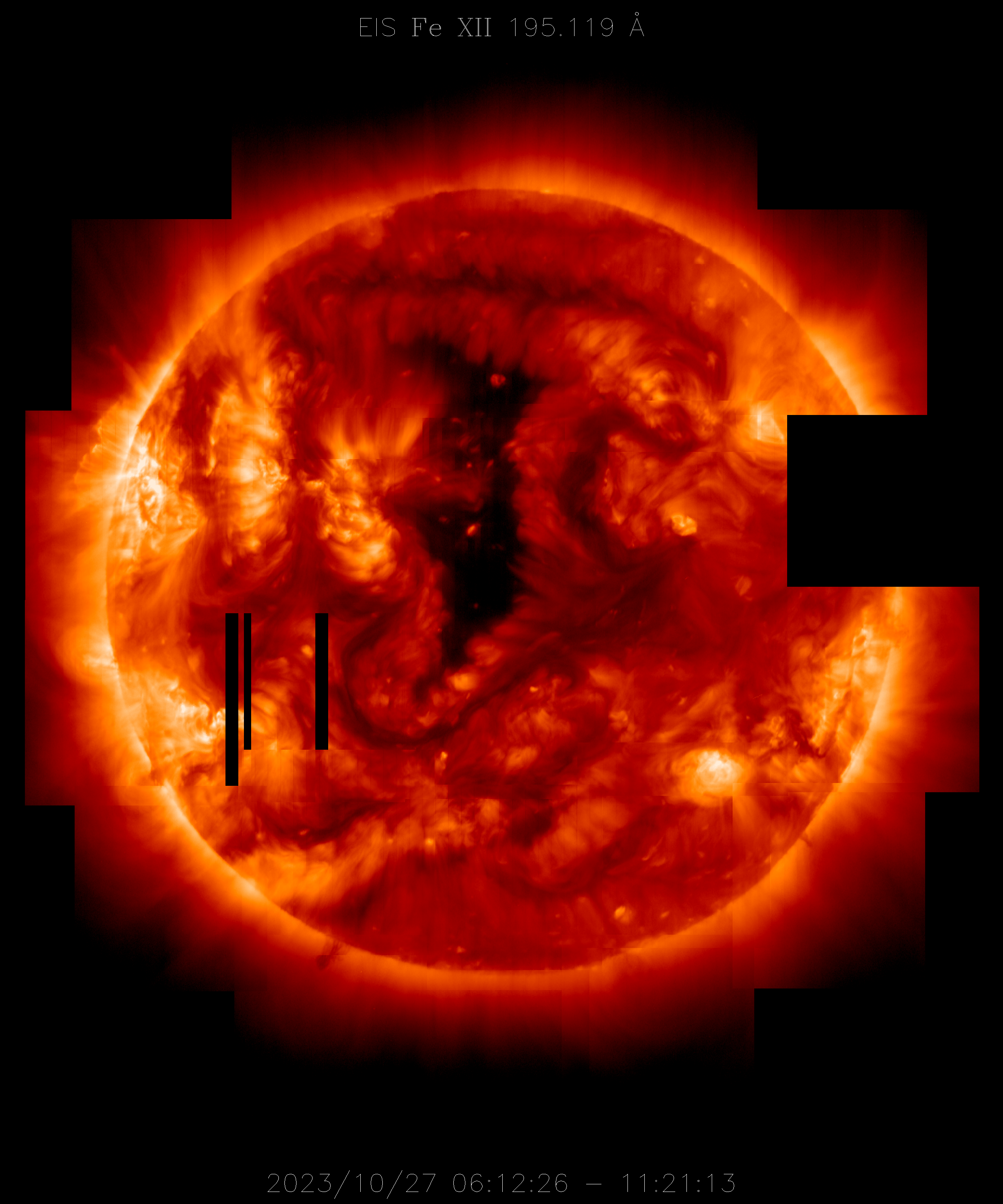

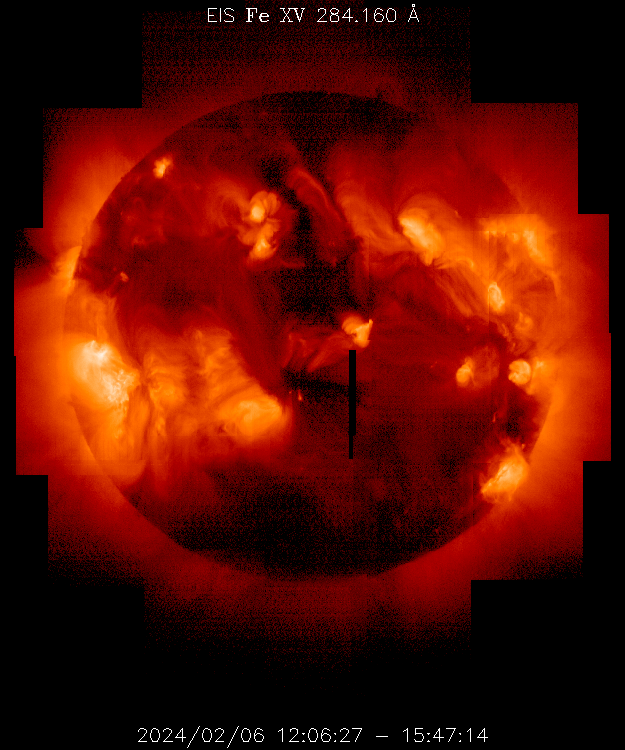

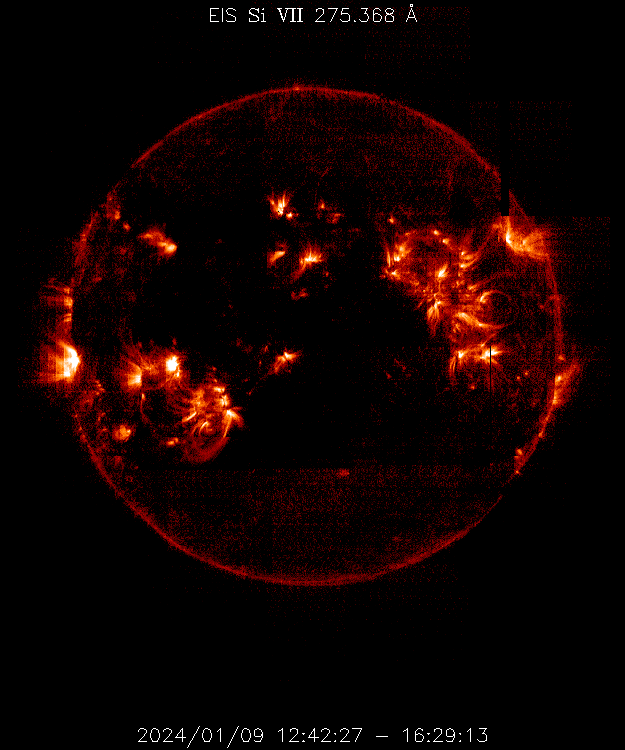

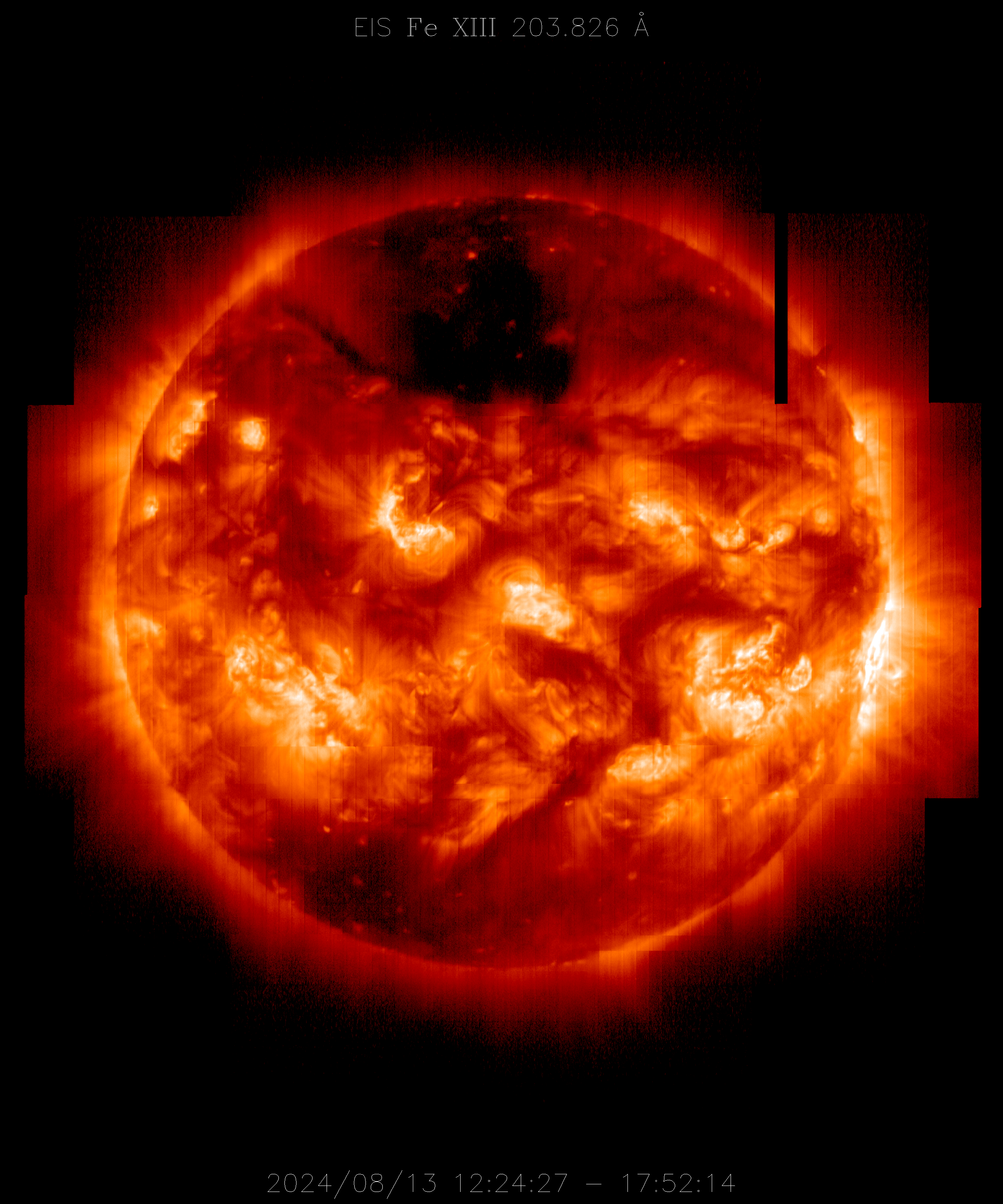

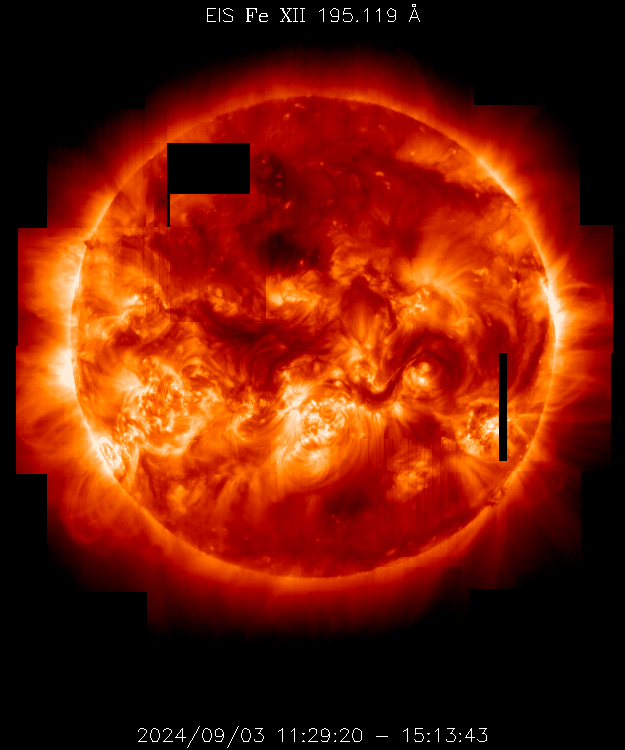

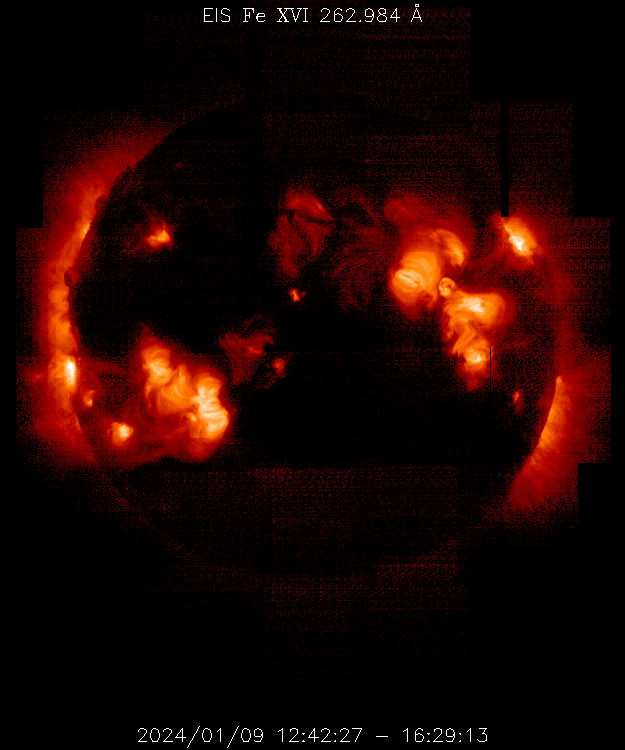

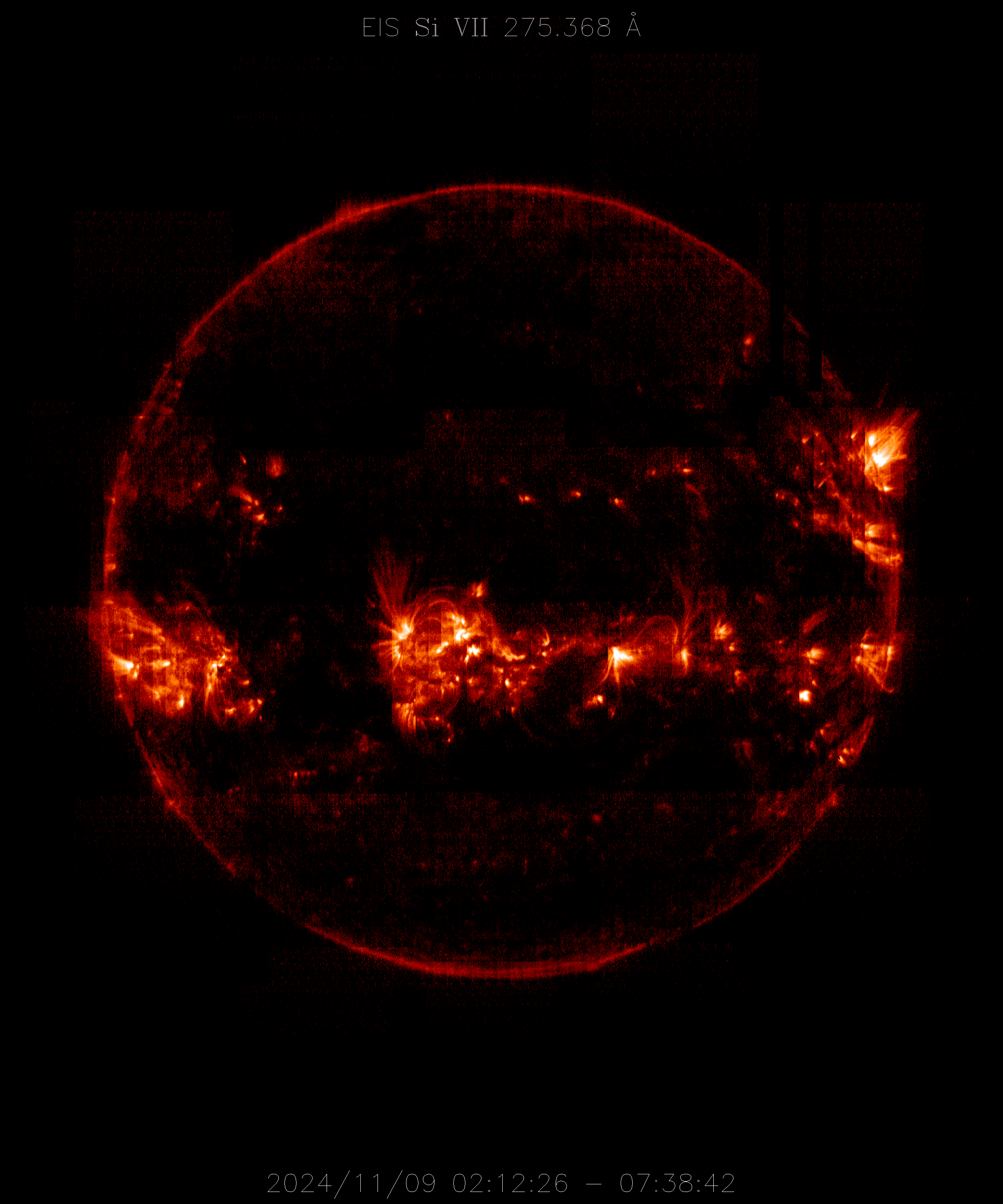

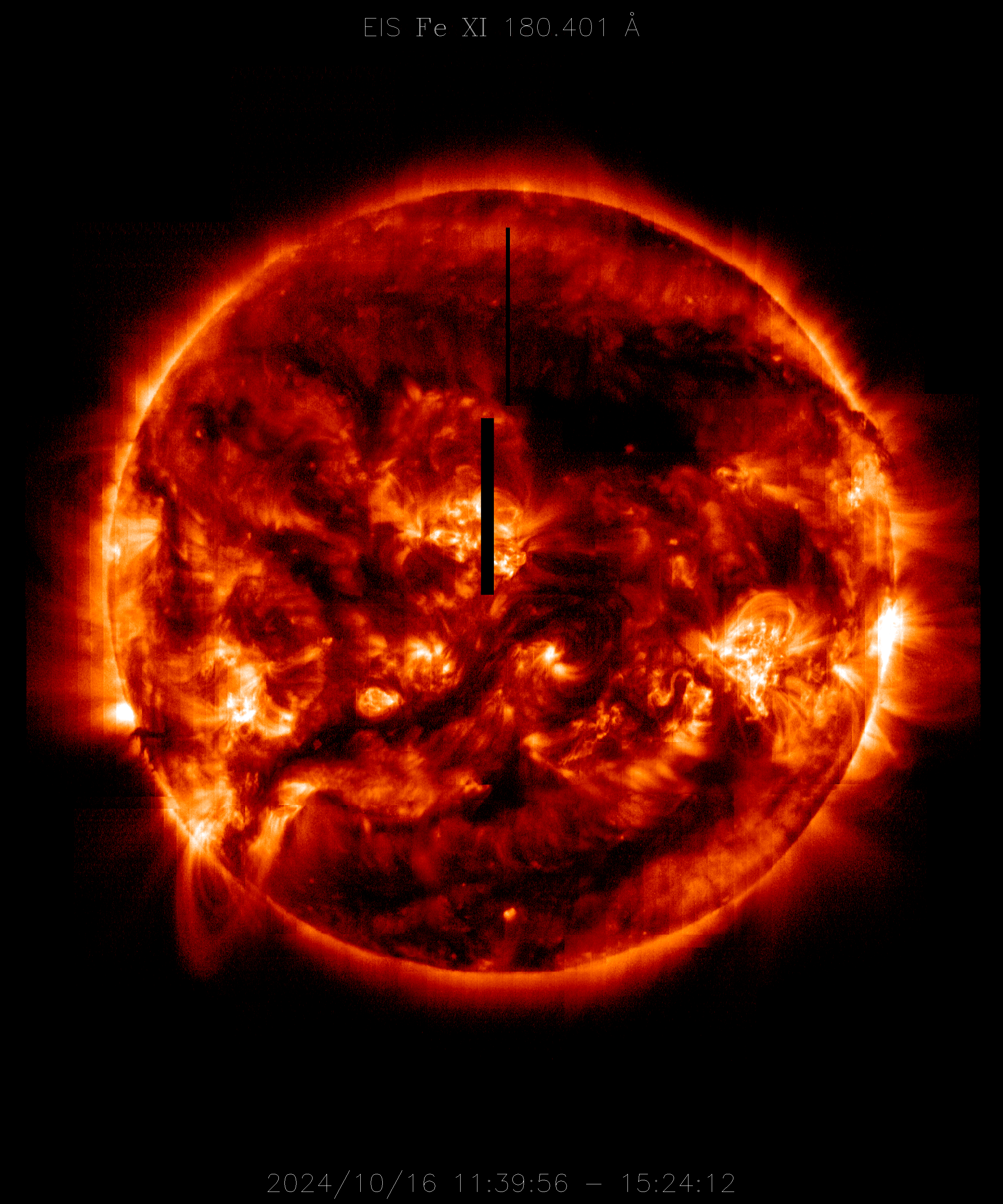

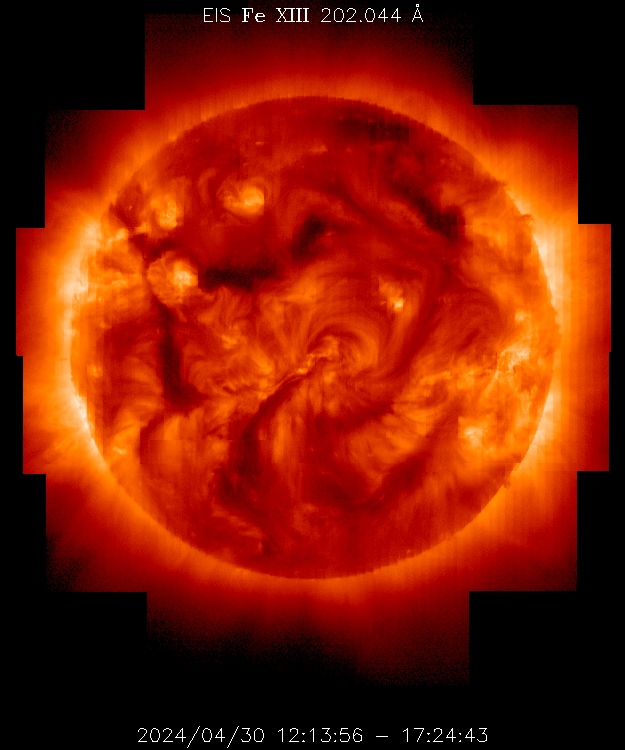

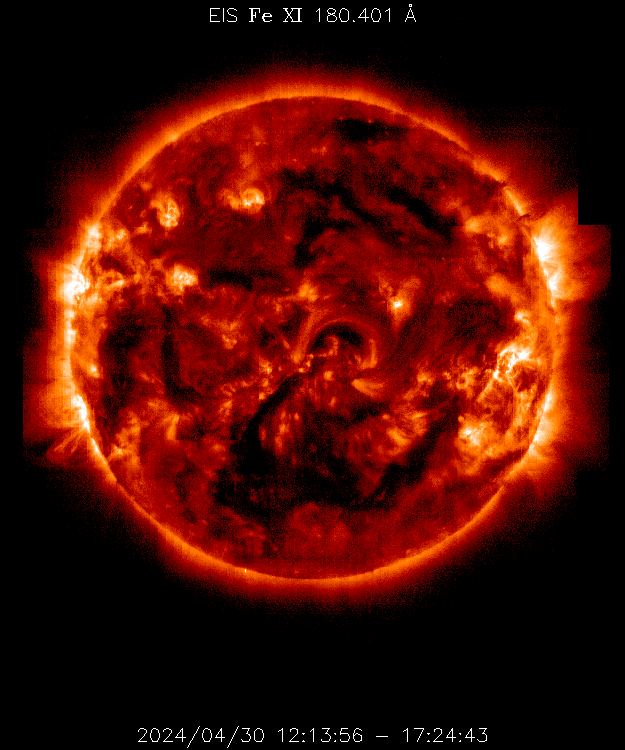

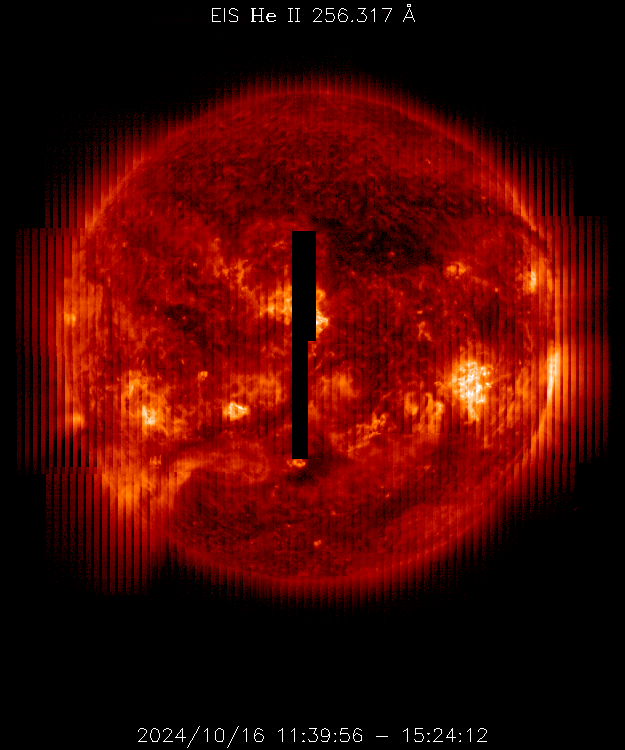

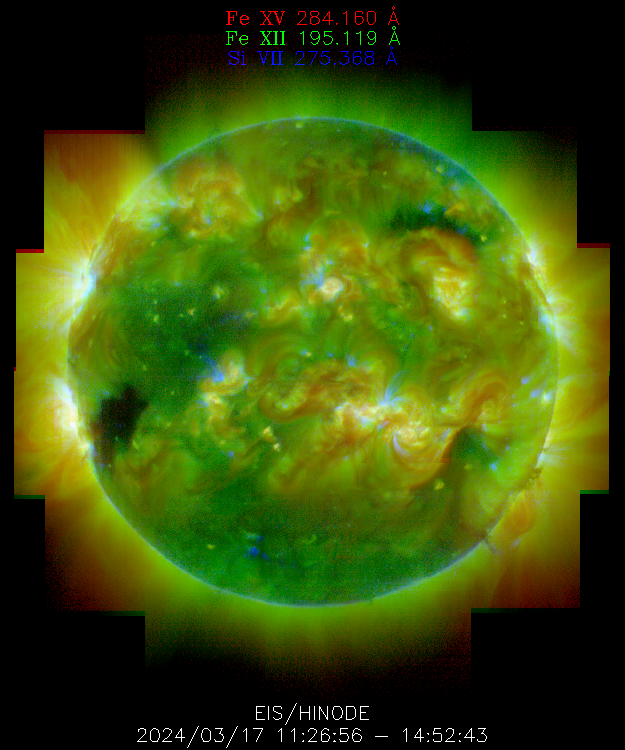

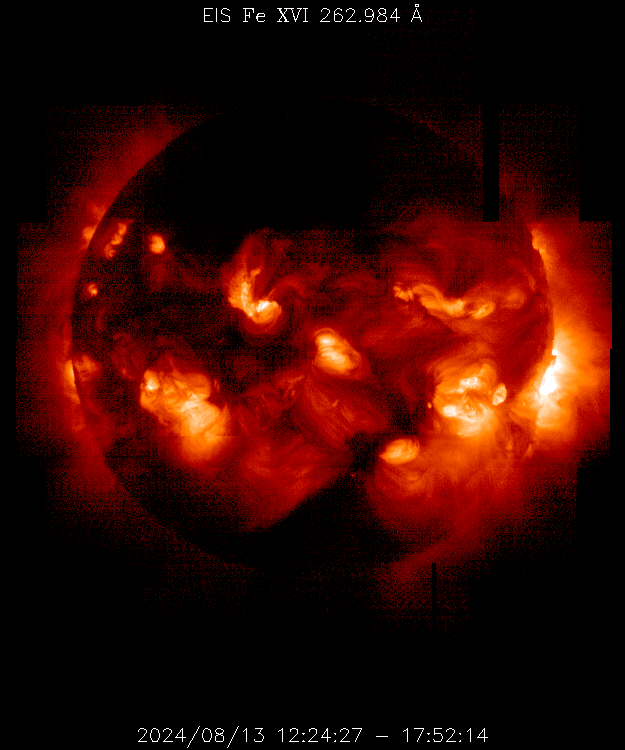

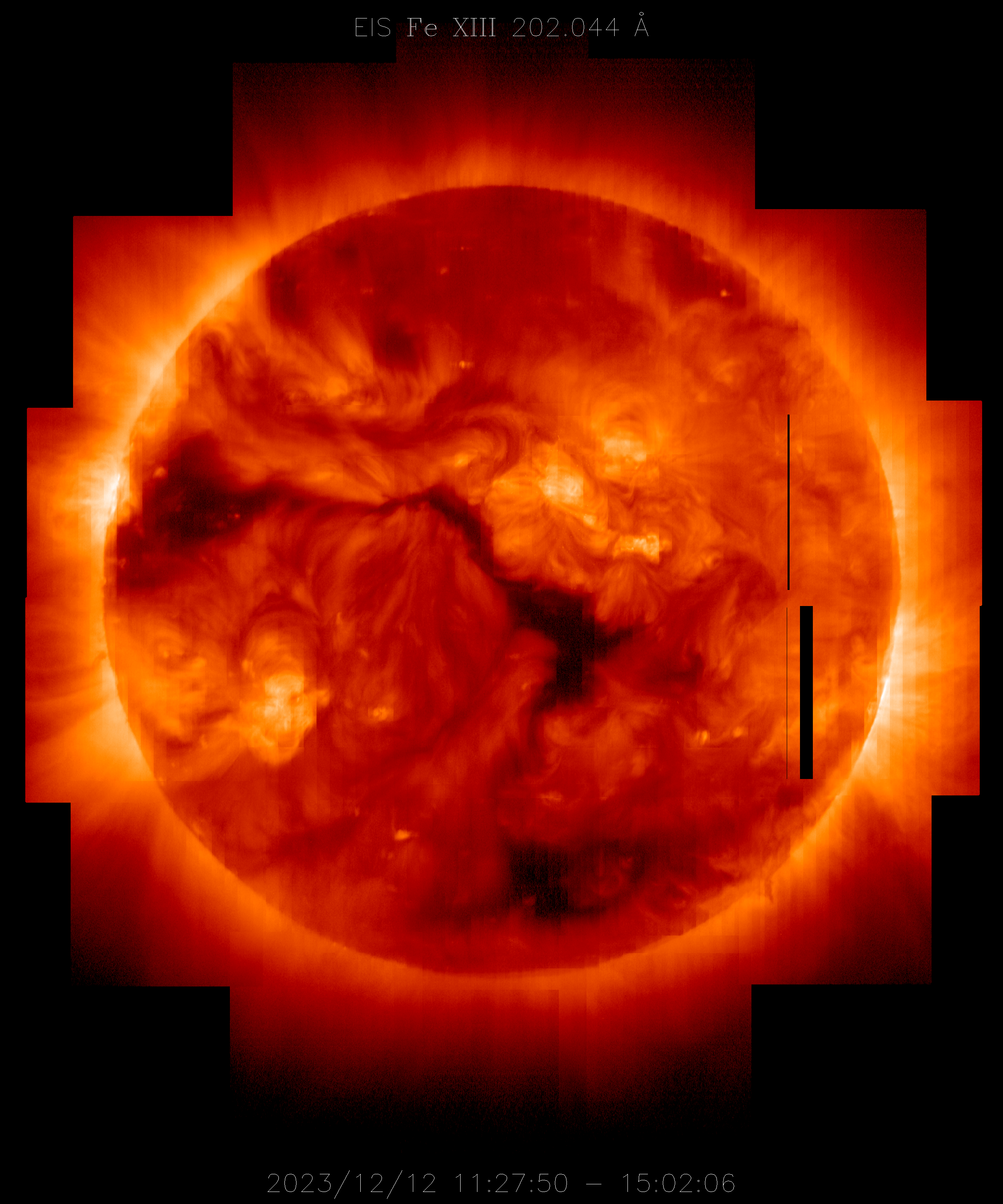

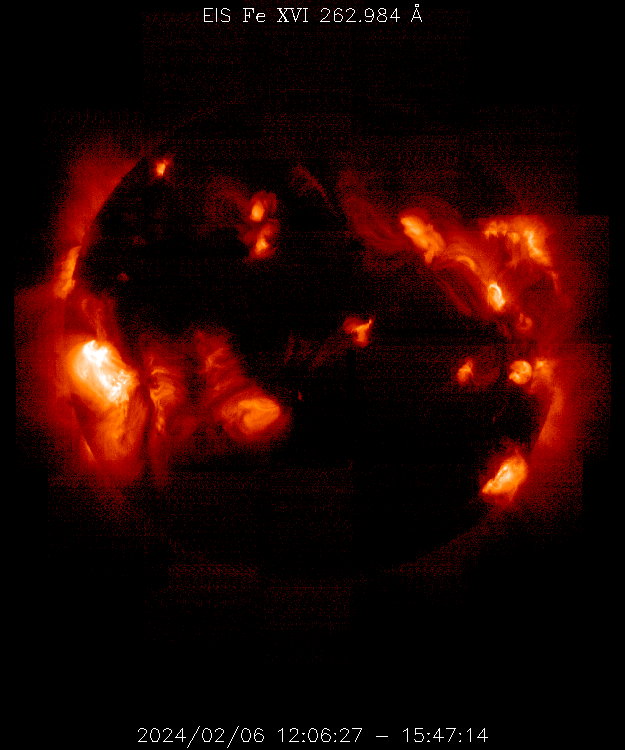

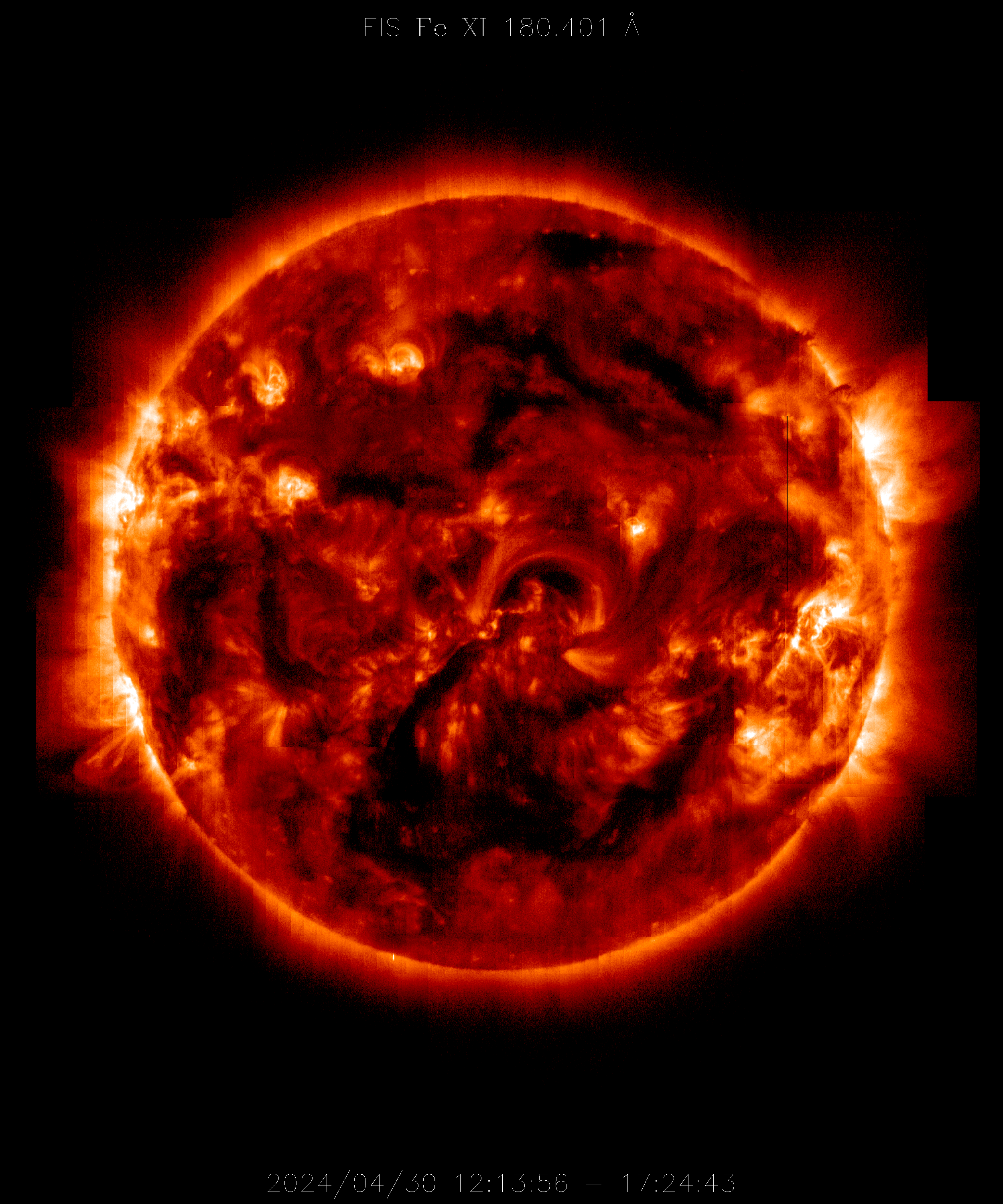

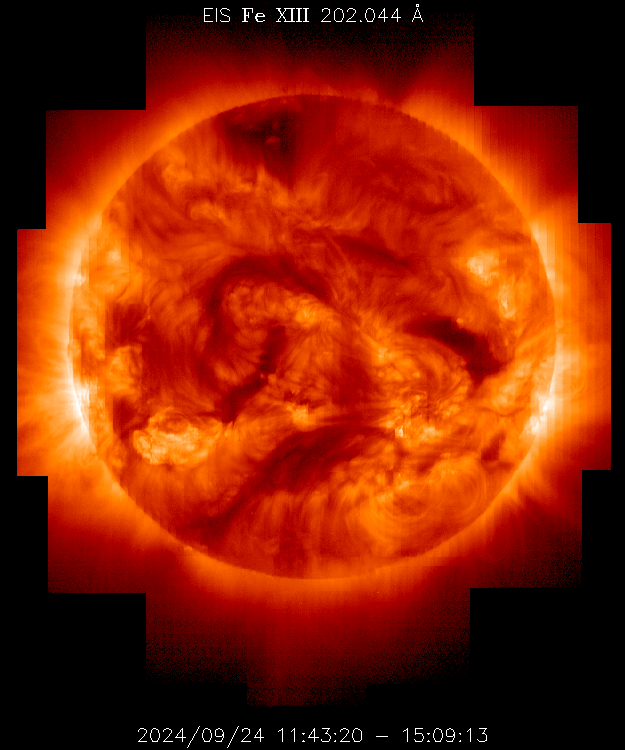

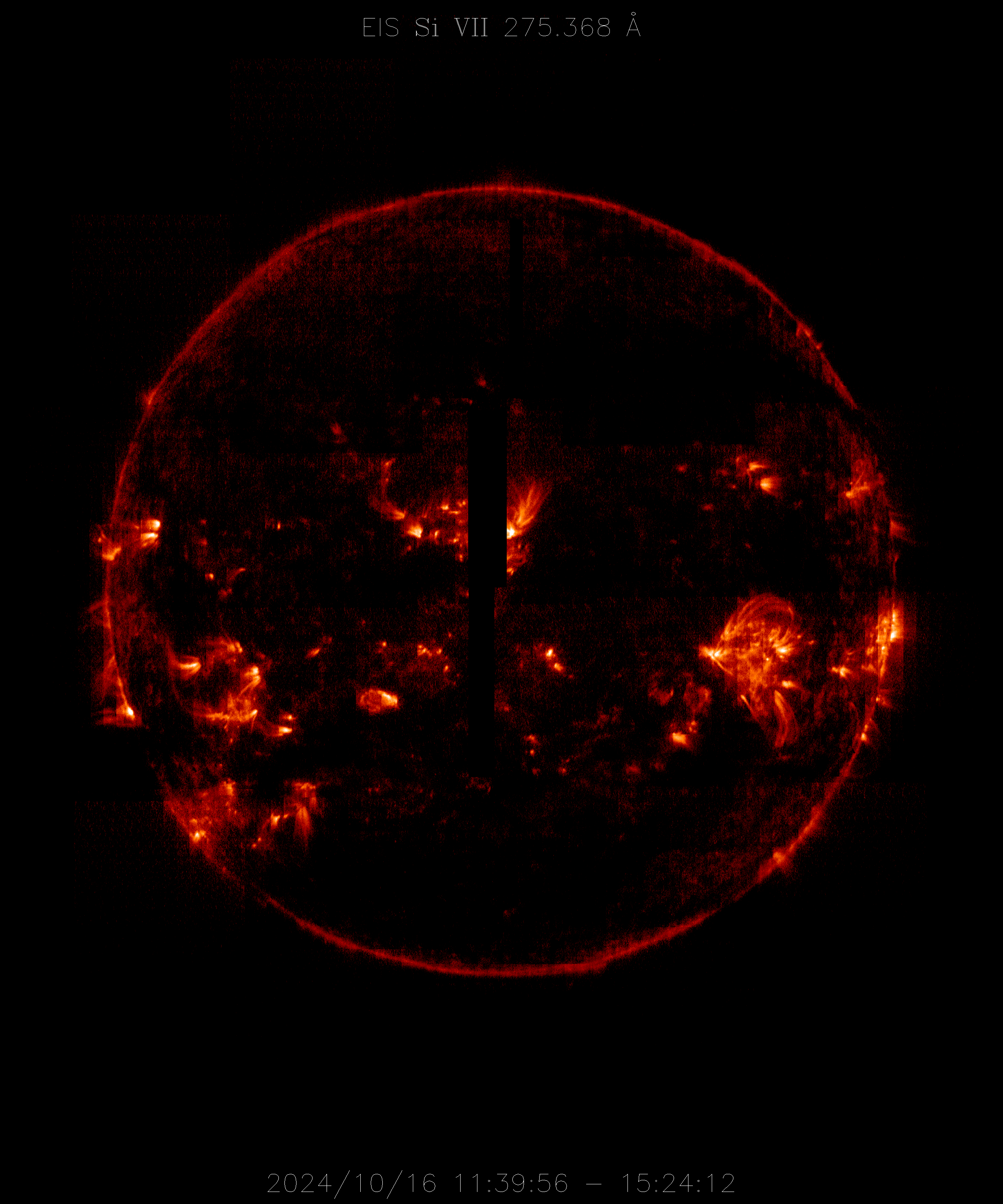

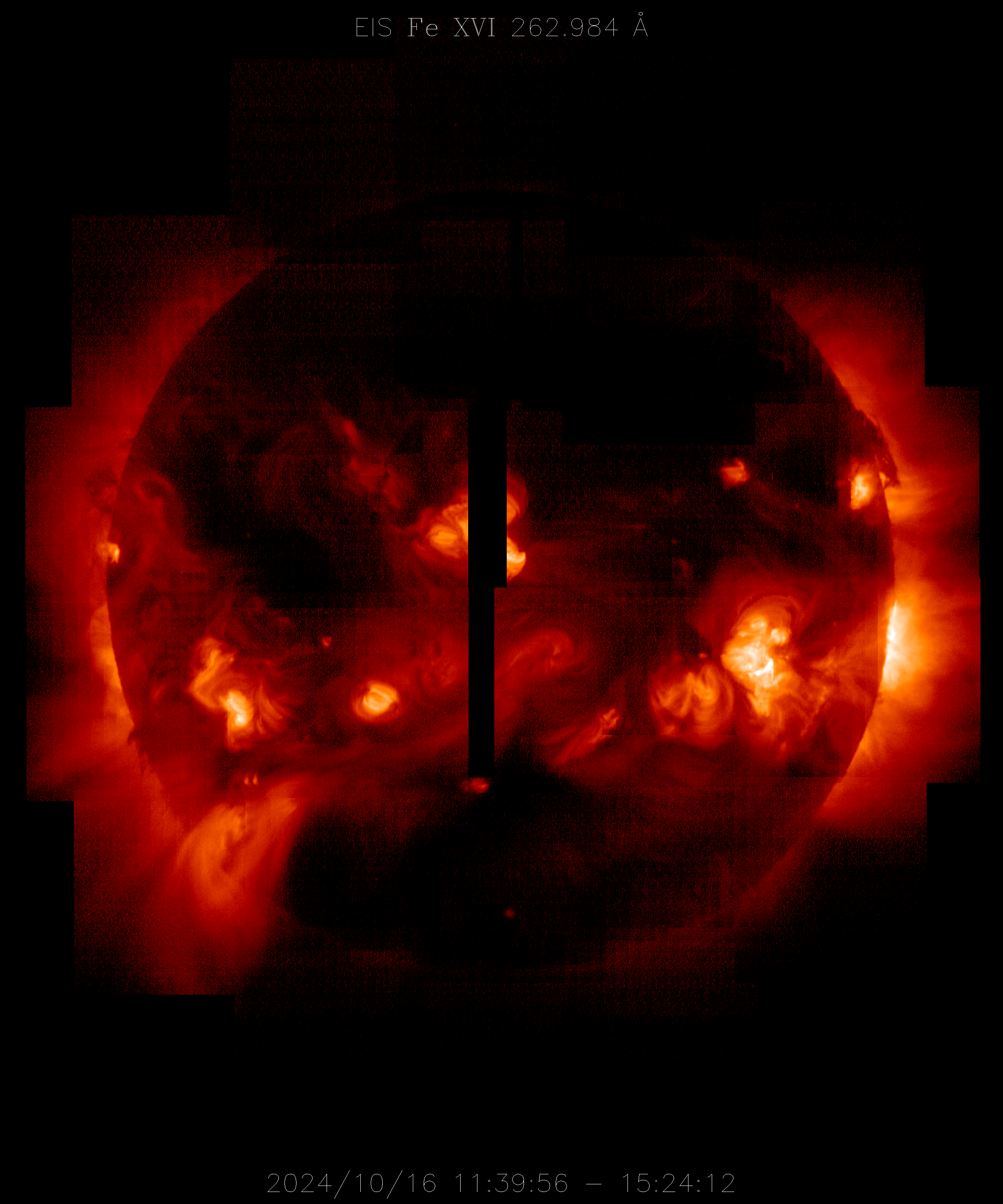

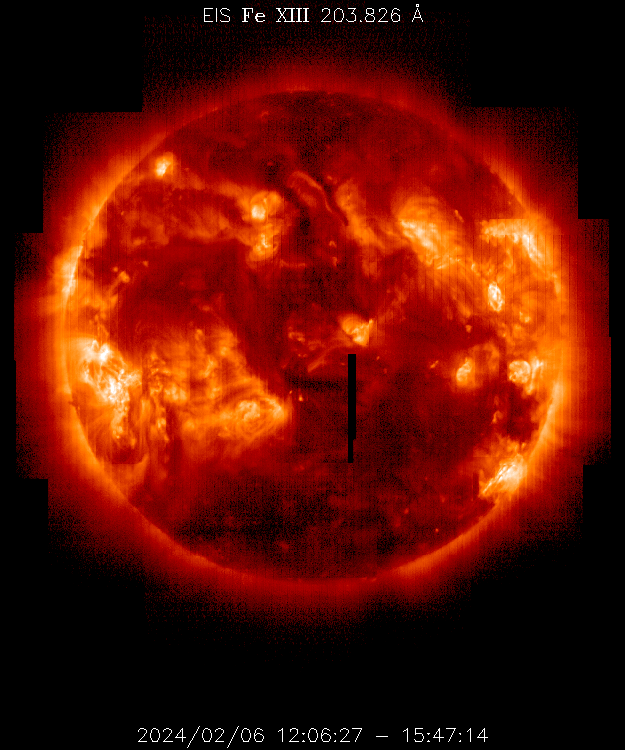

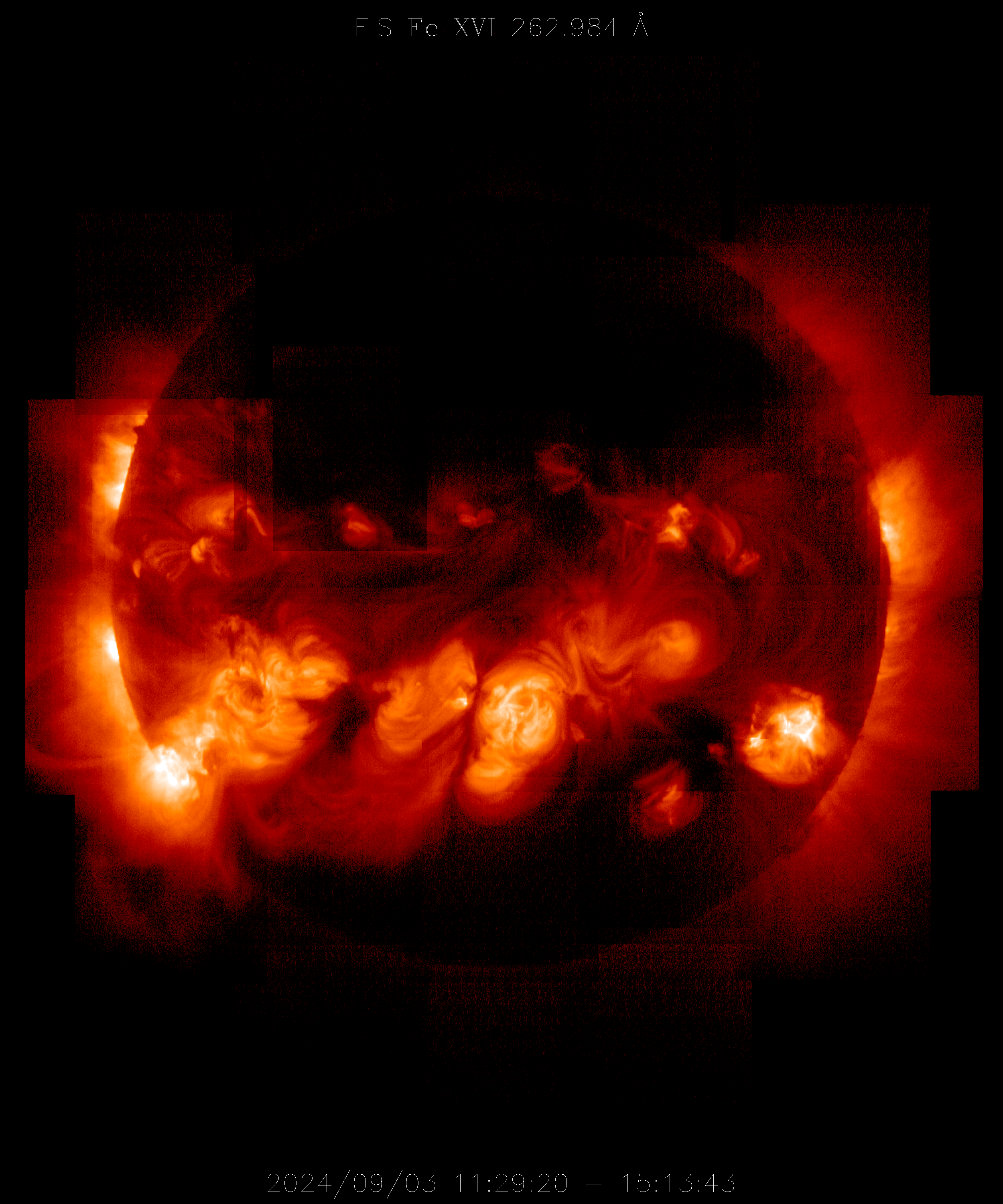

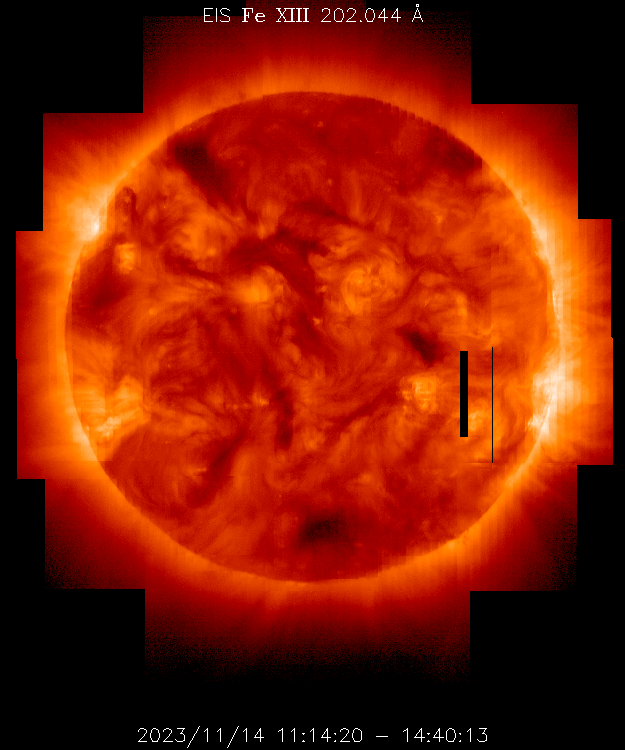

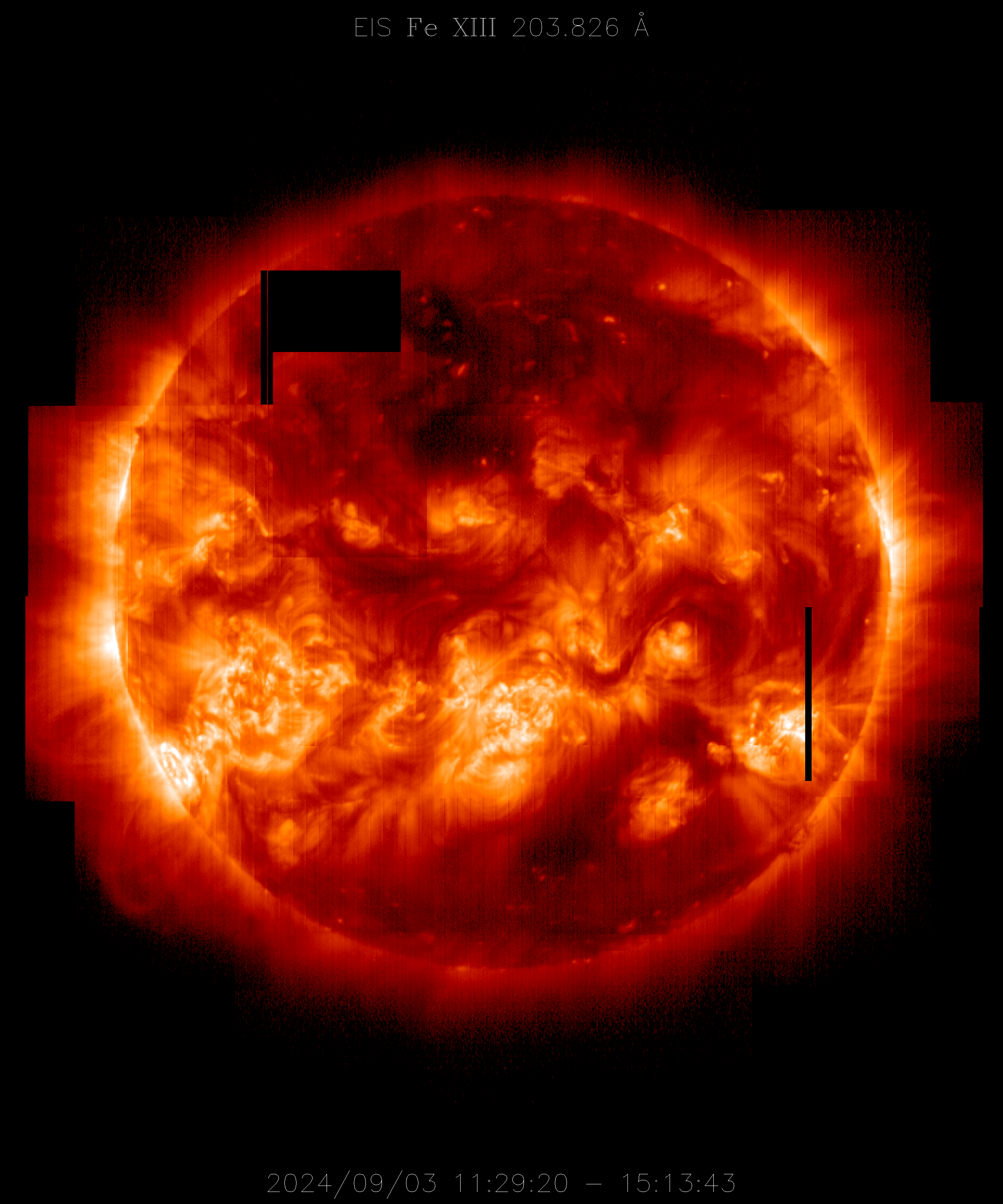

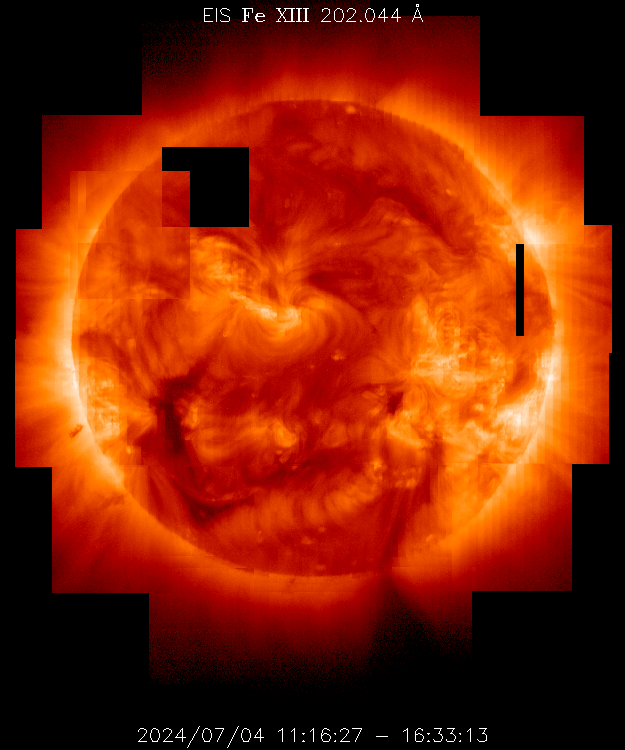

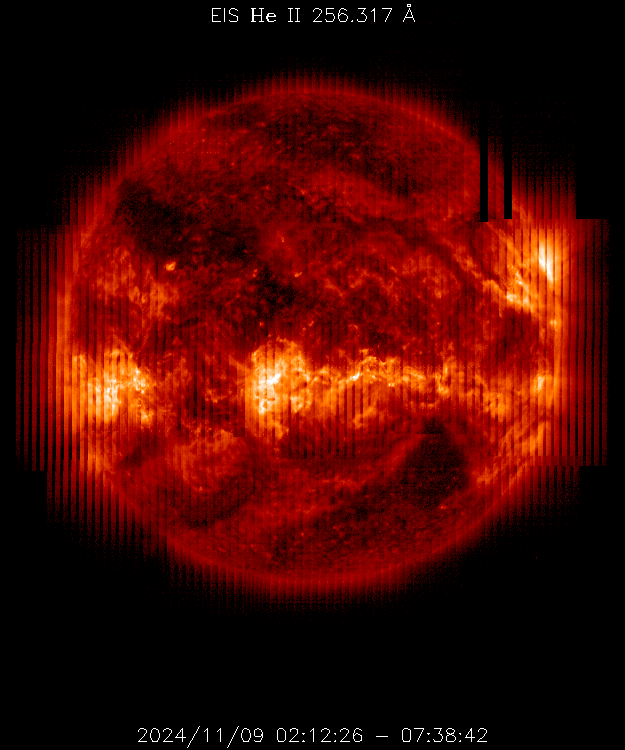

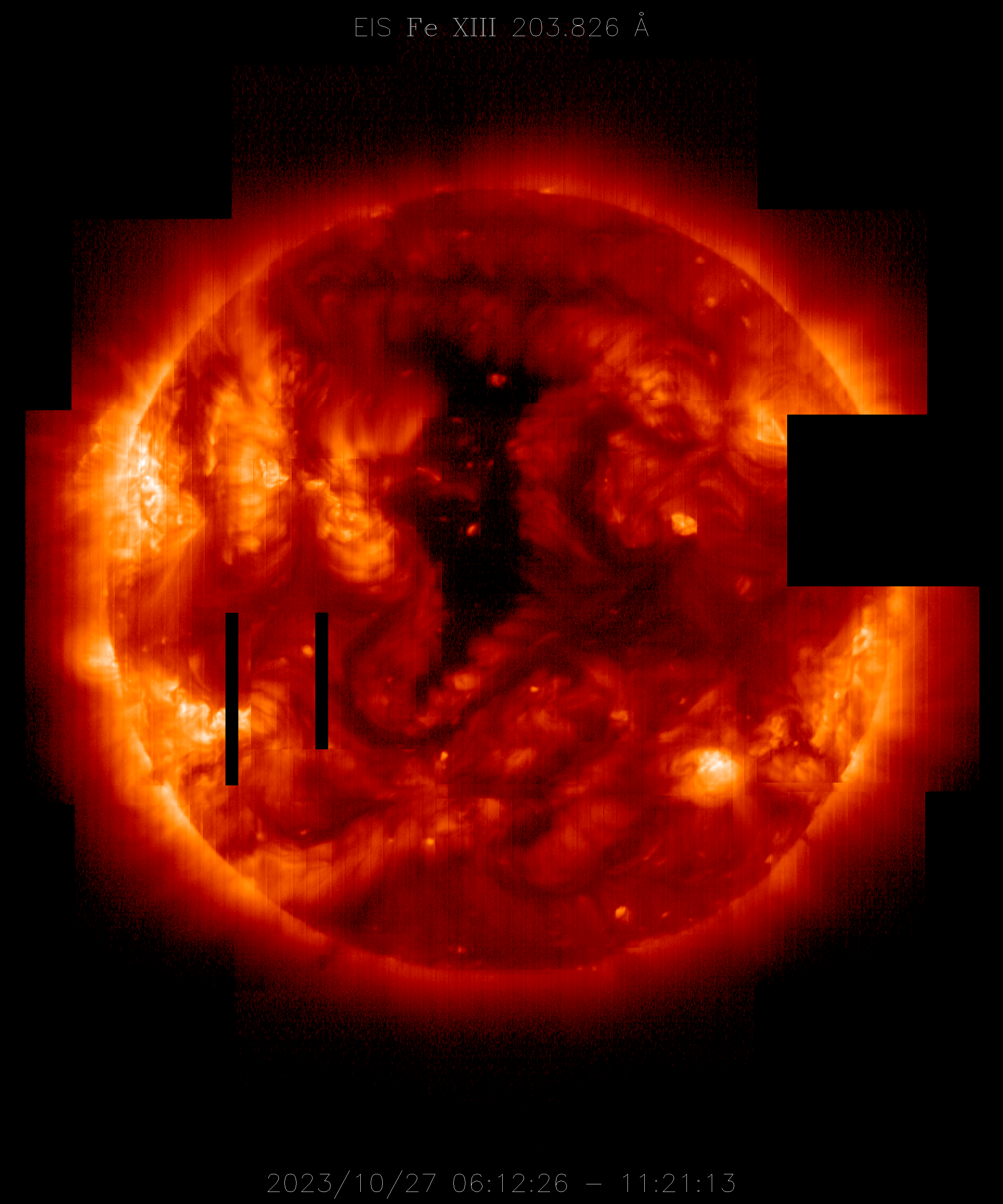

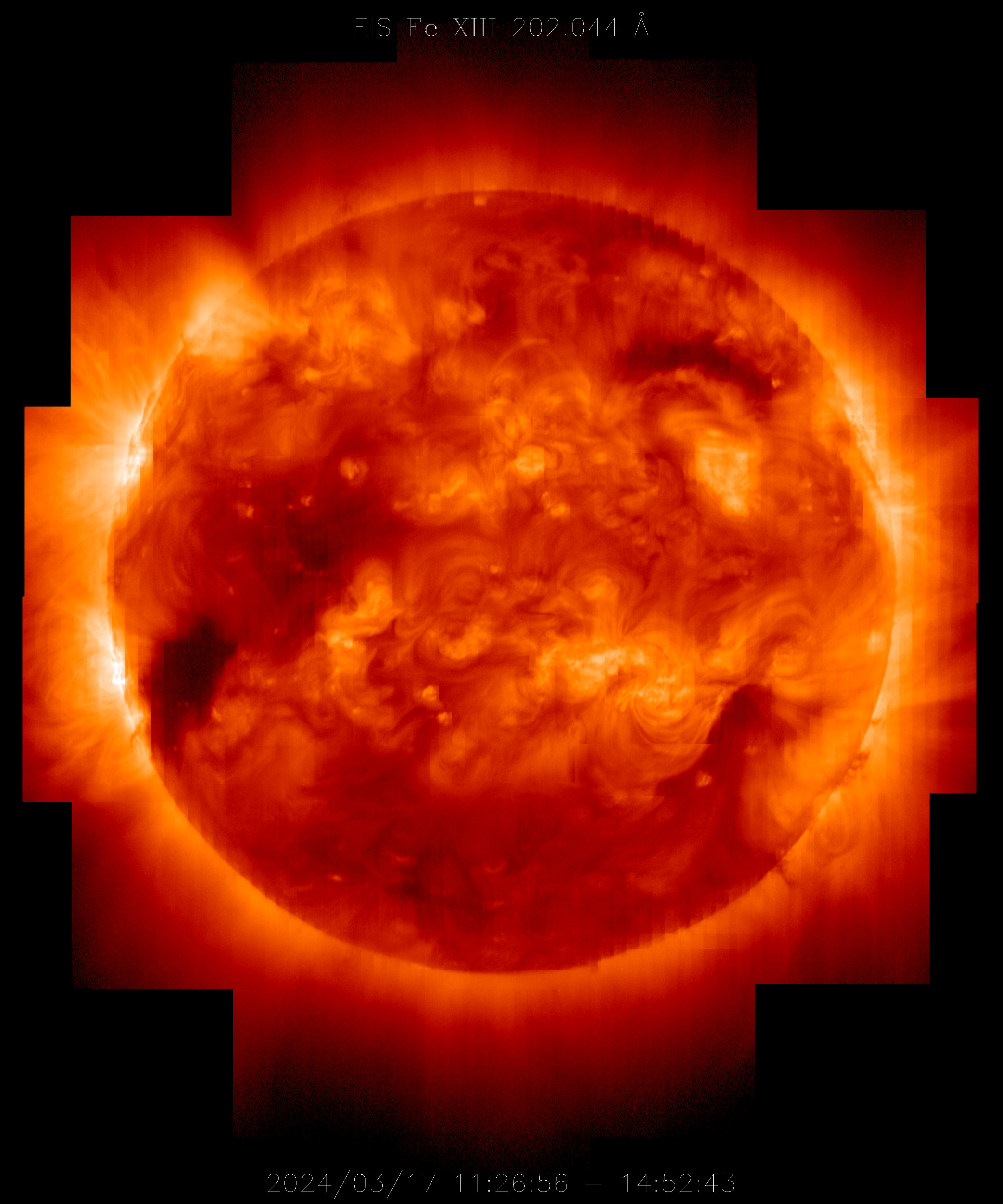

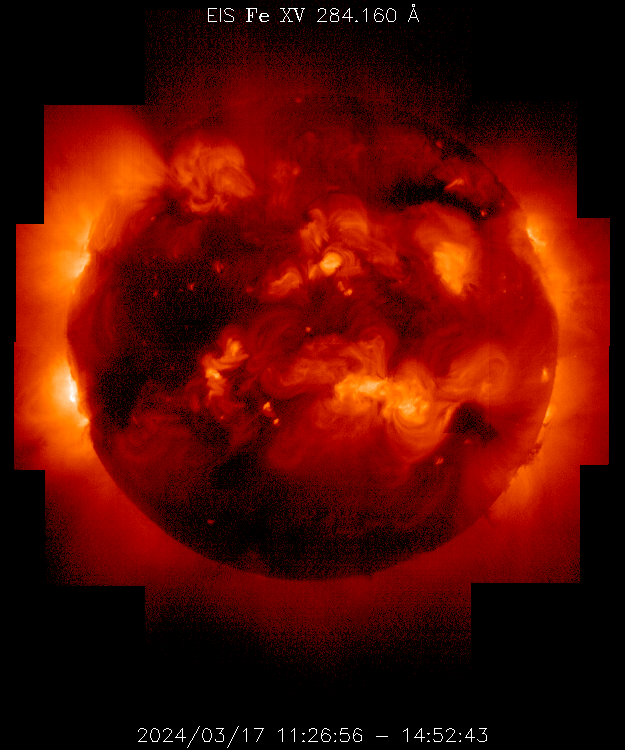

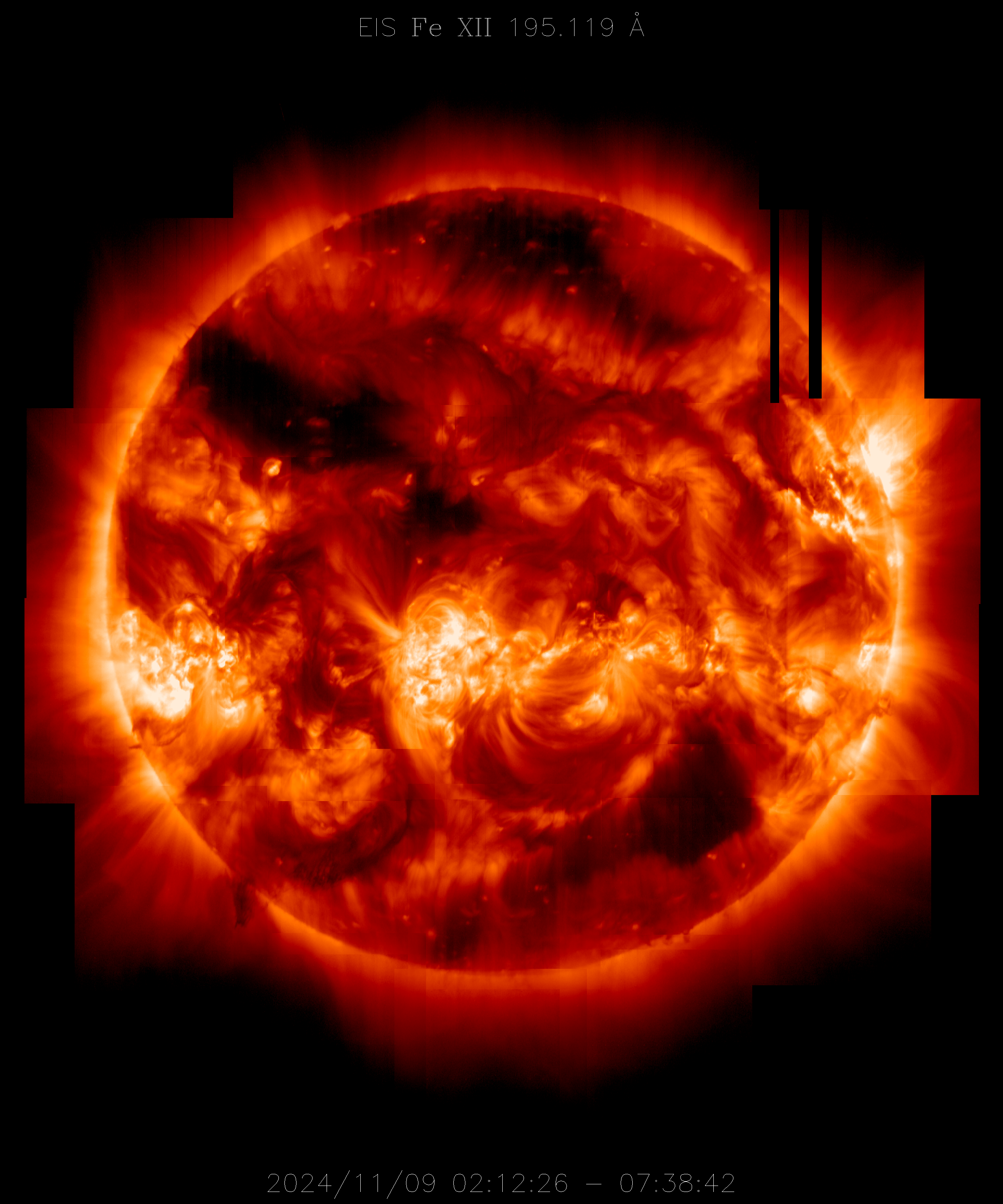

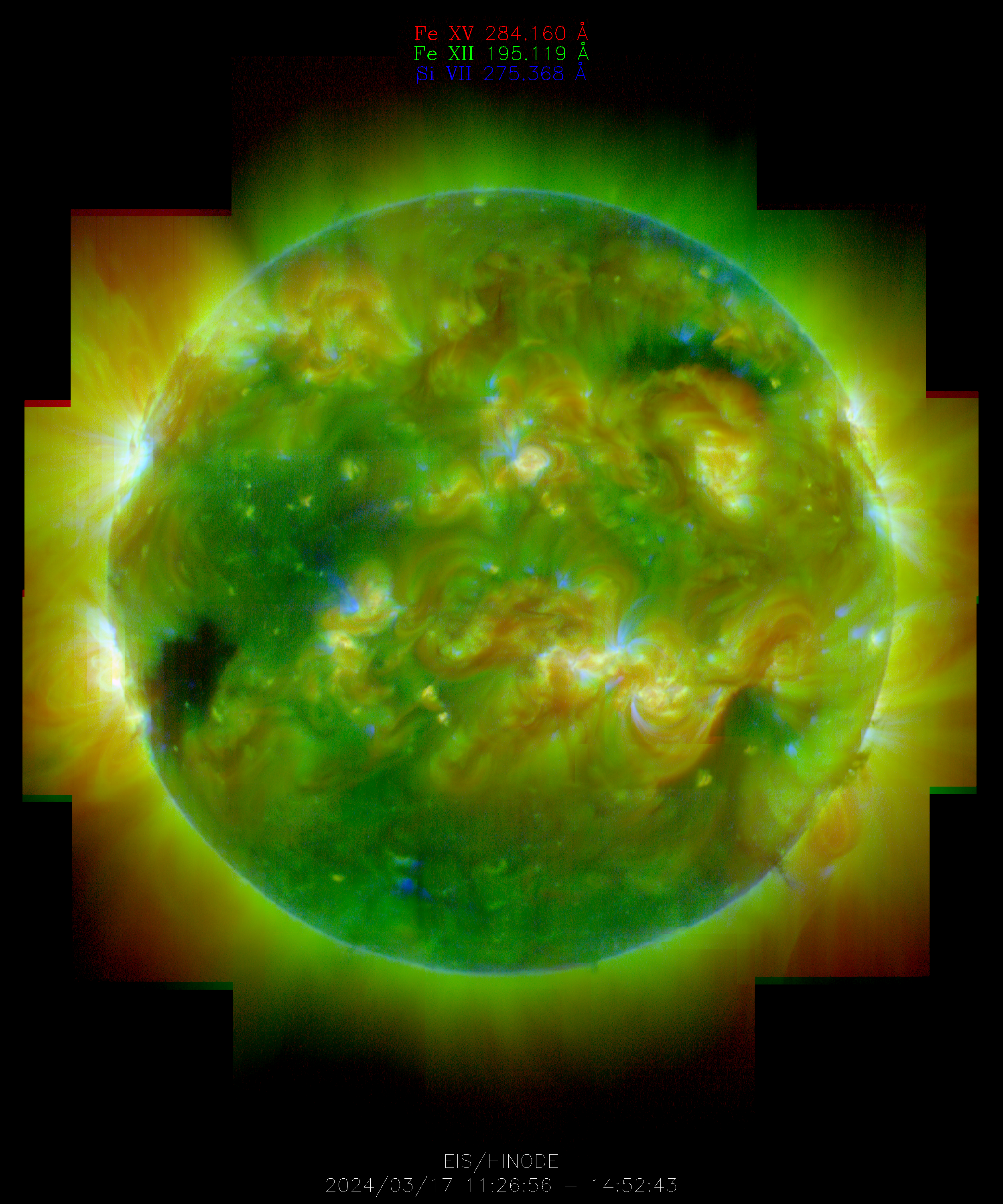

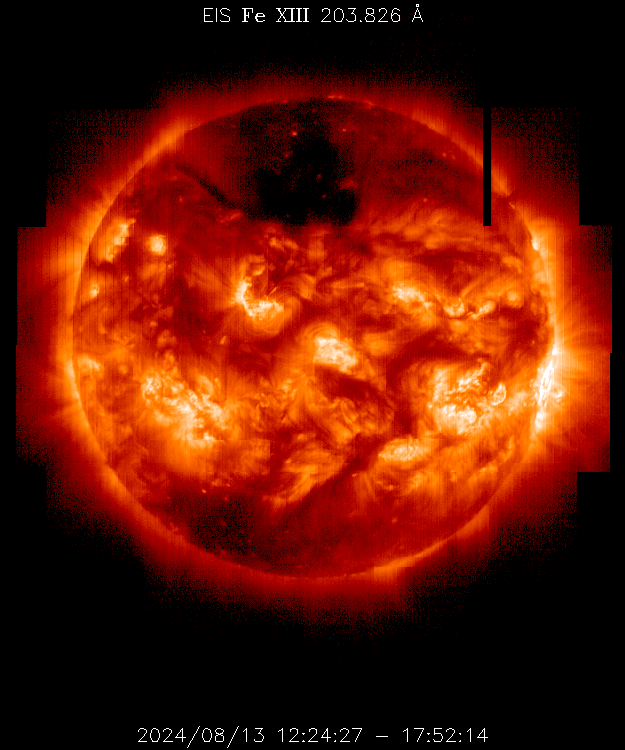

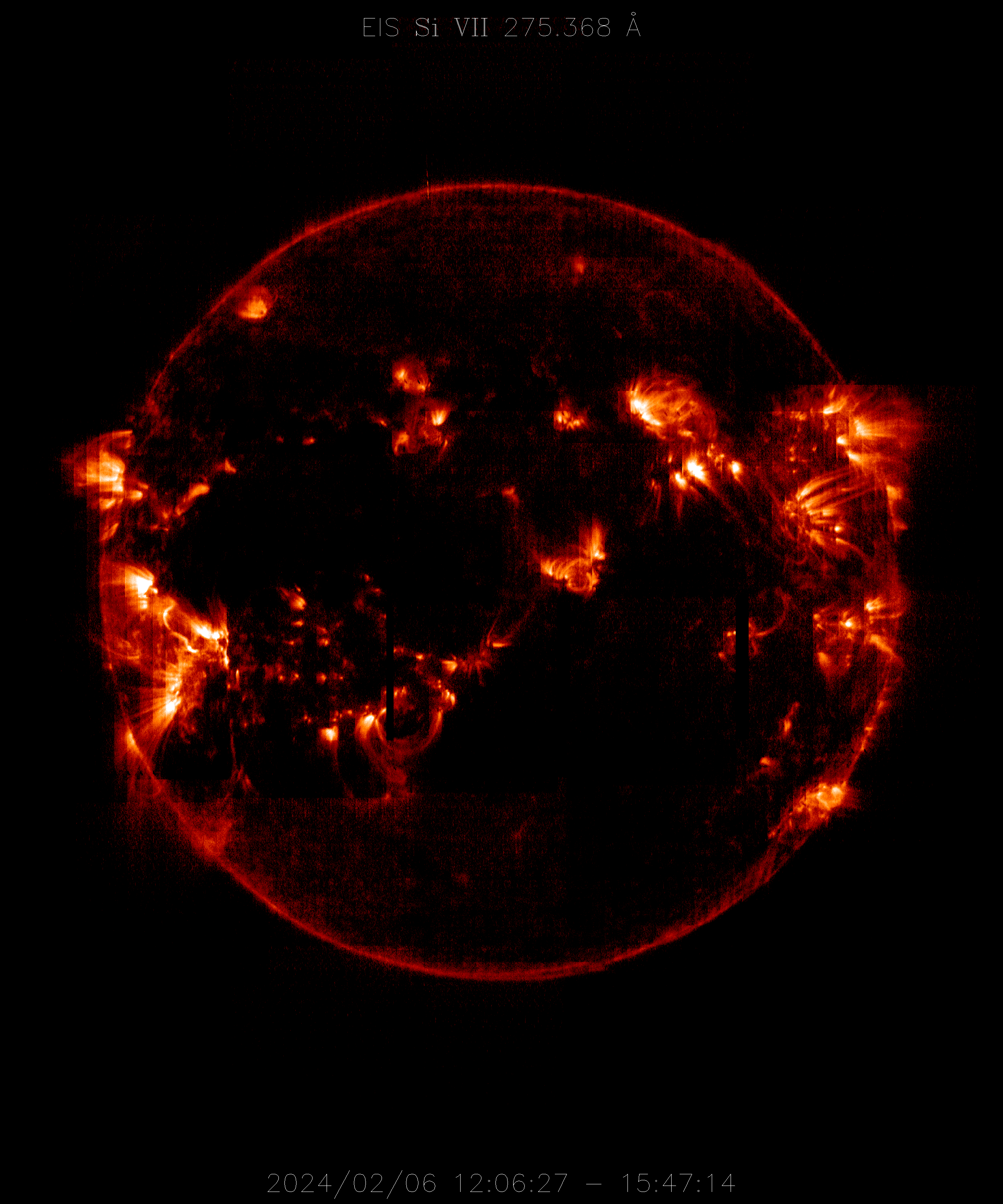

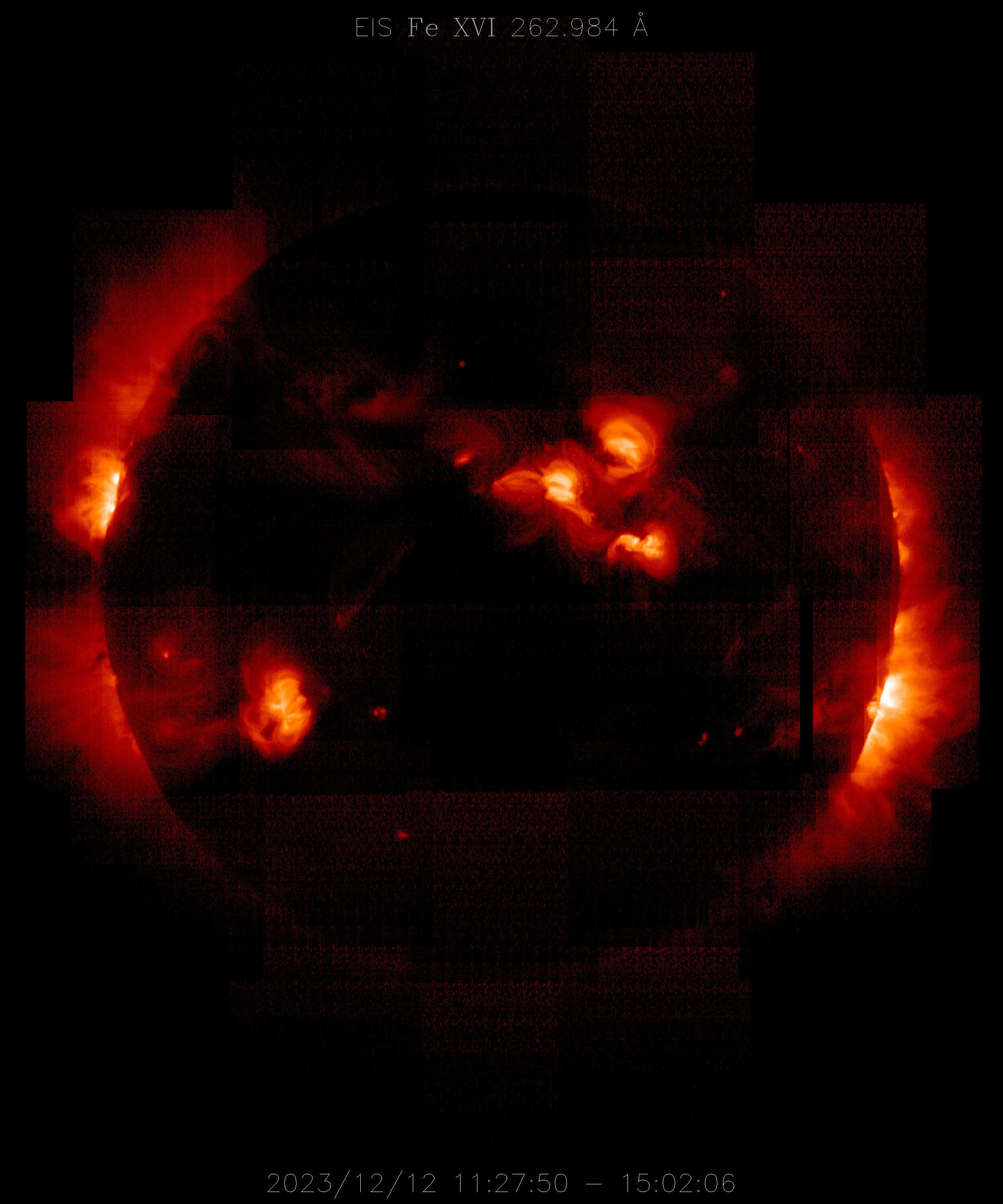

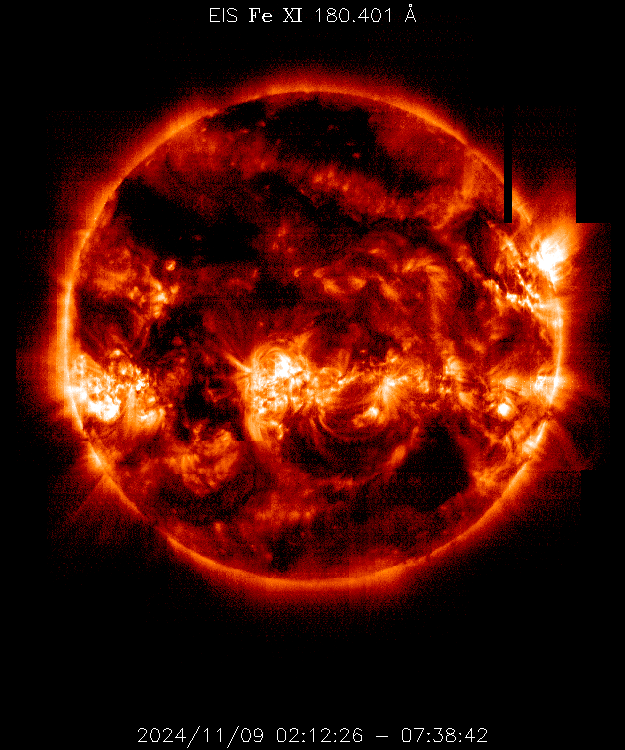

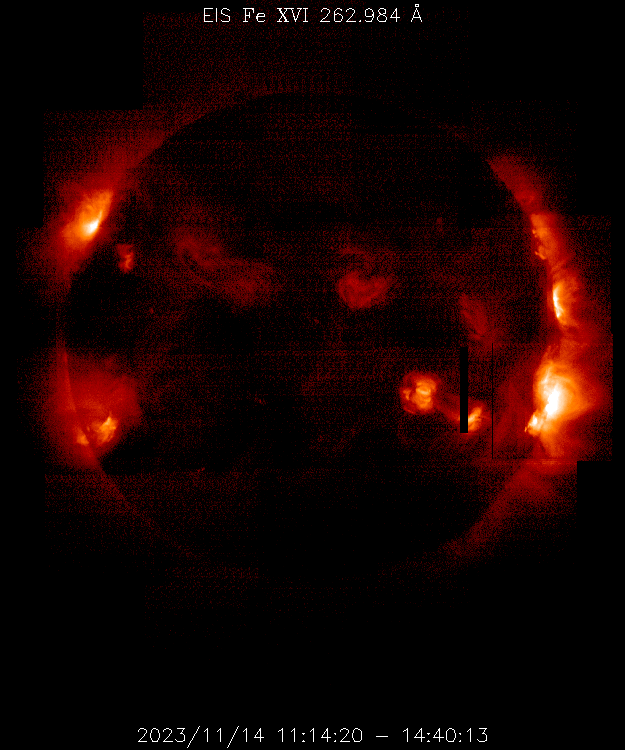

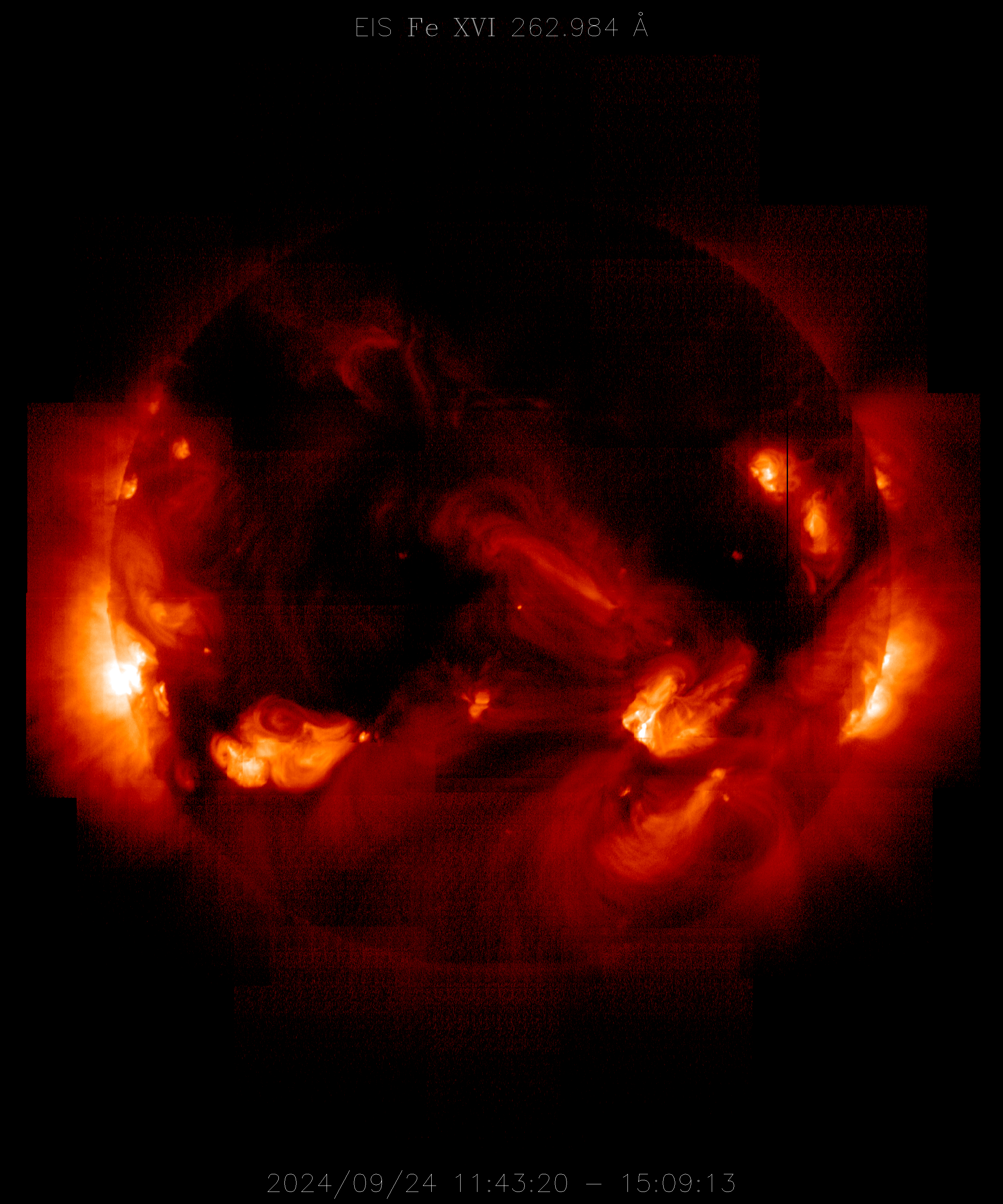

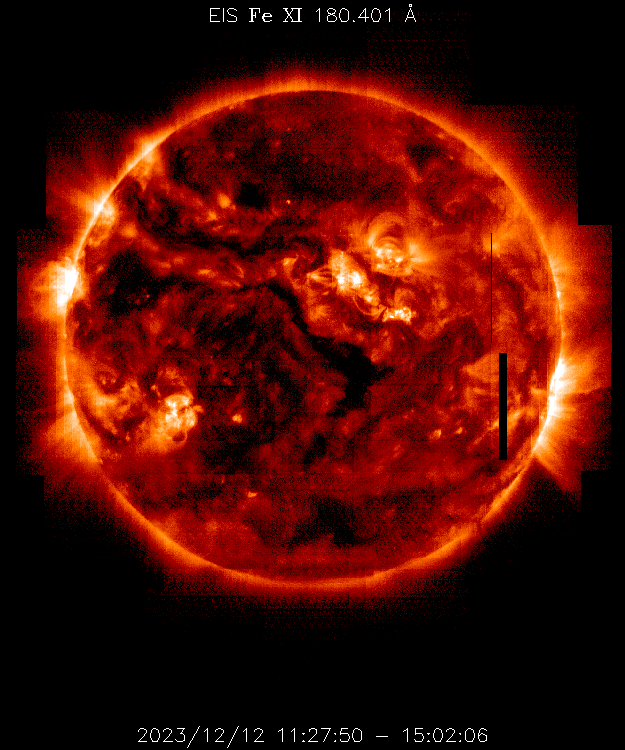

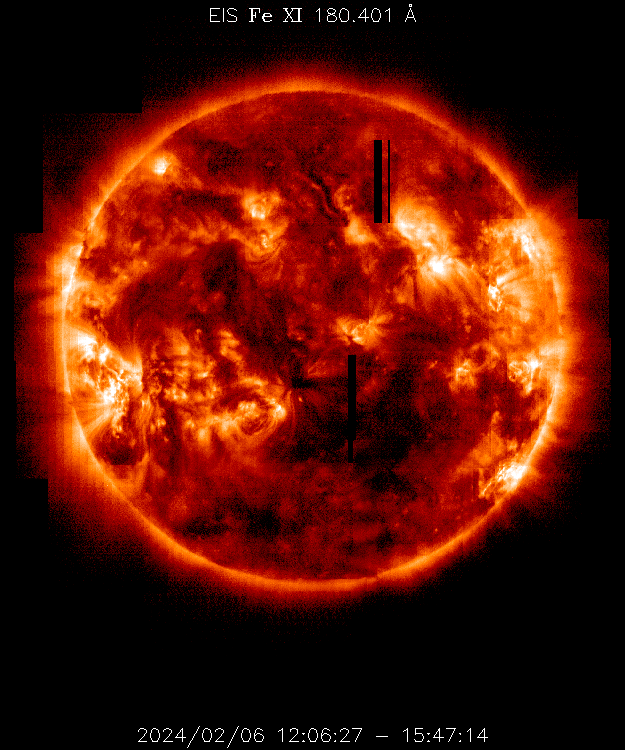

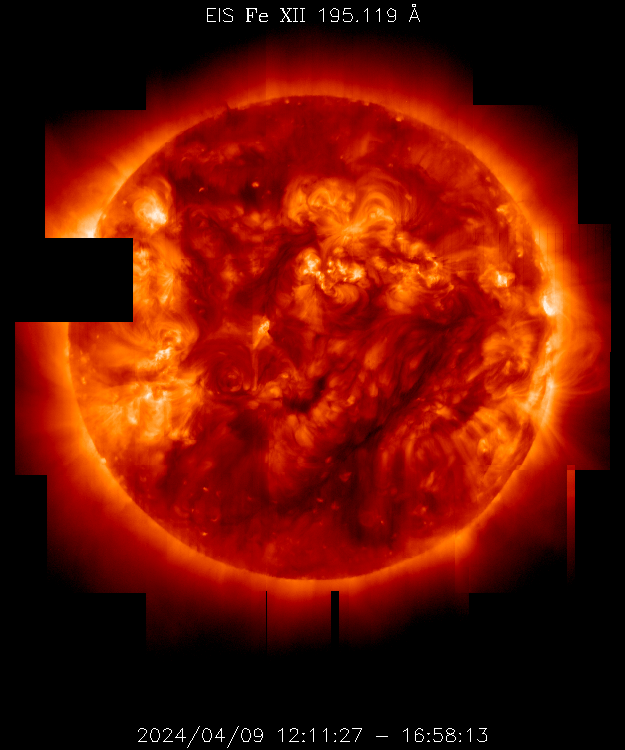

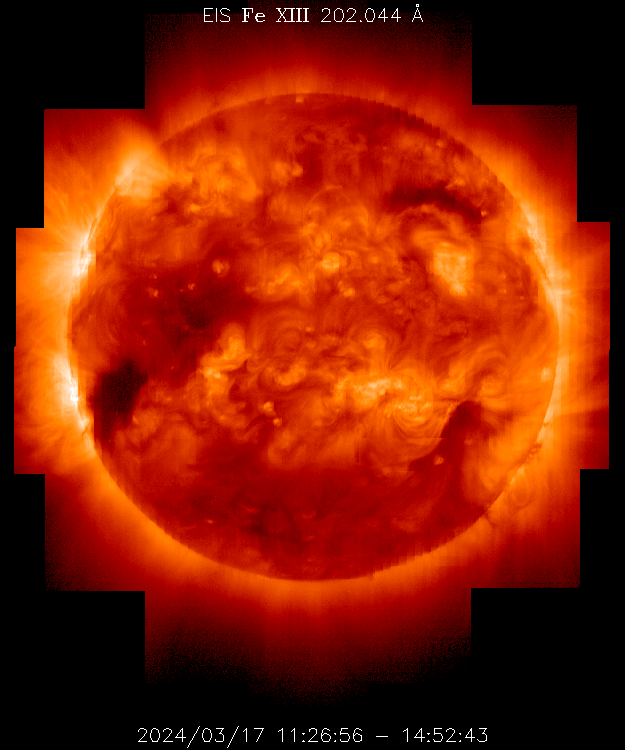

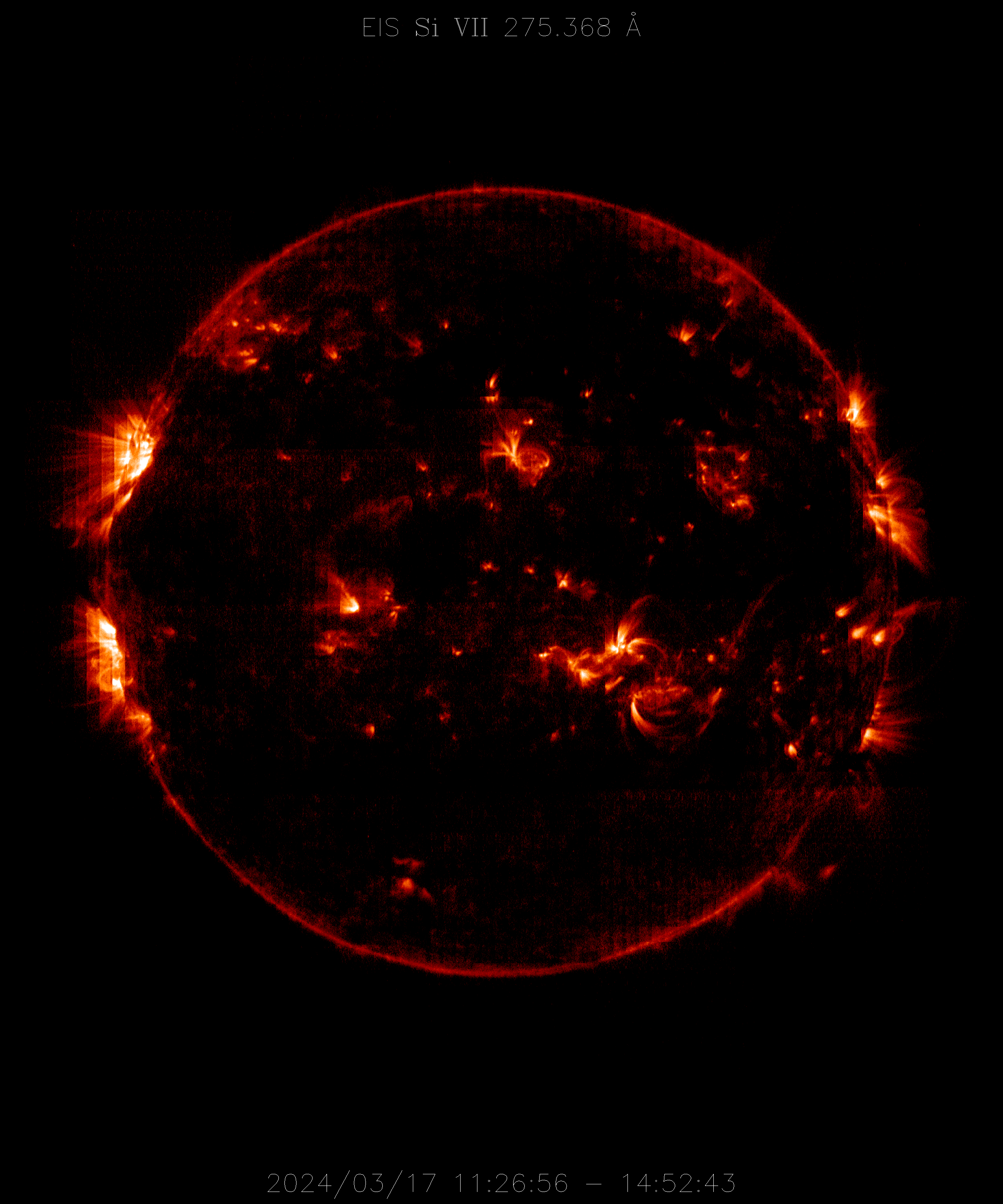

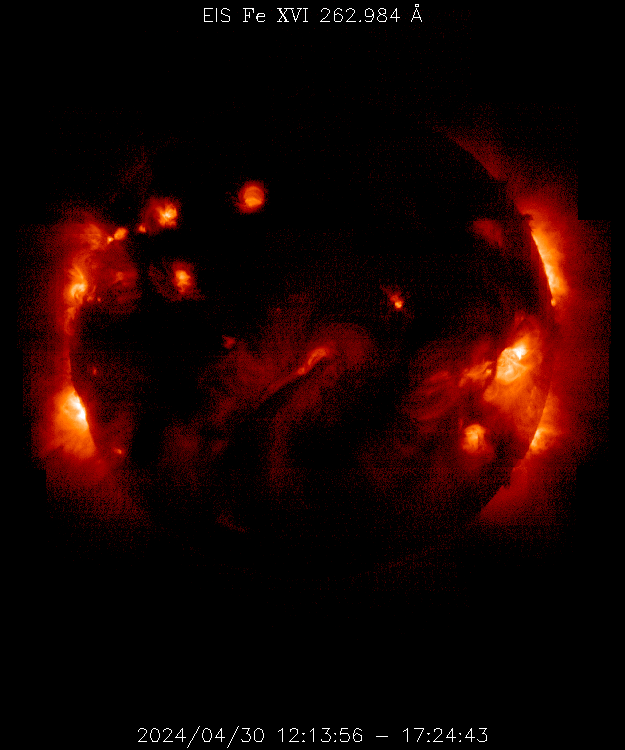

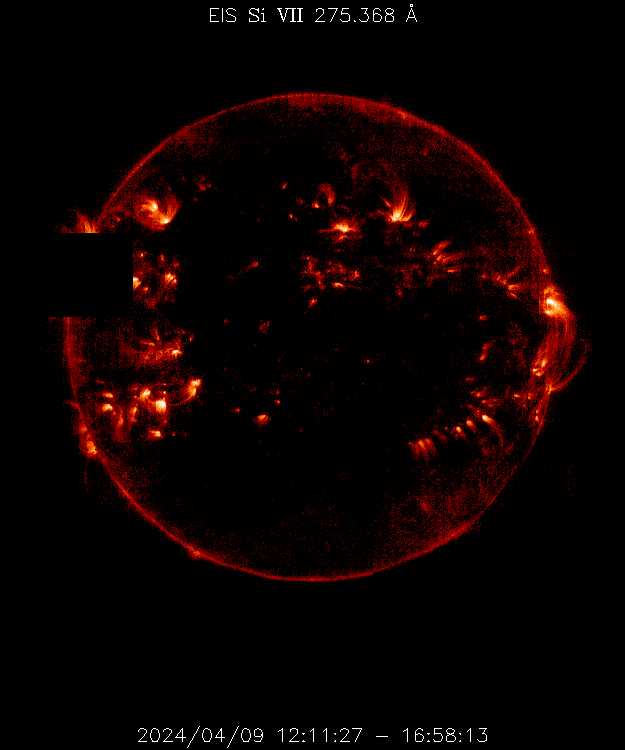

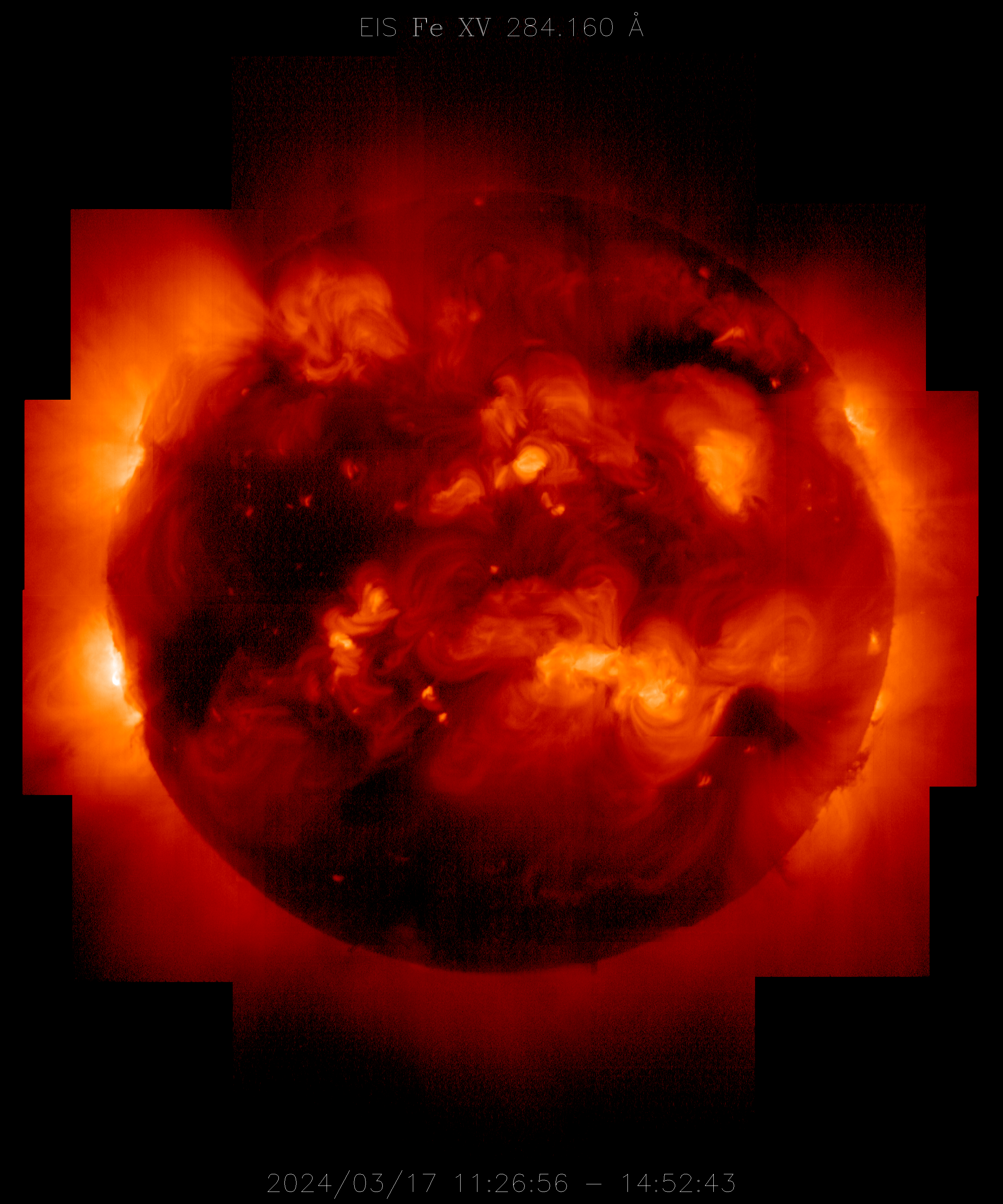

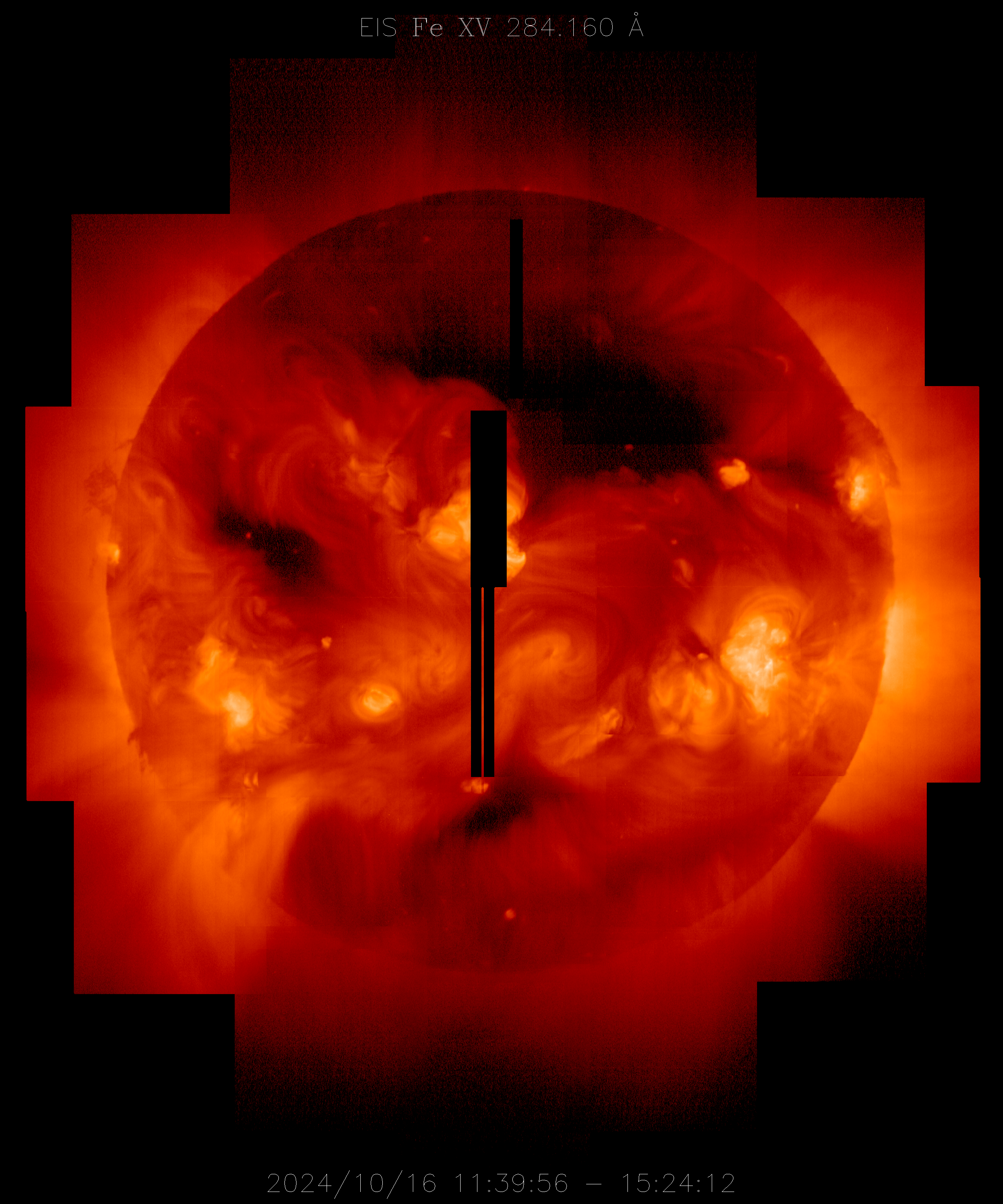

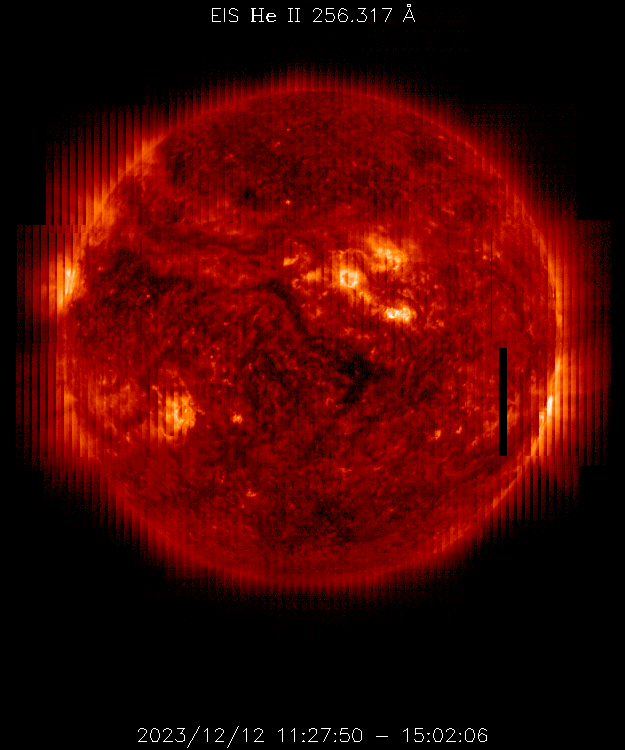

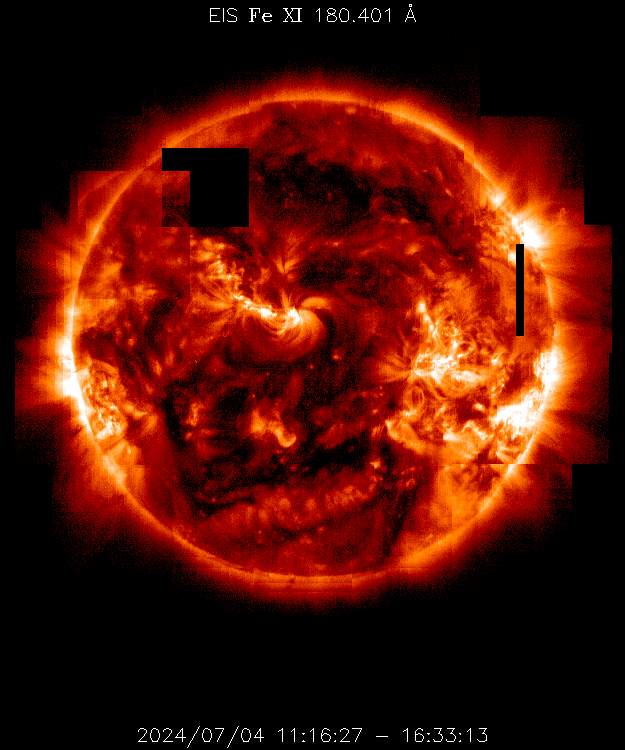

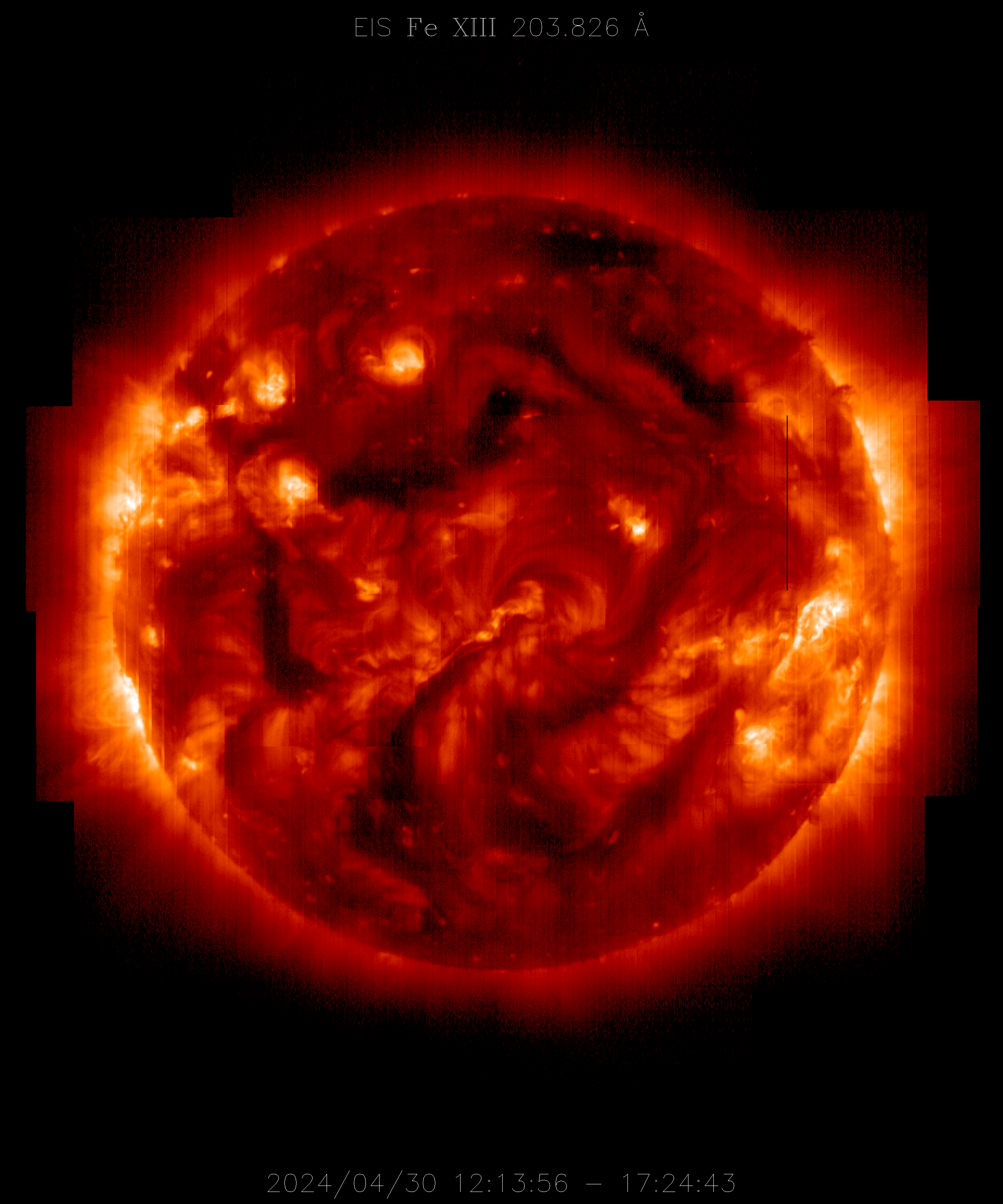

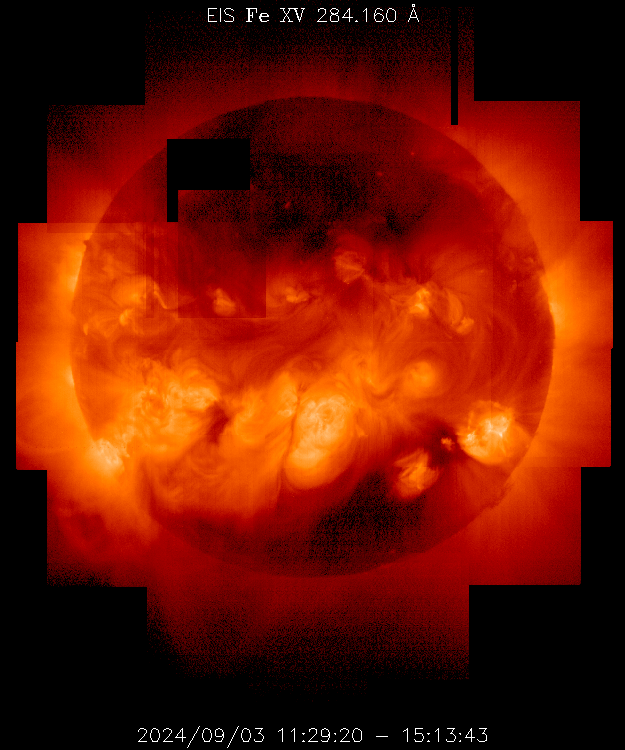

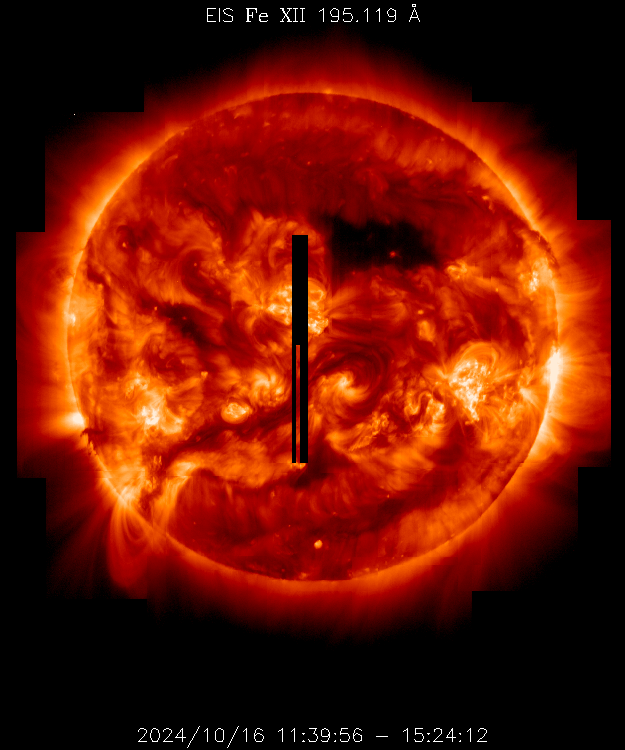

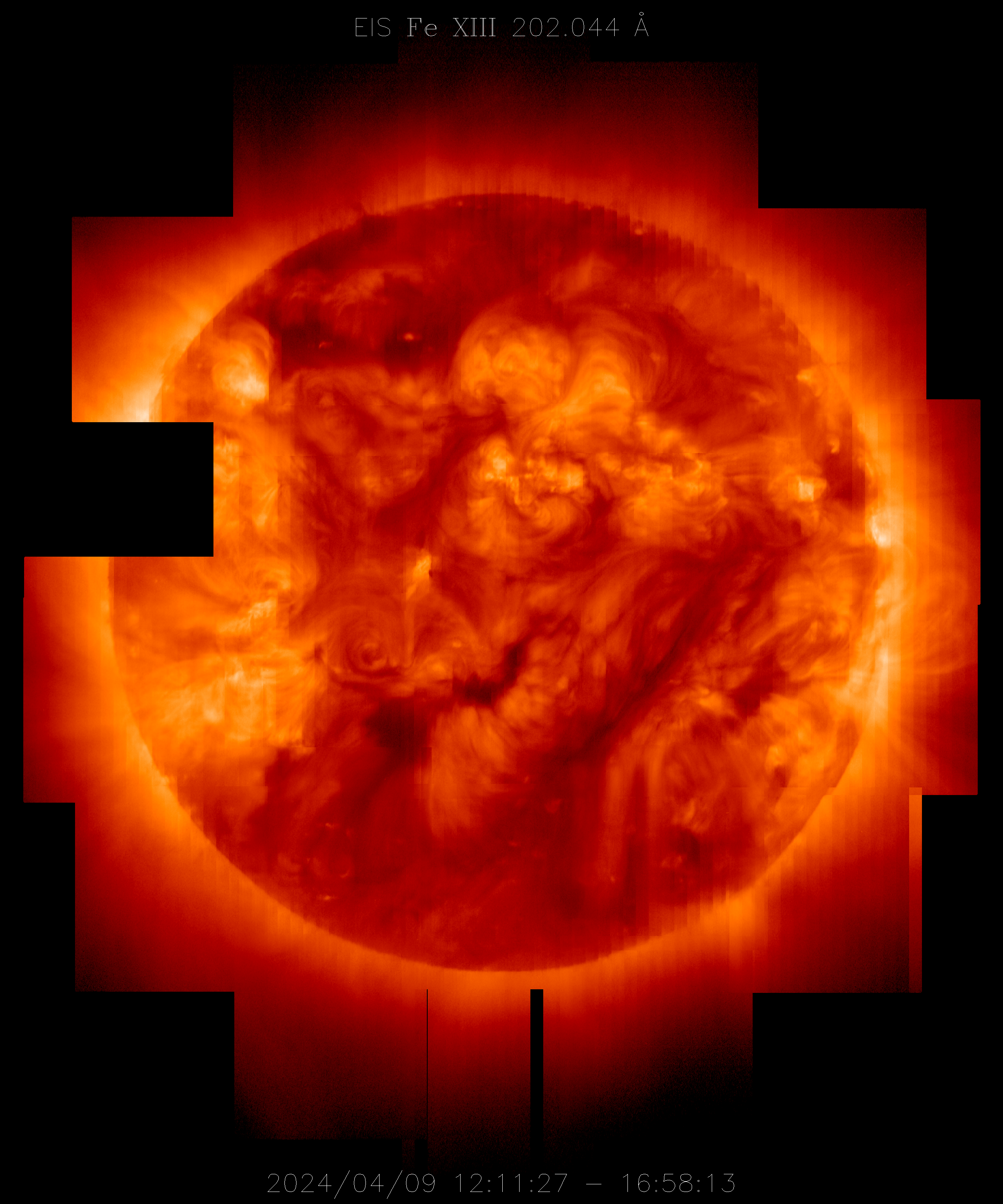

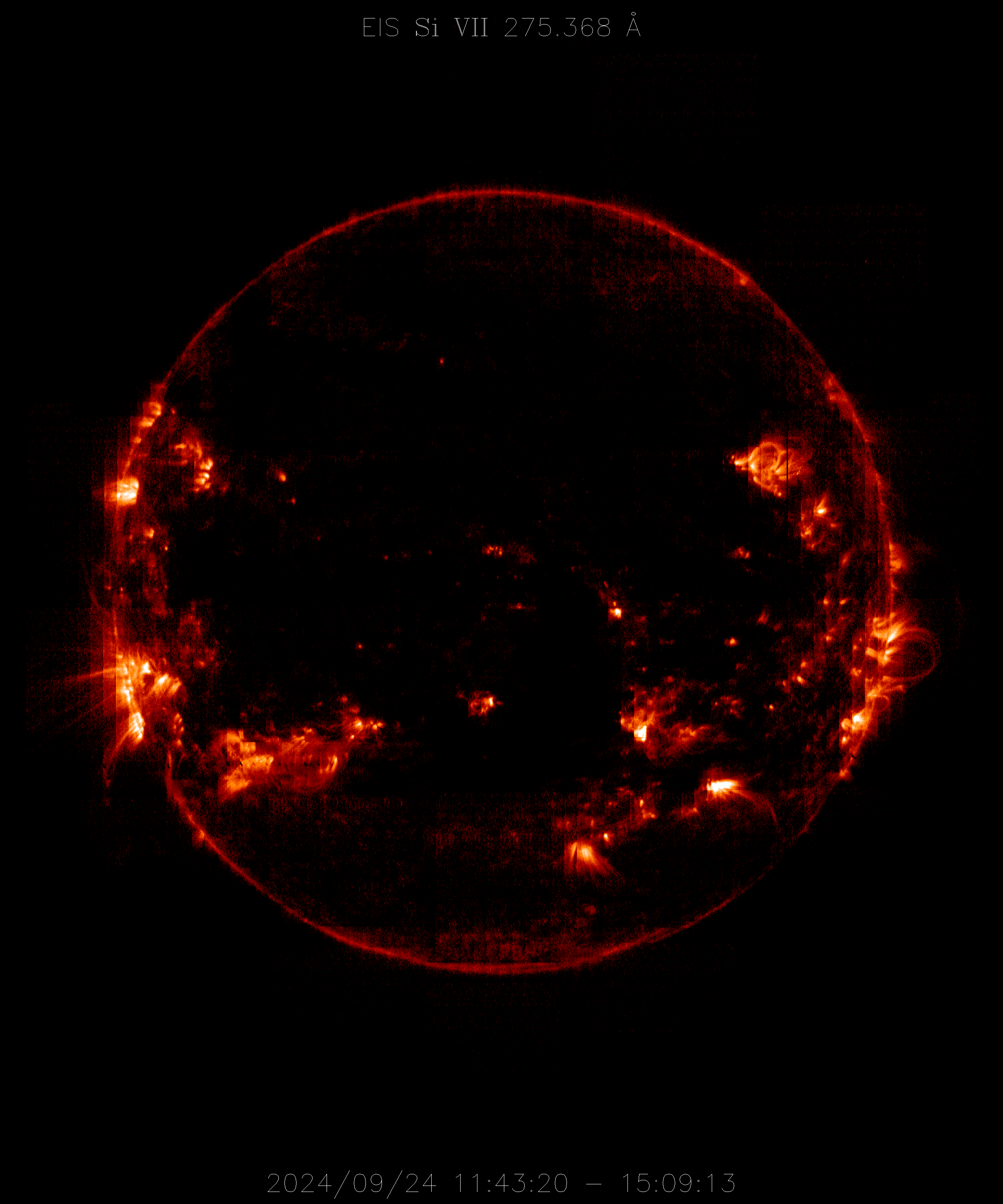

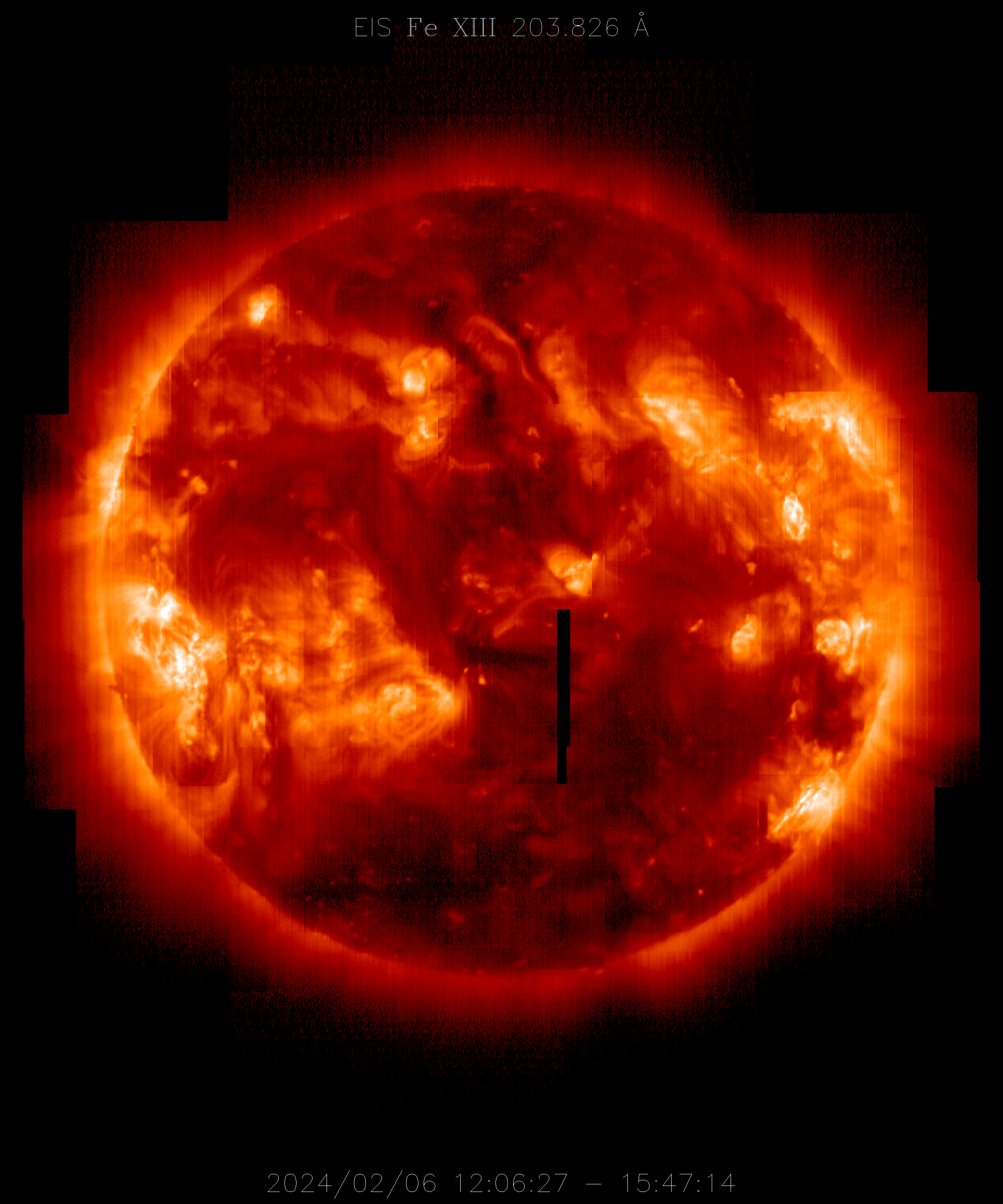

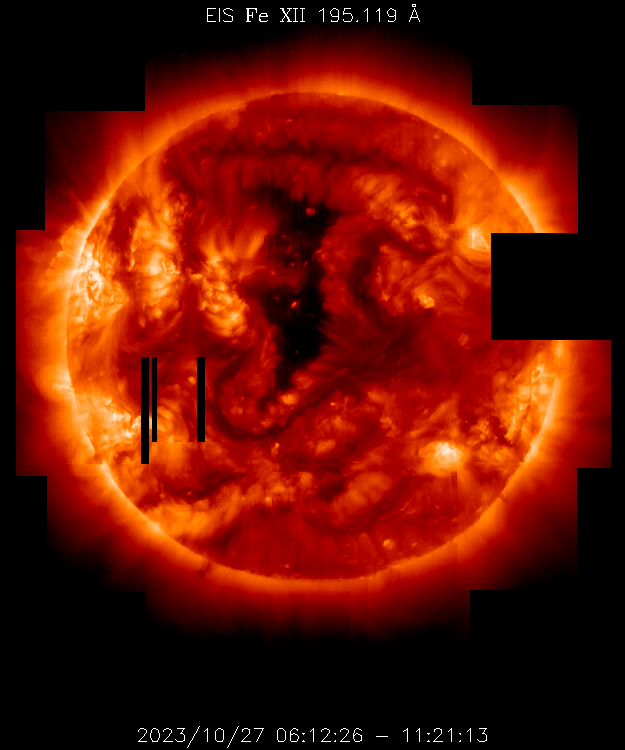

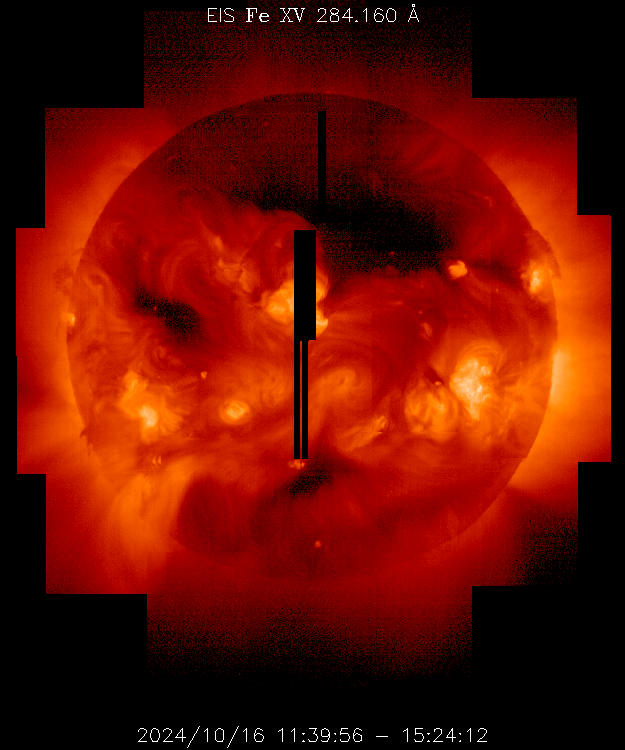

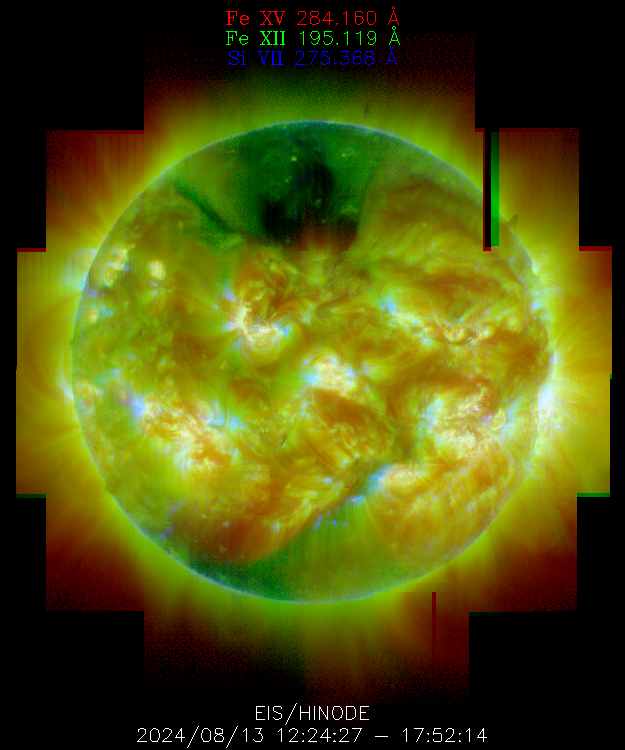

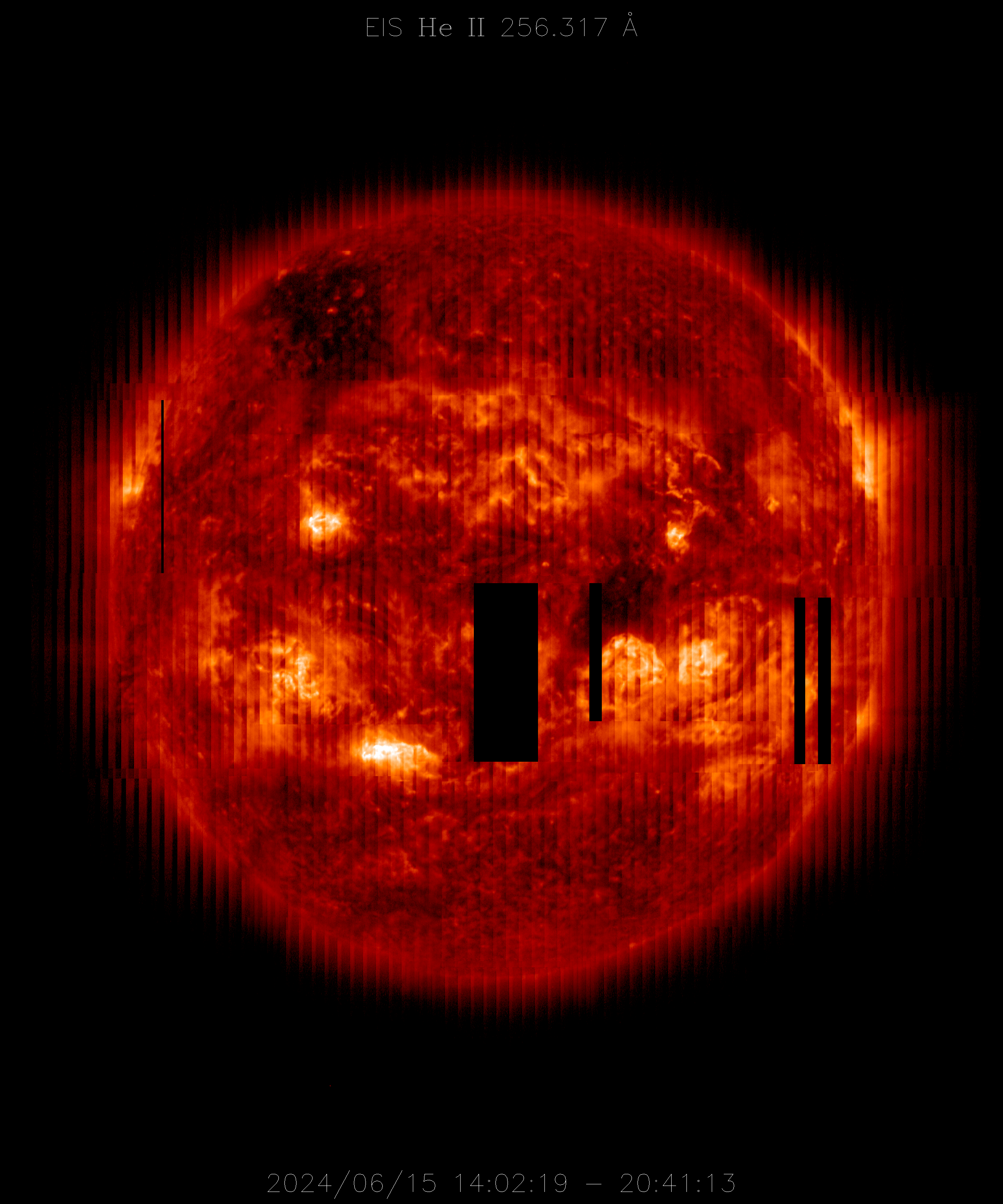

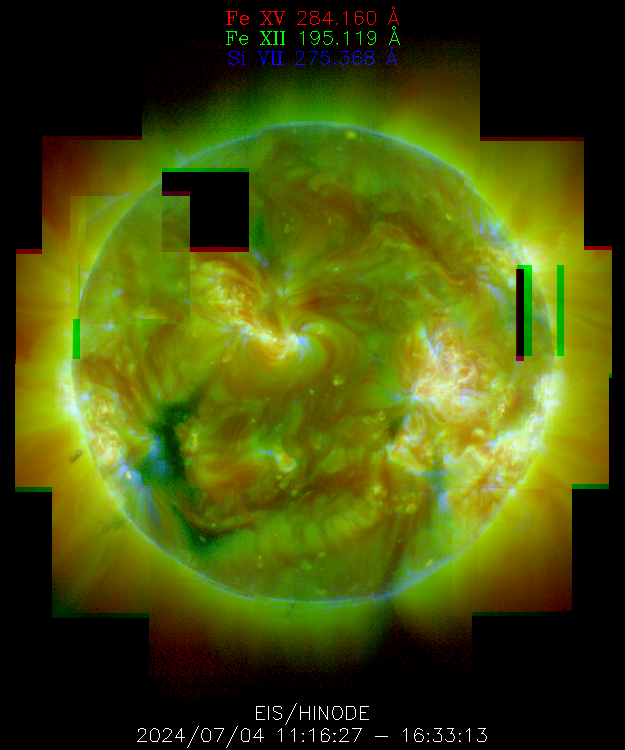

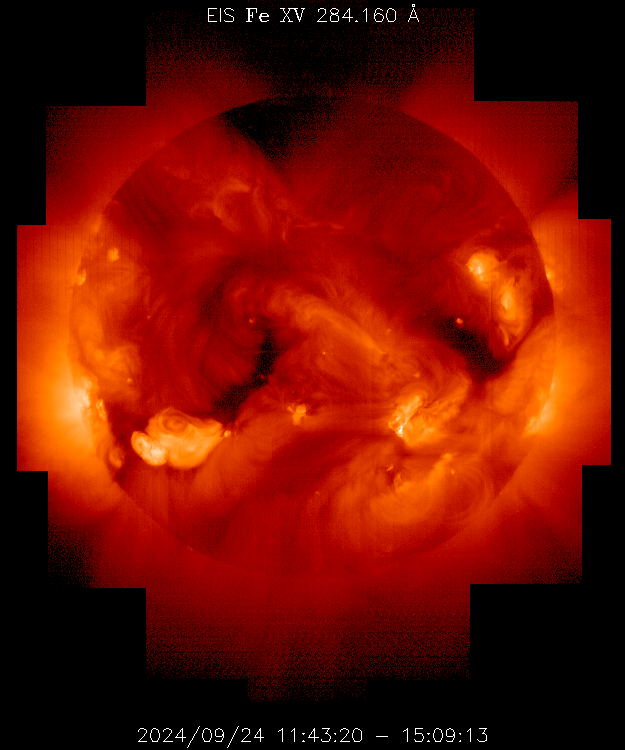

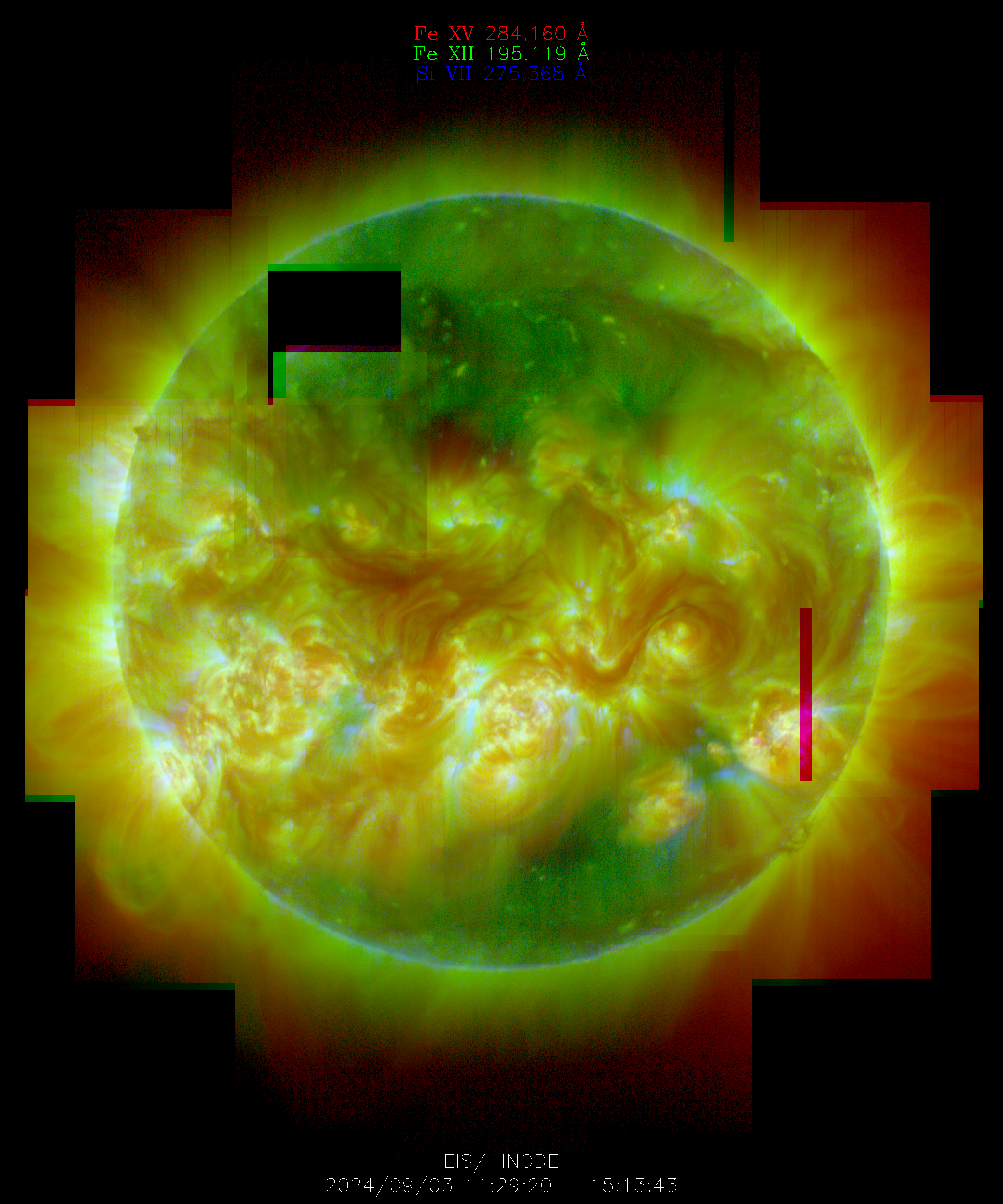

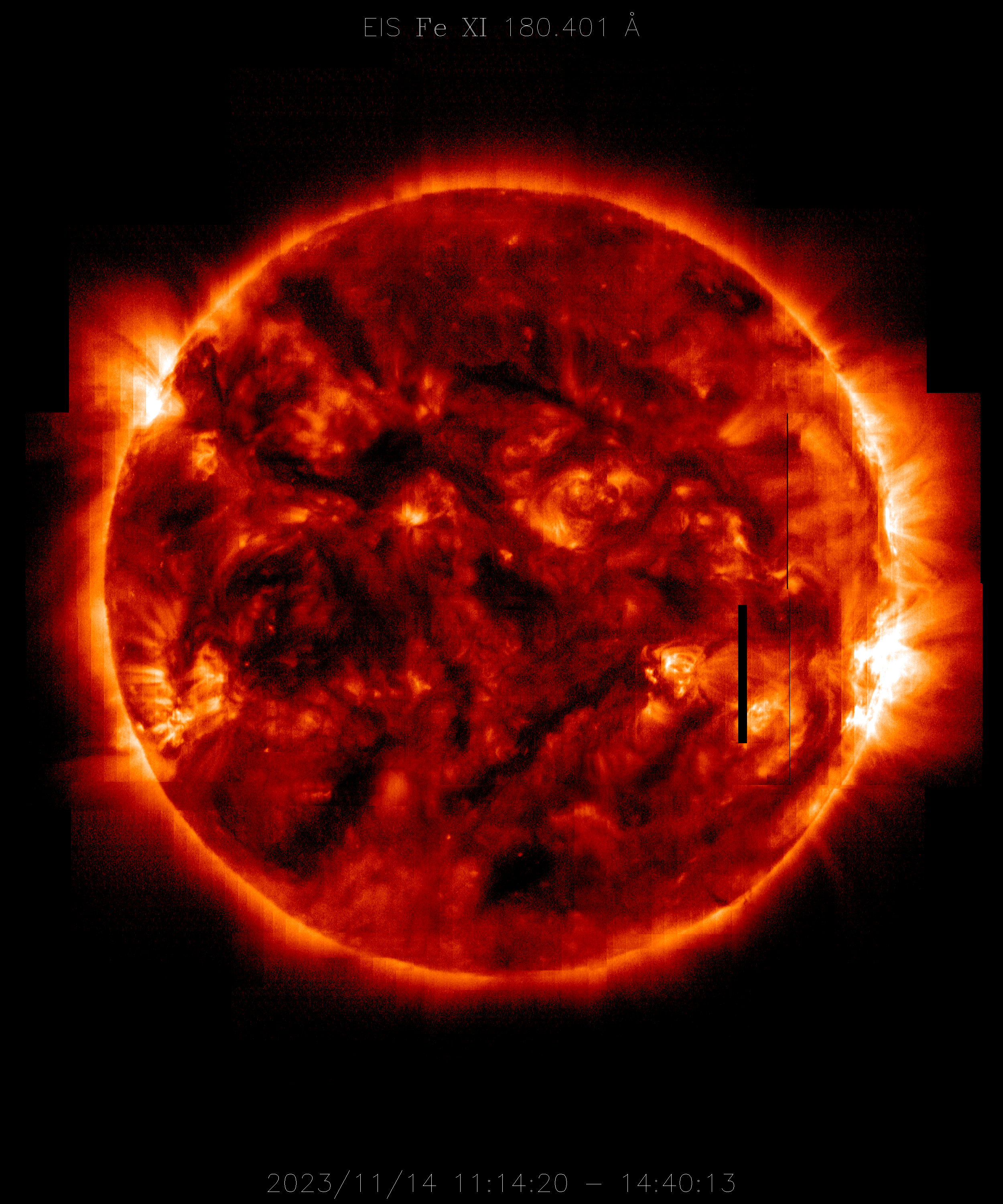

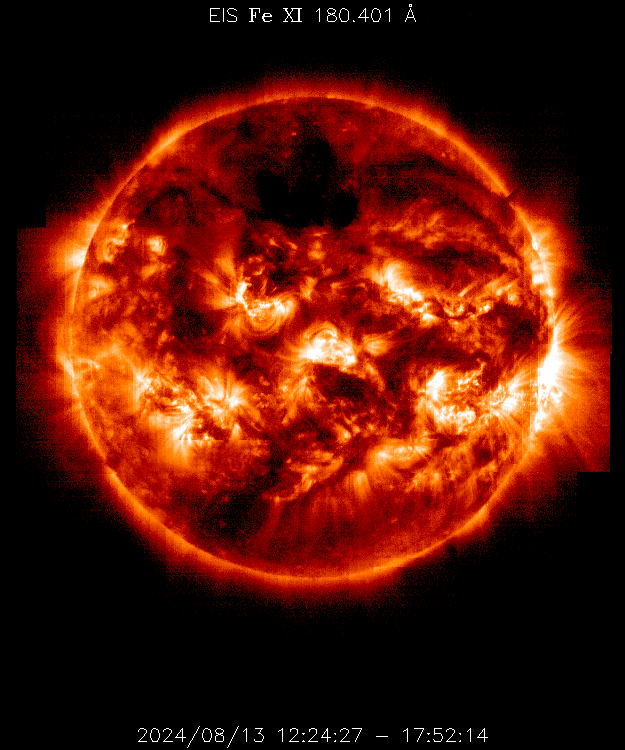

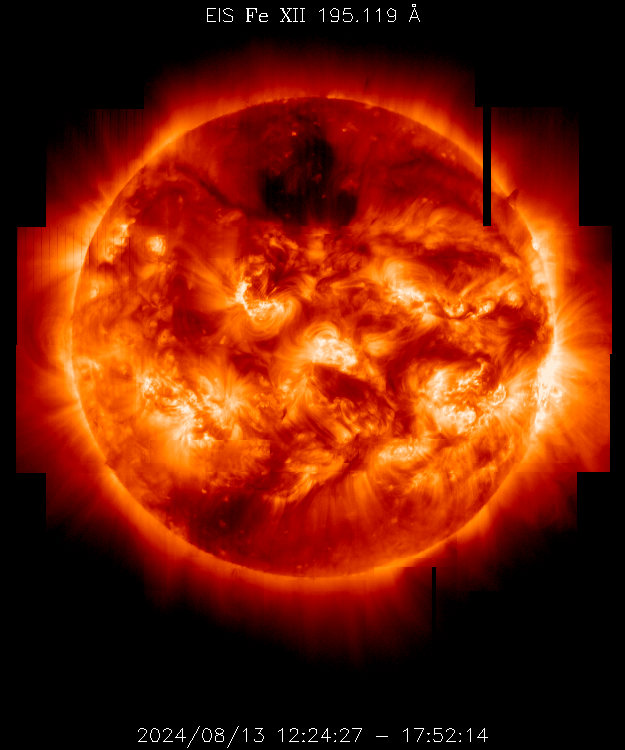

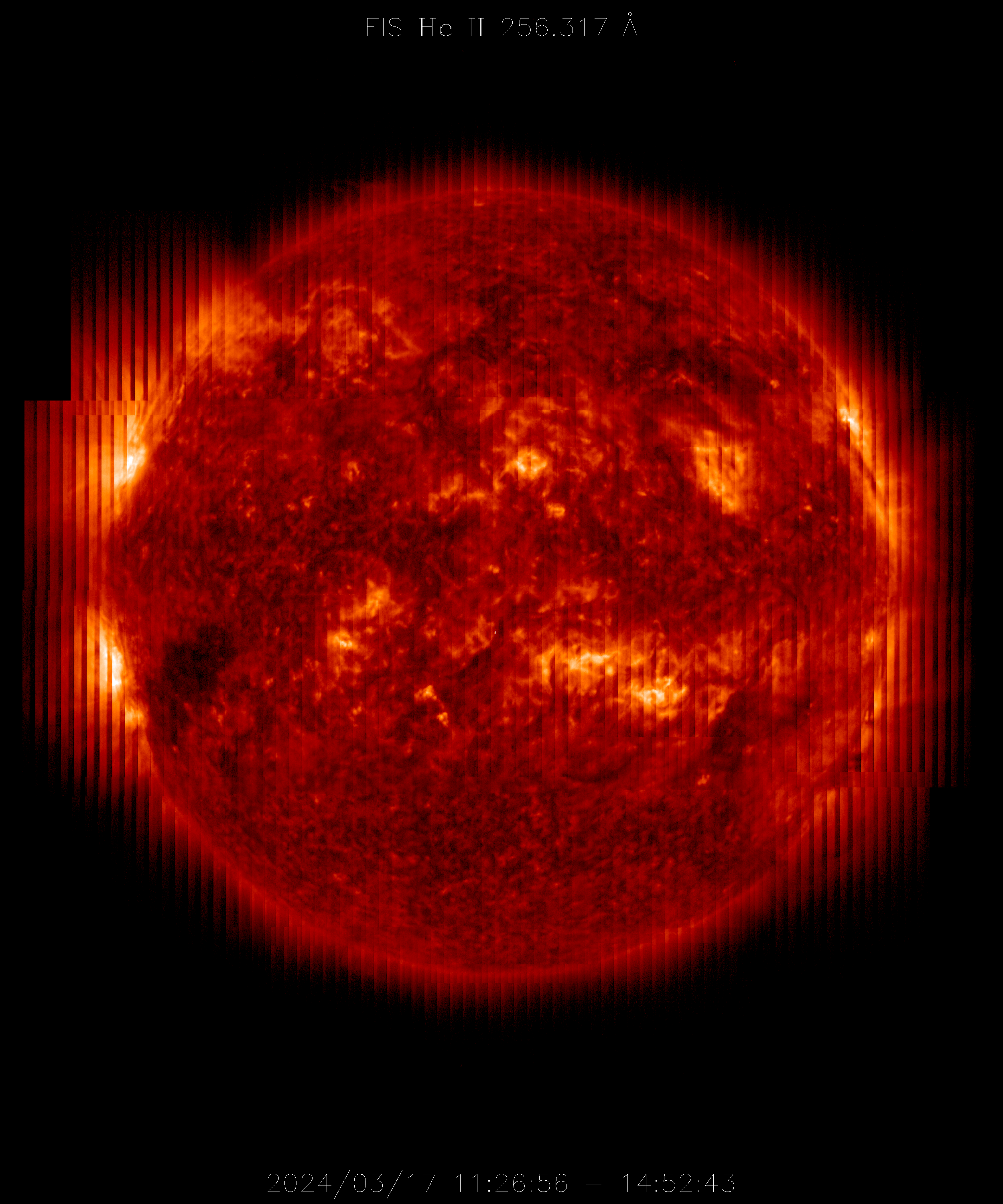

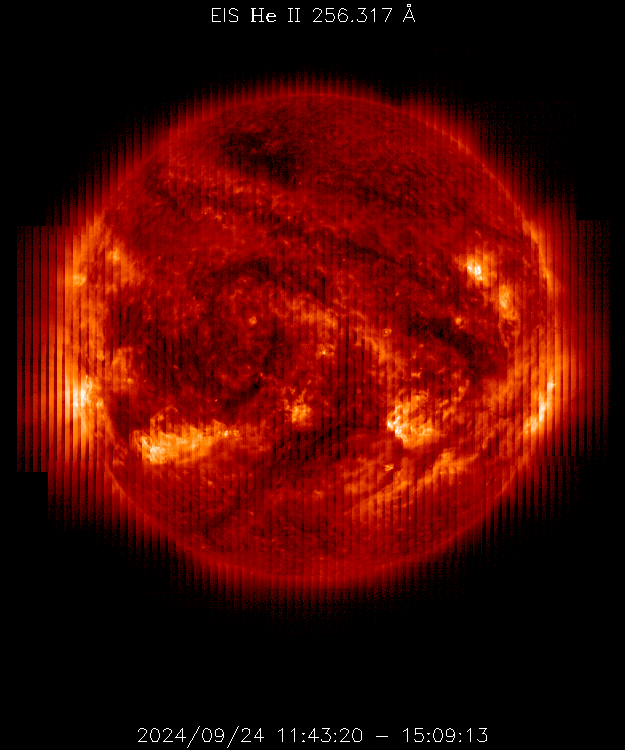

Thumbnails and Data links [Top]


Direct link to archive

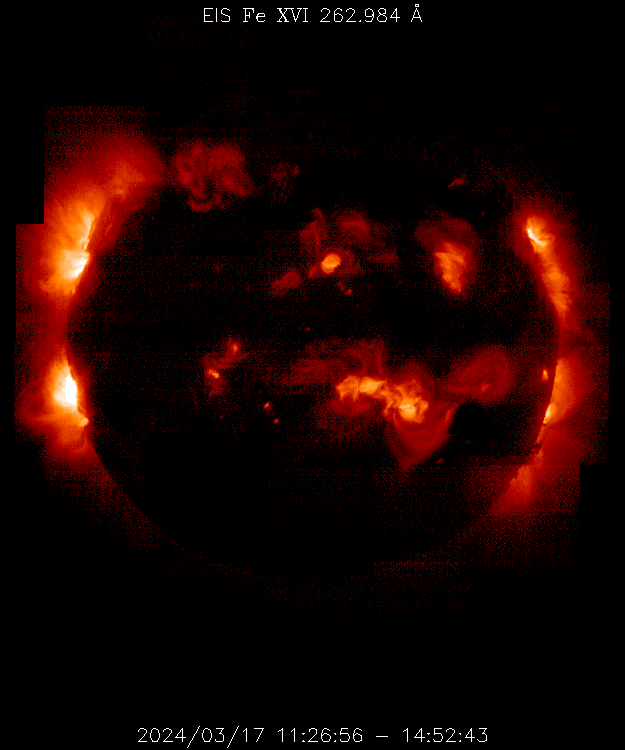

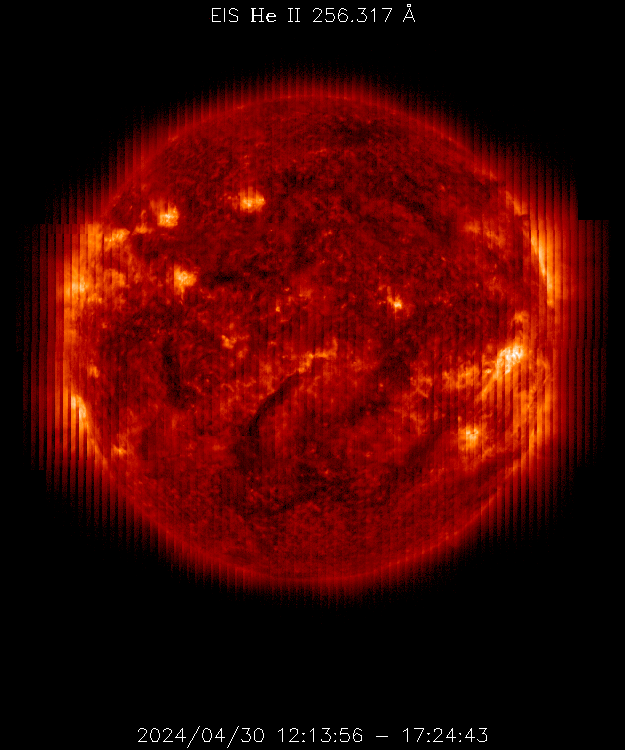

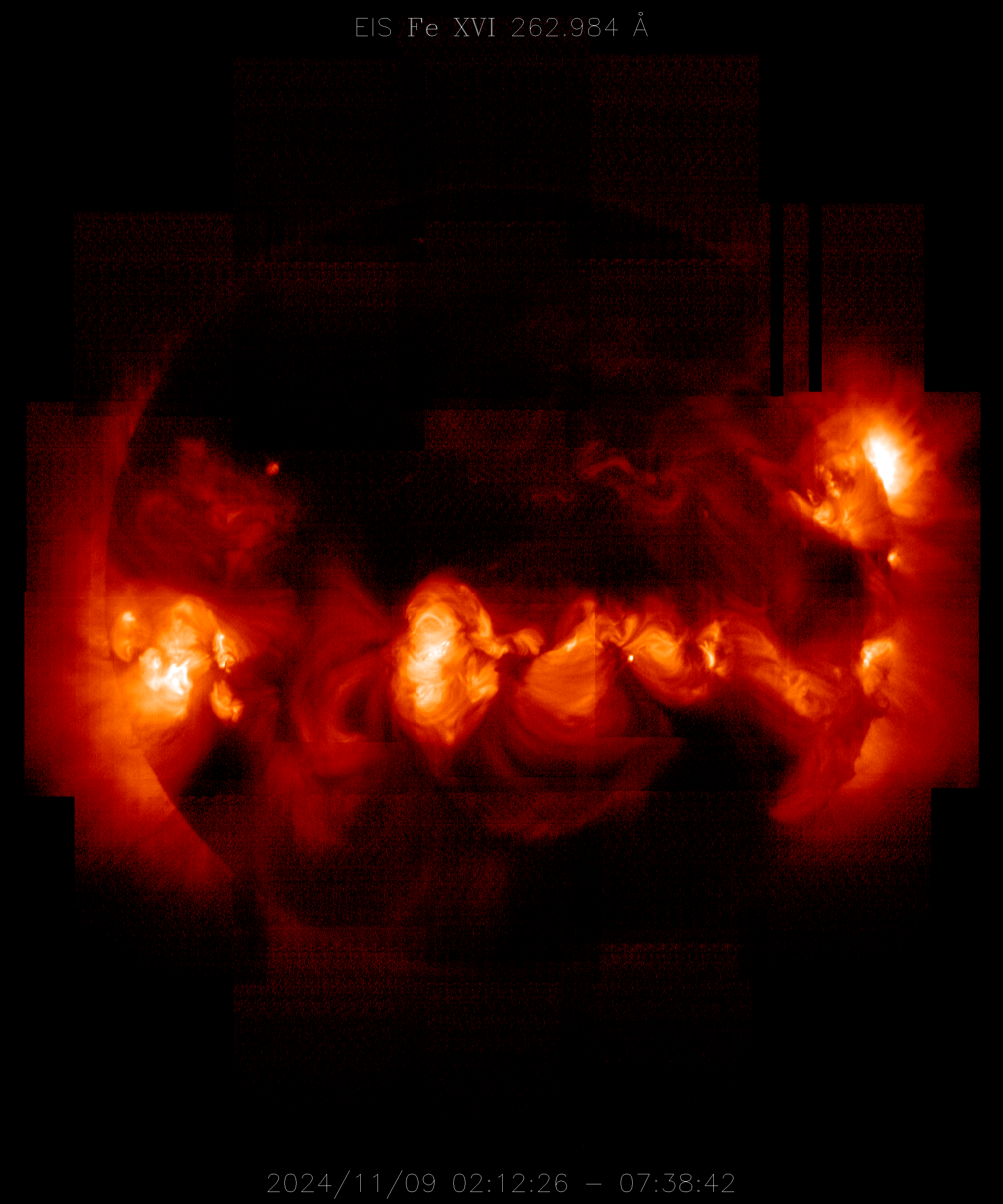

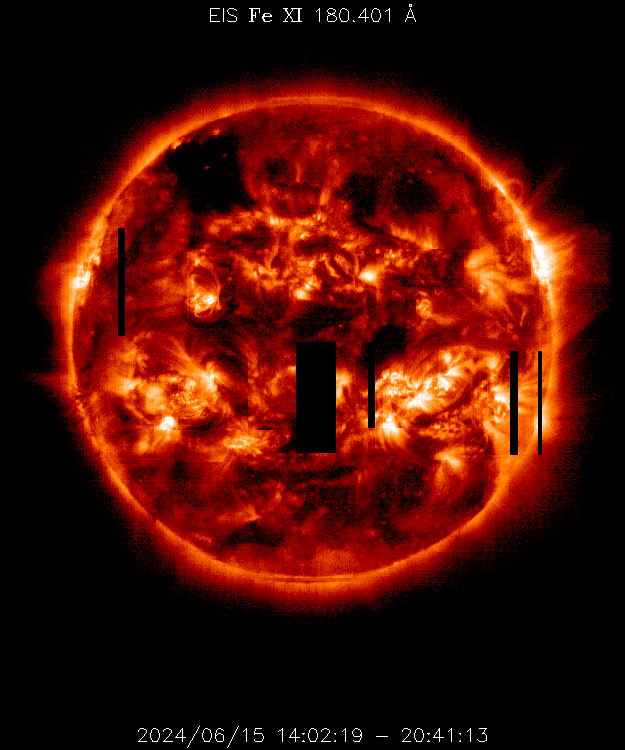

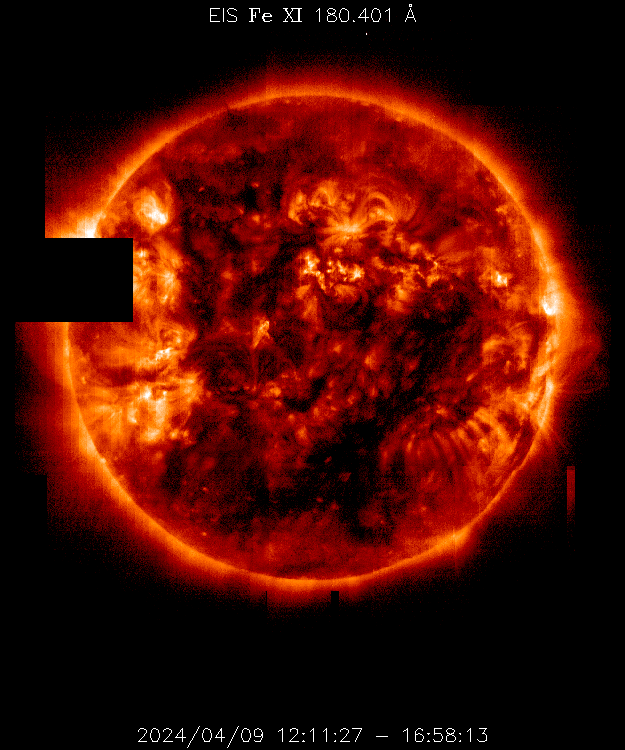

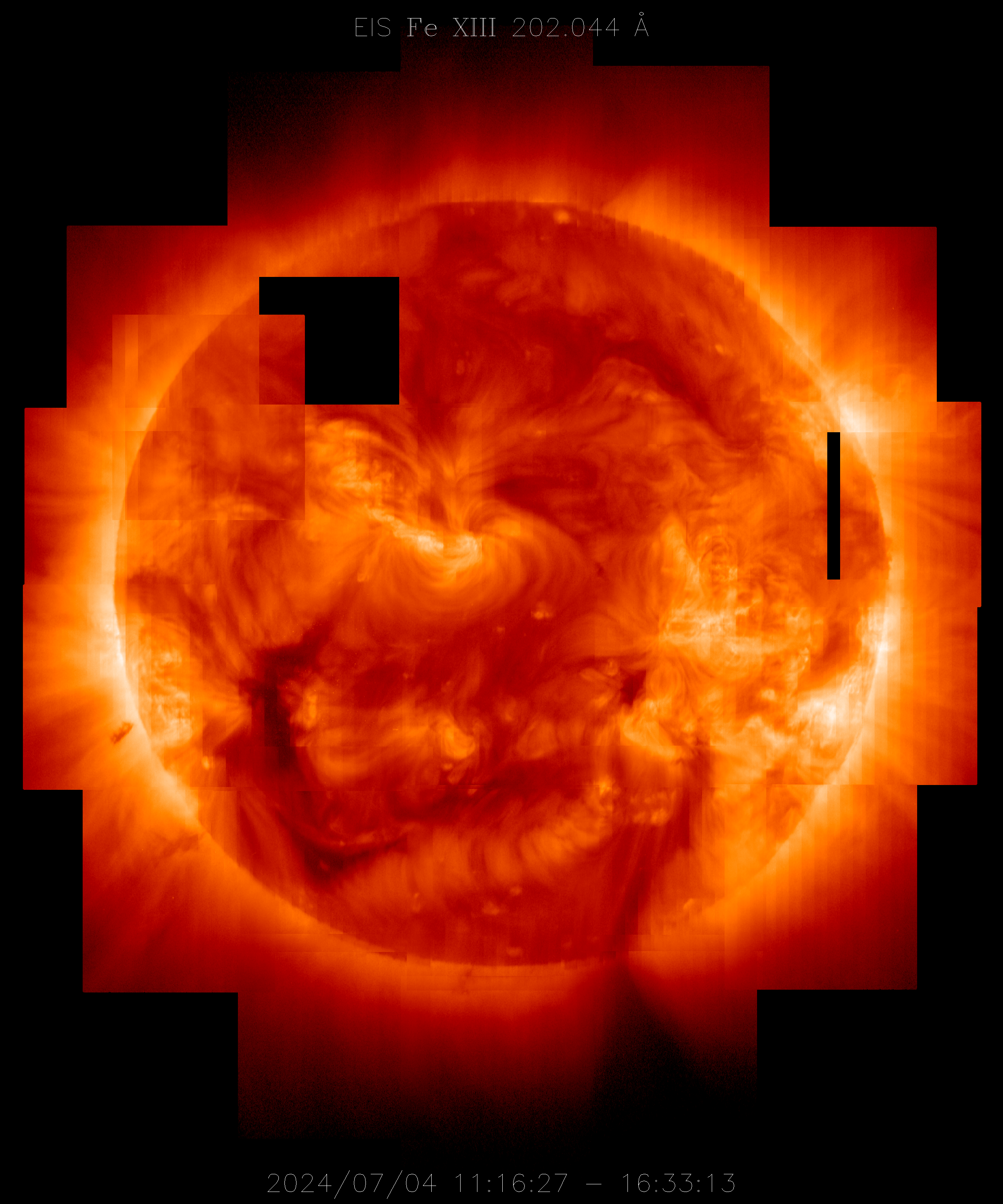

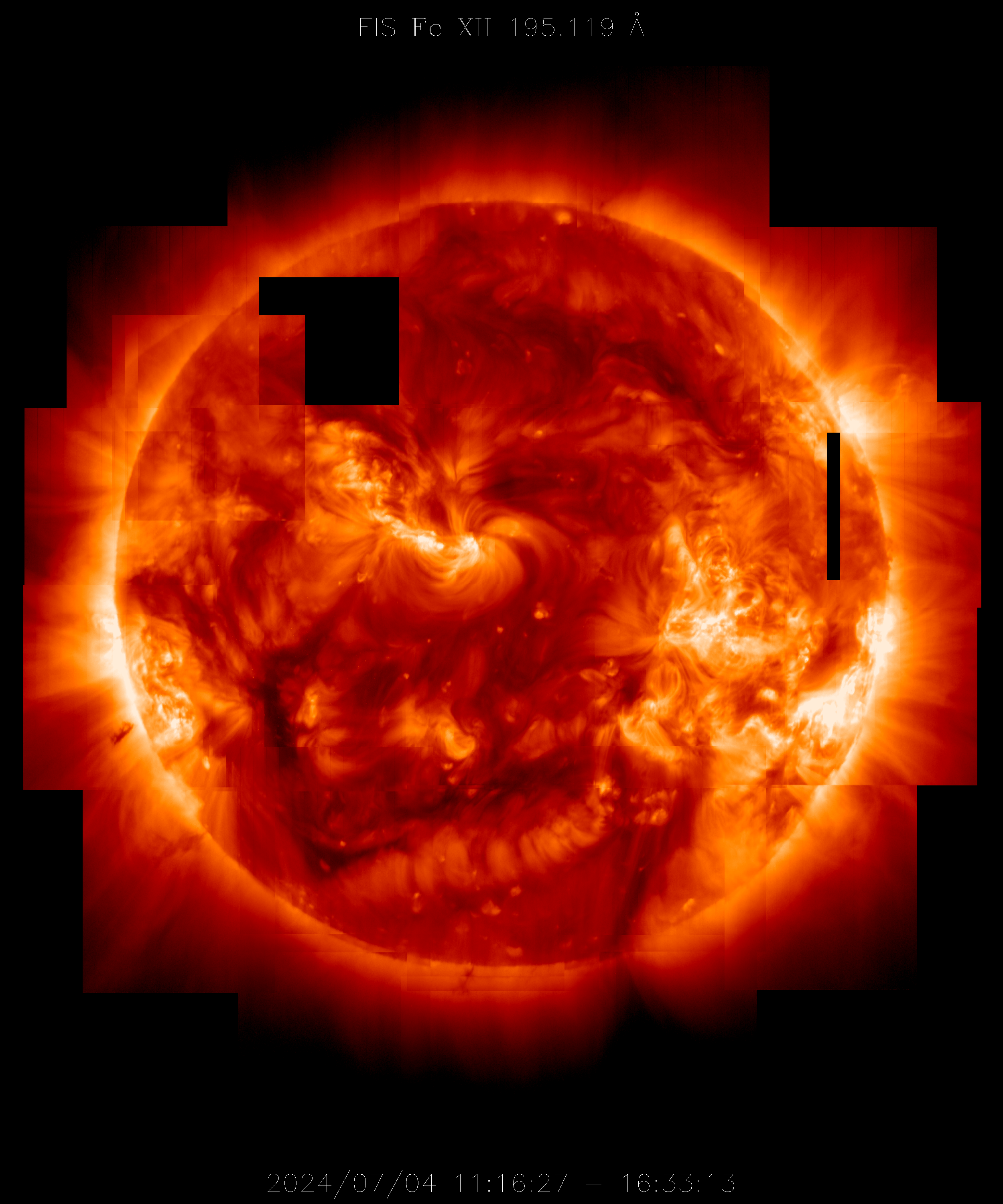

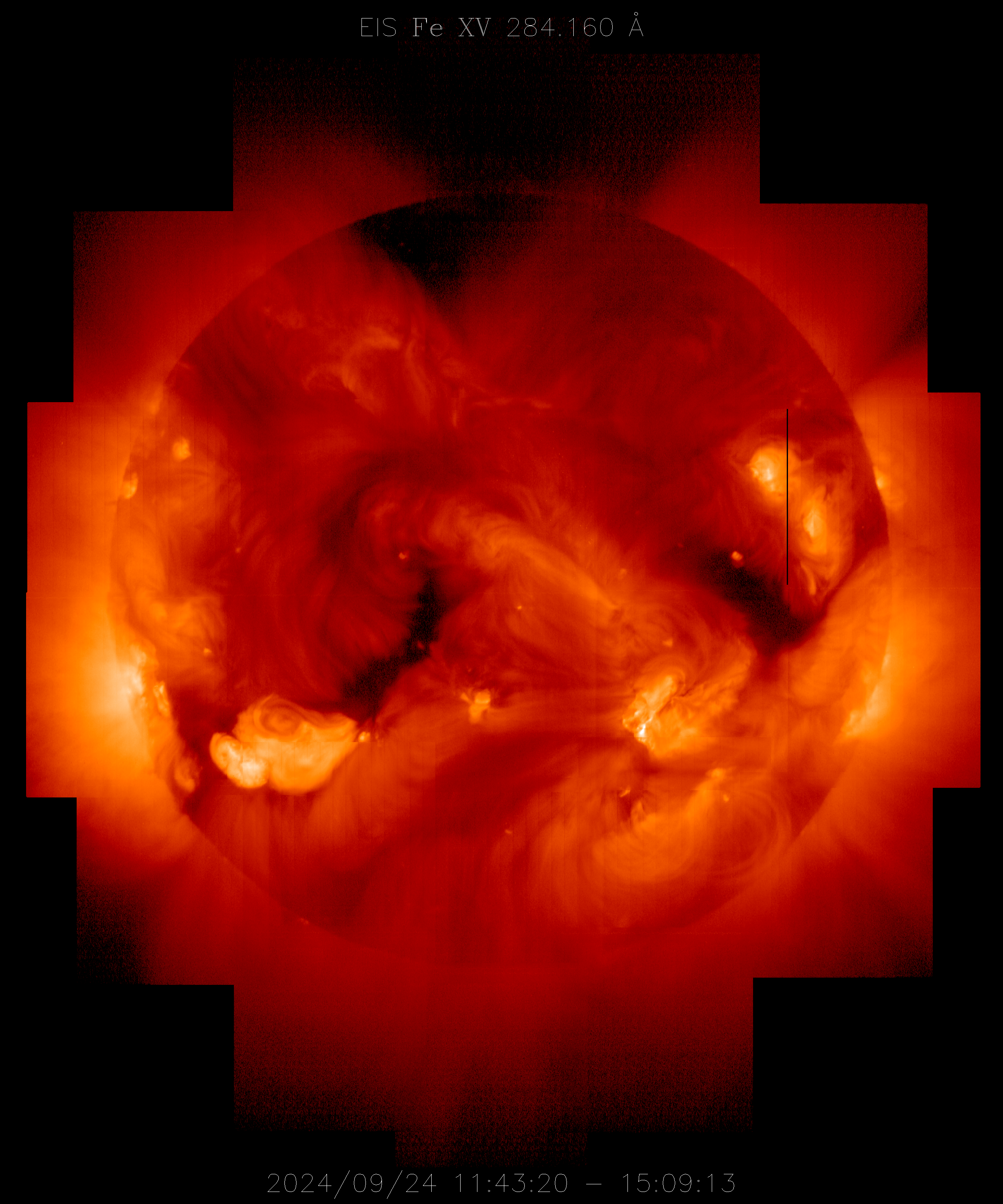

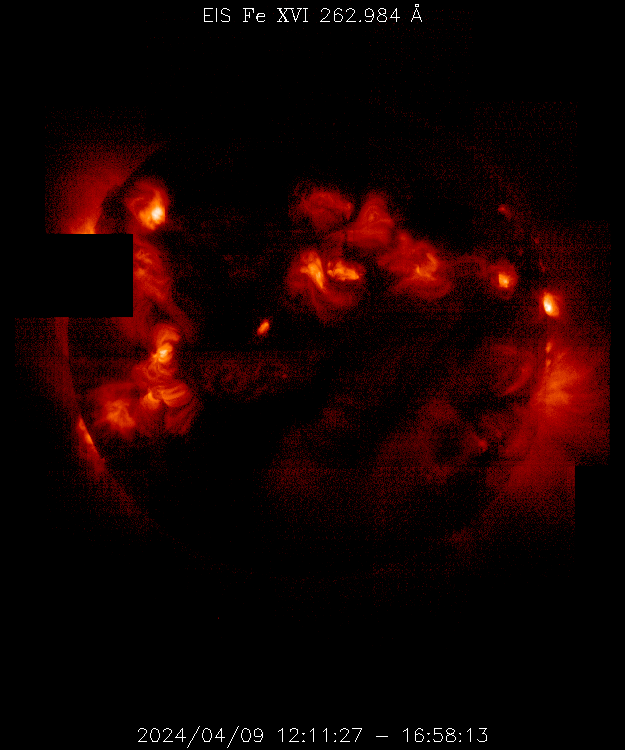

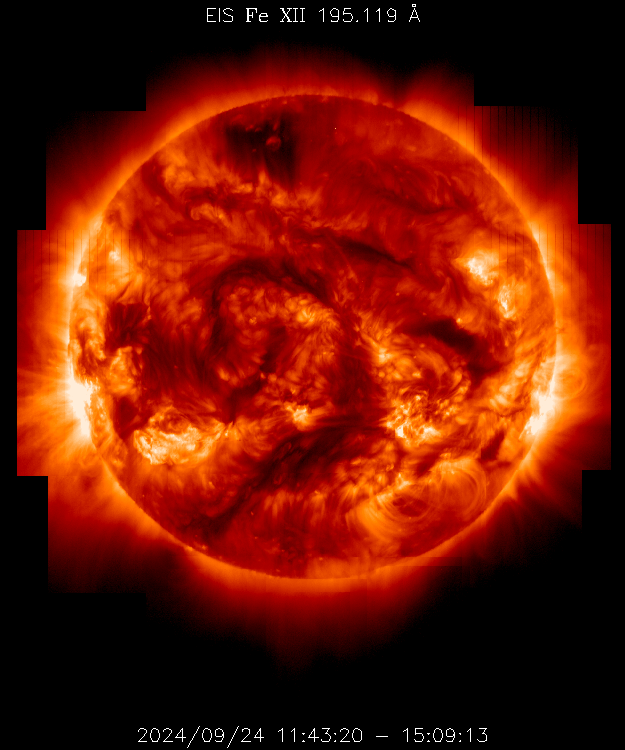

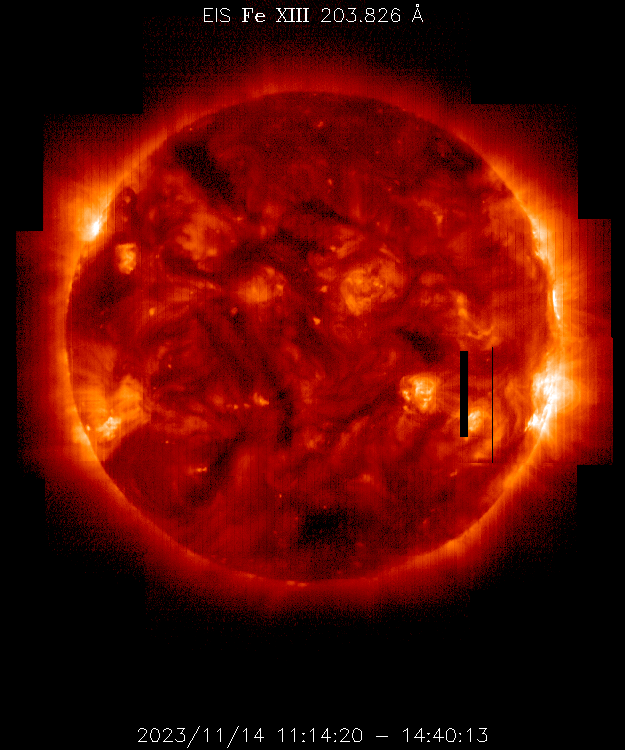

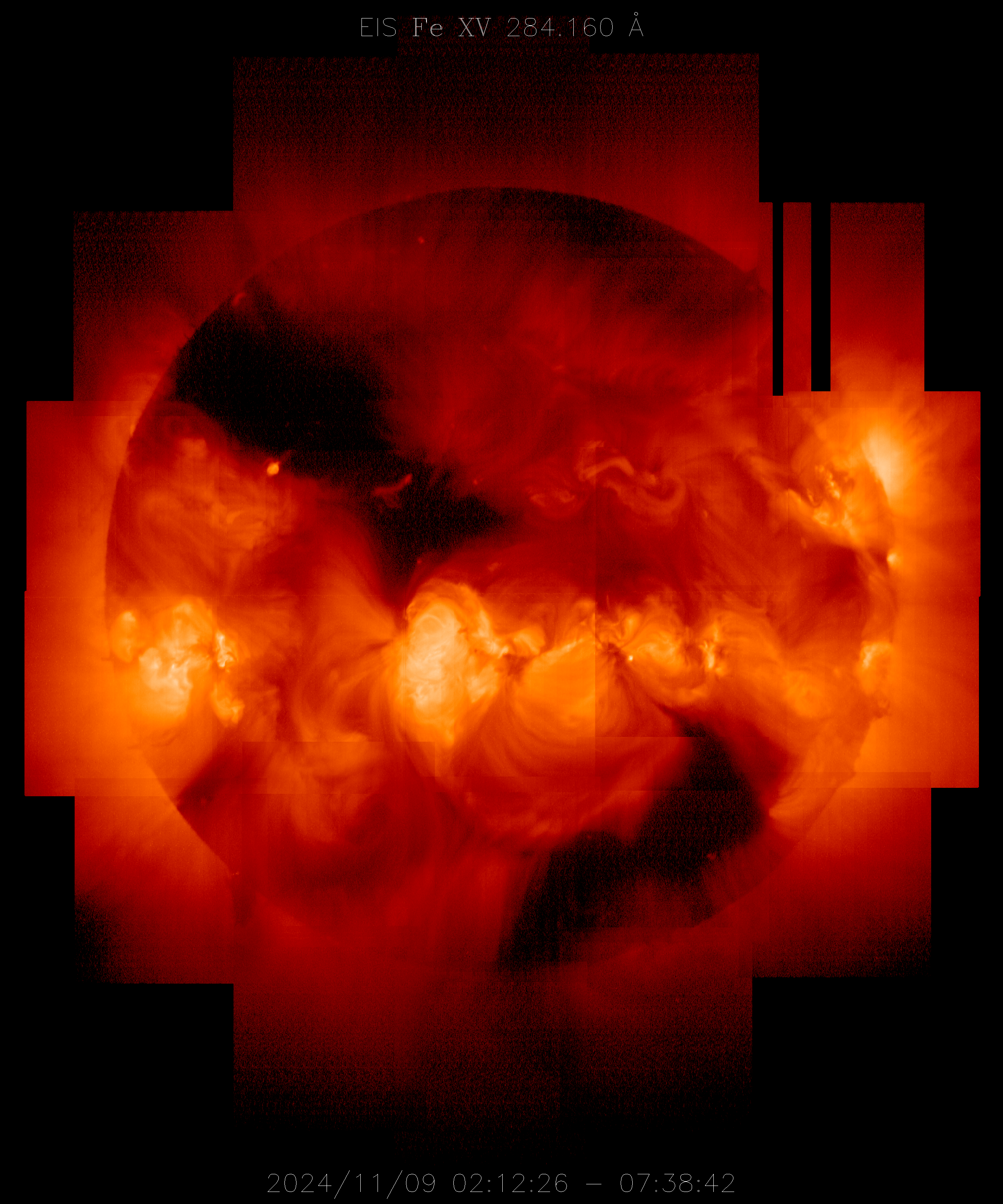

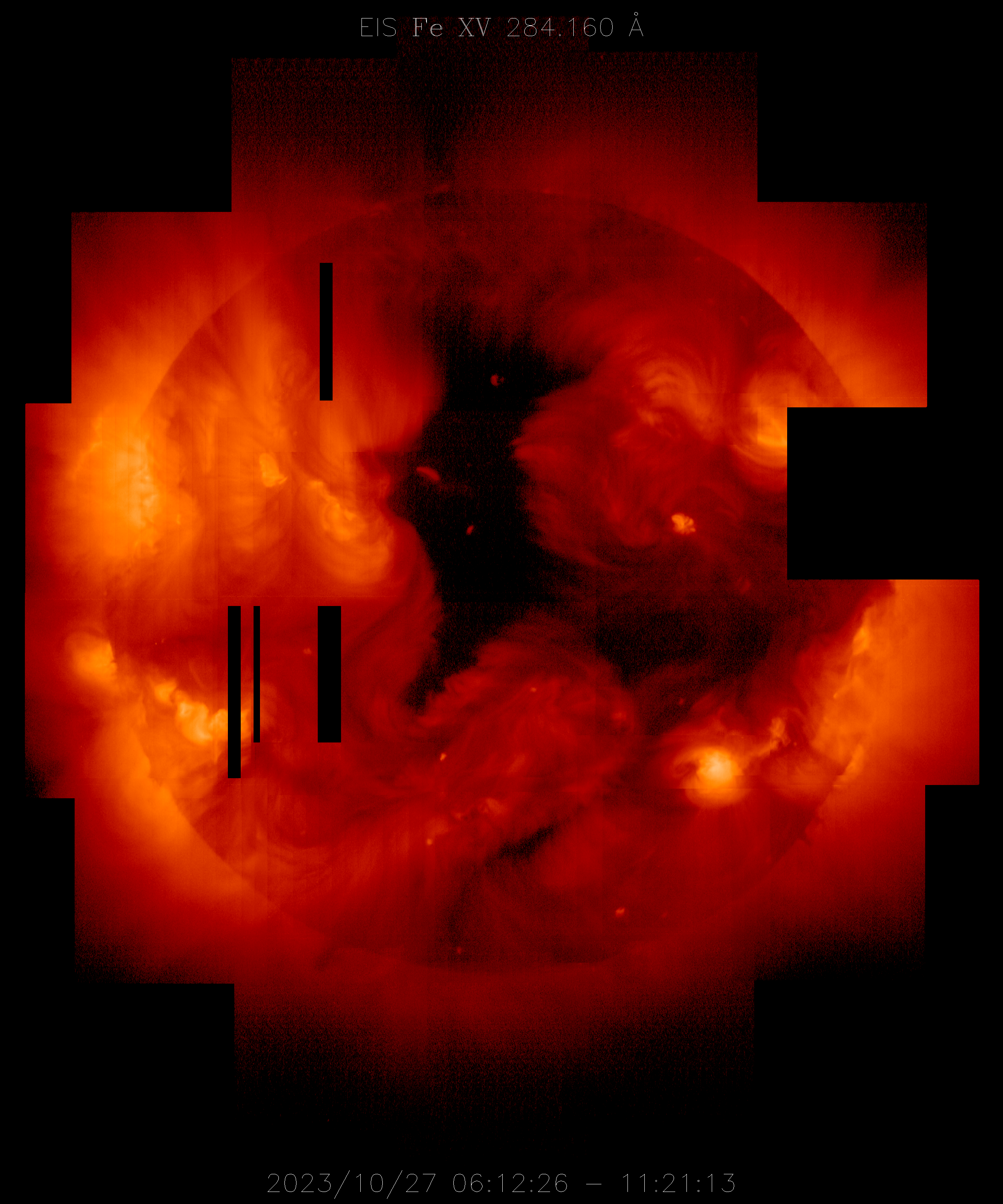

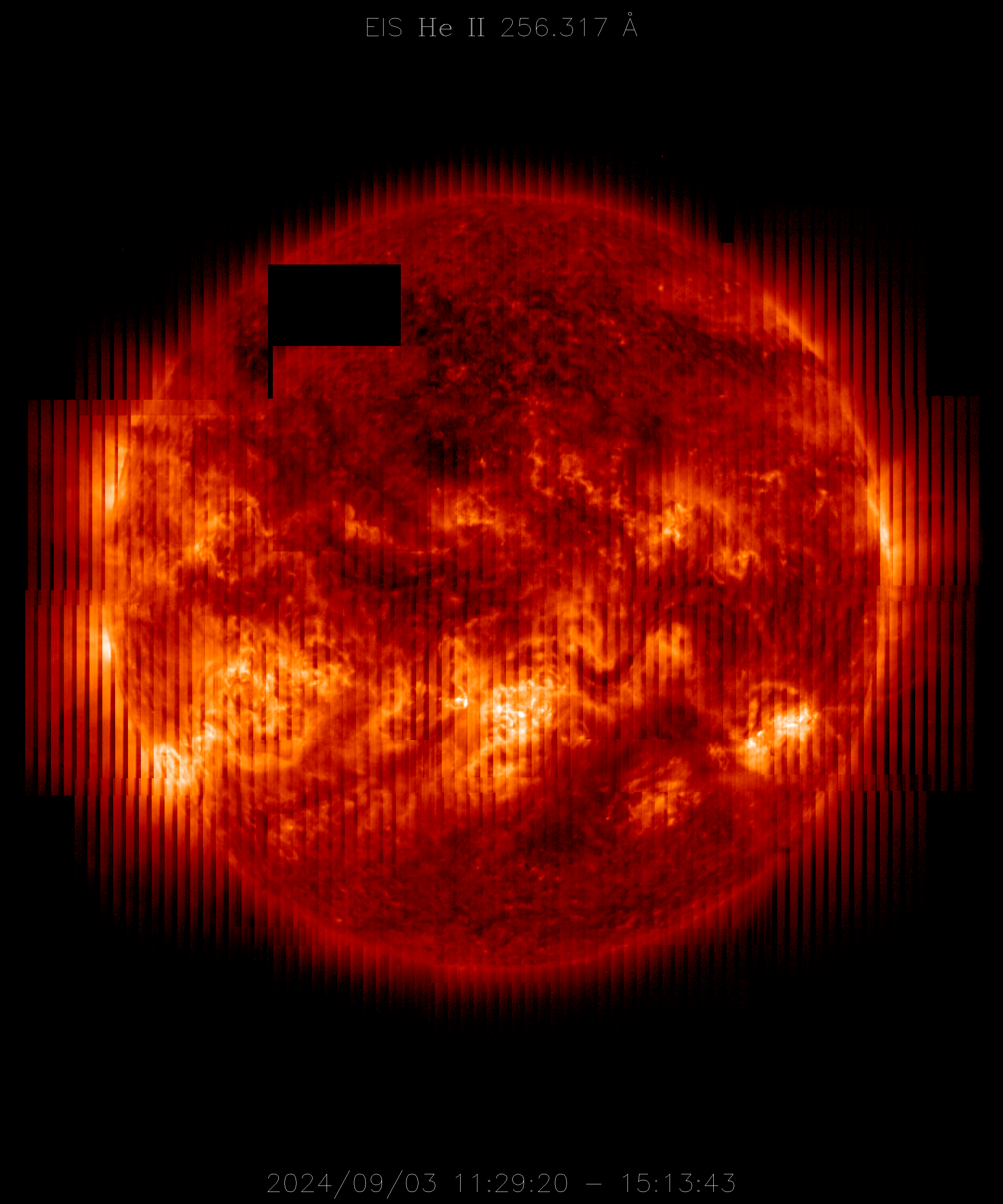

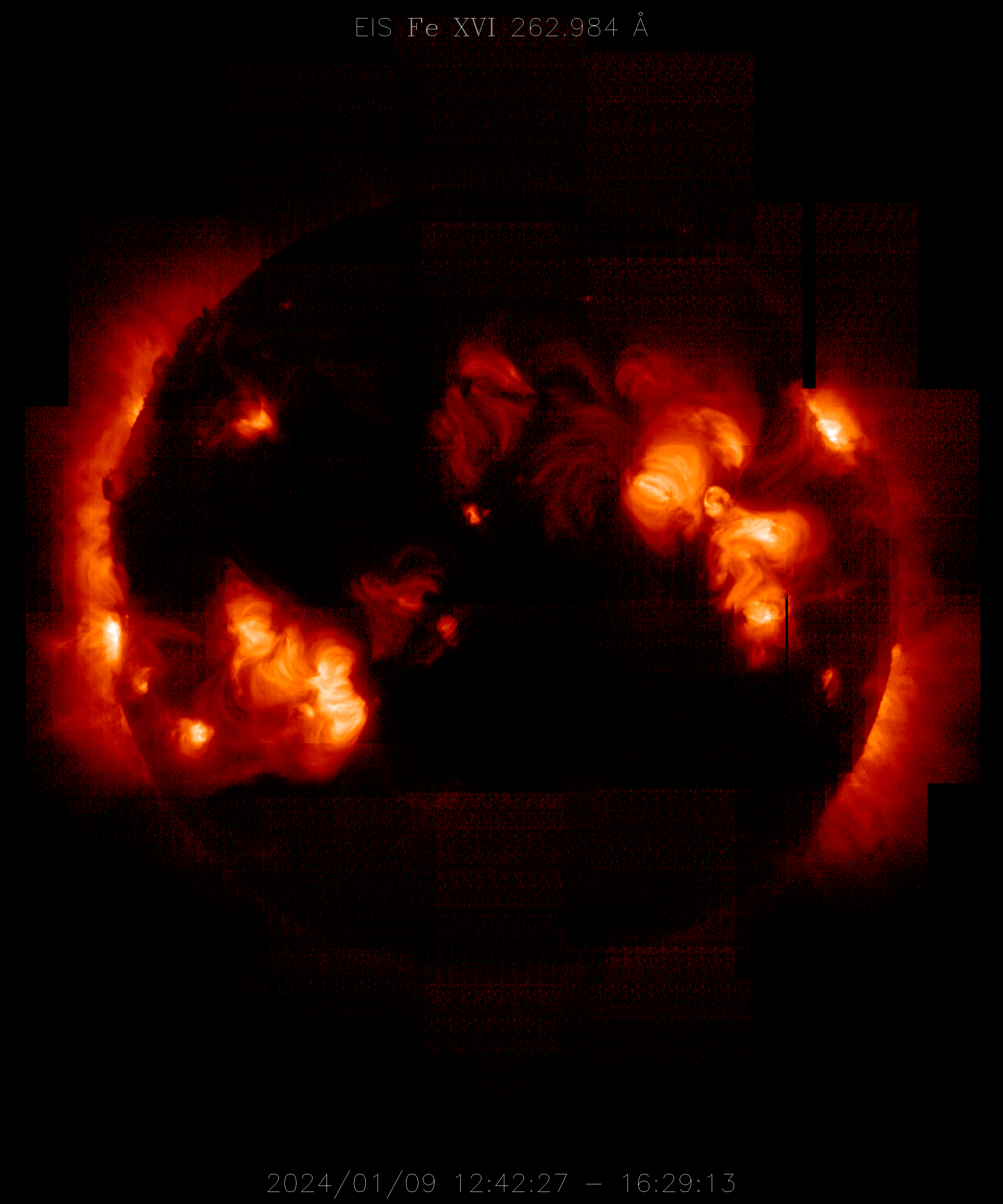

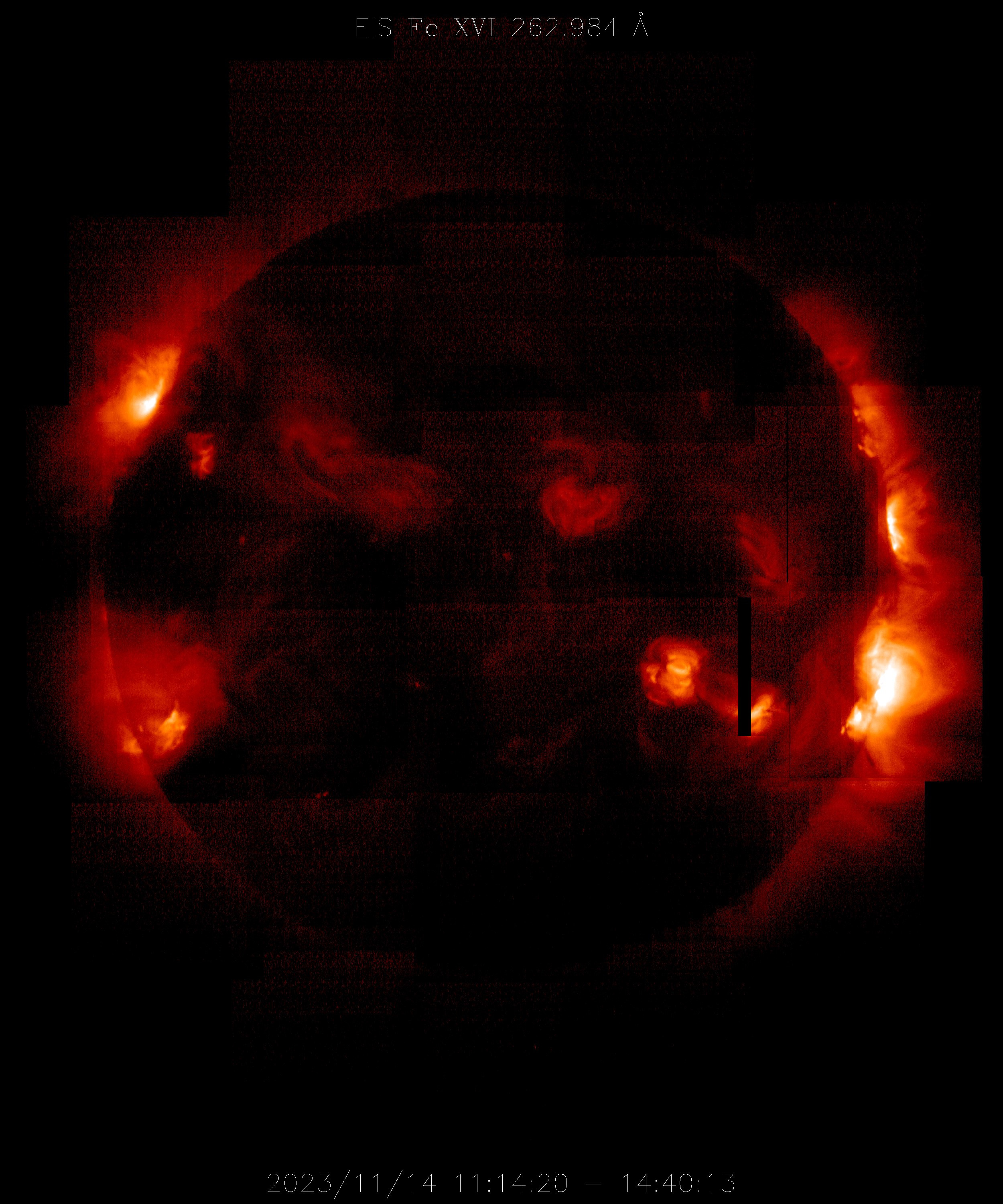

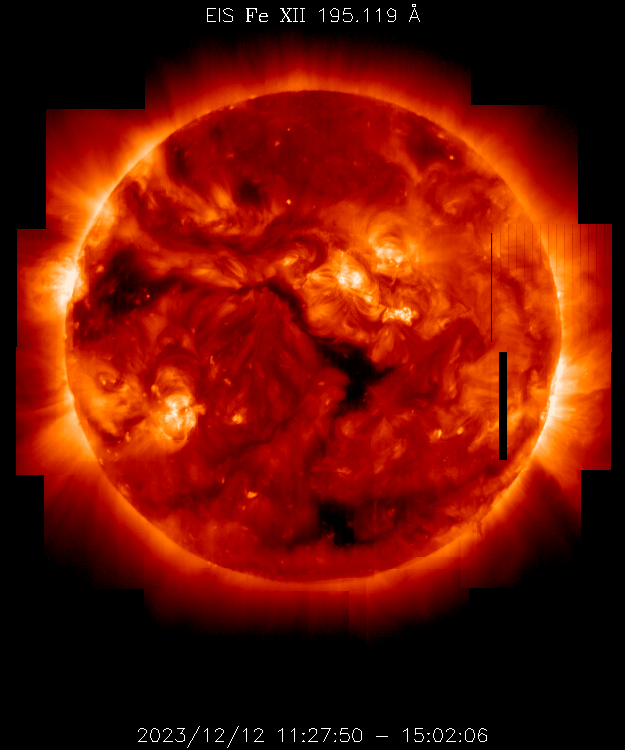

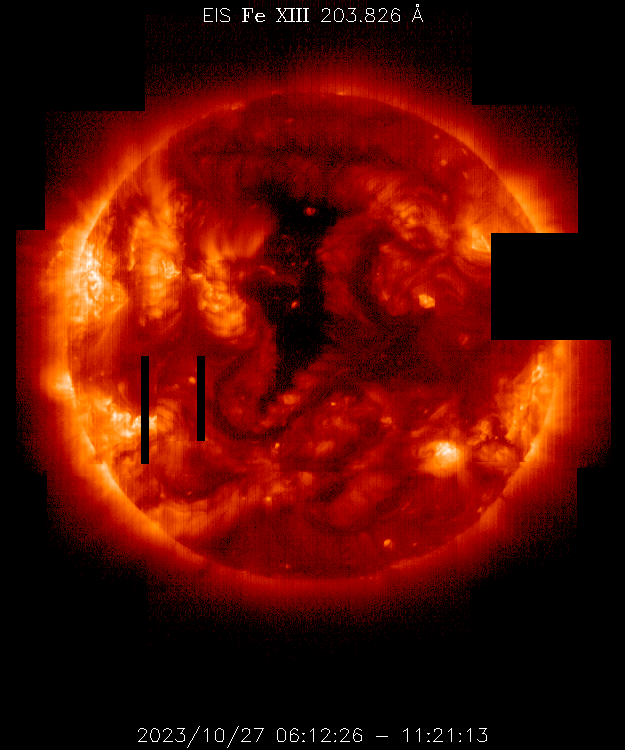

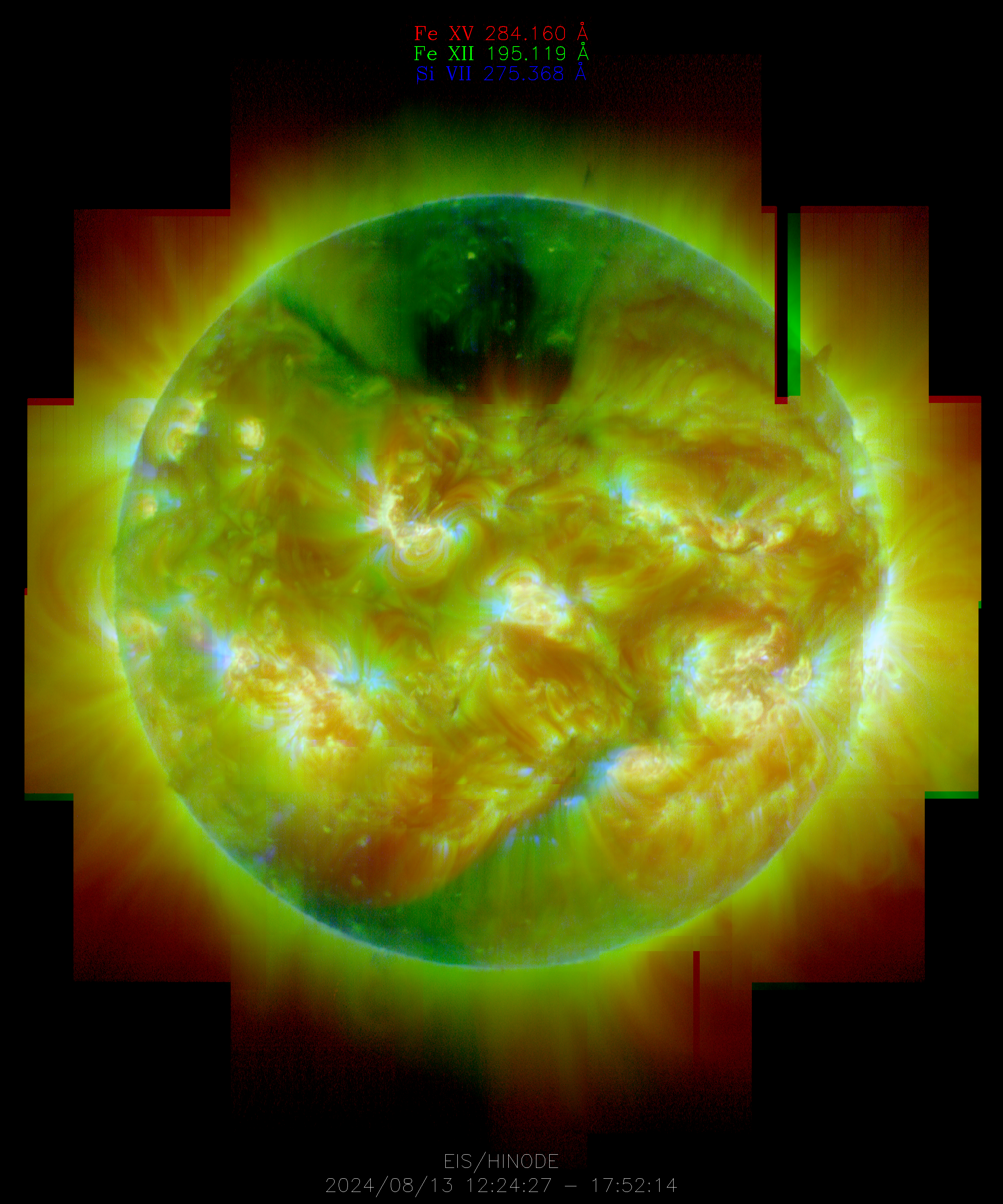

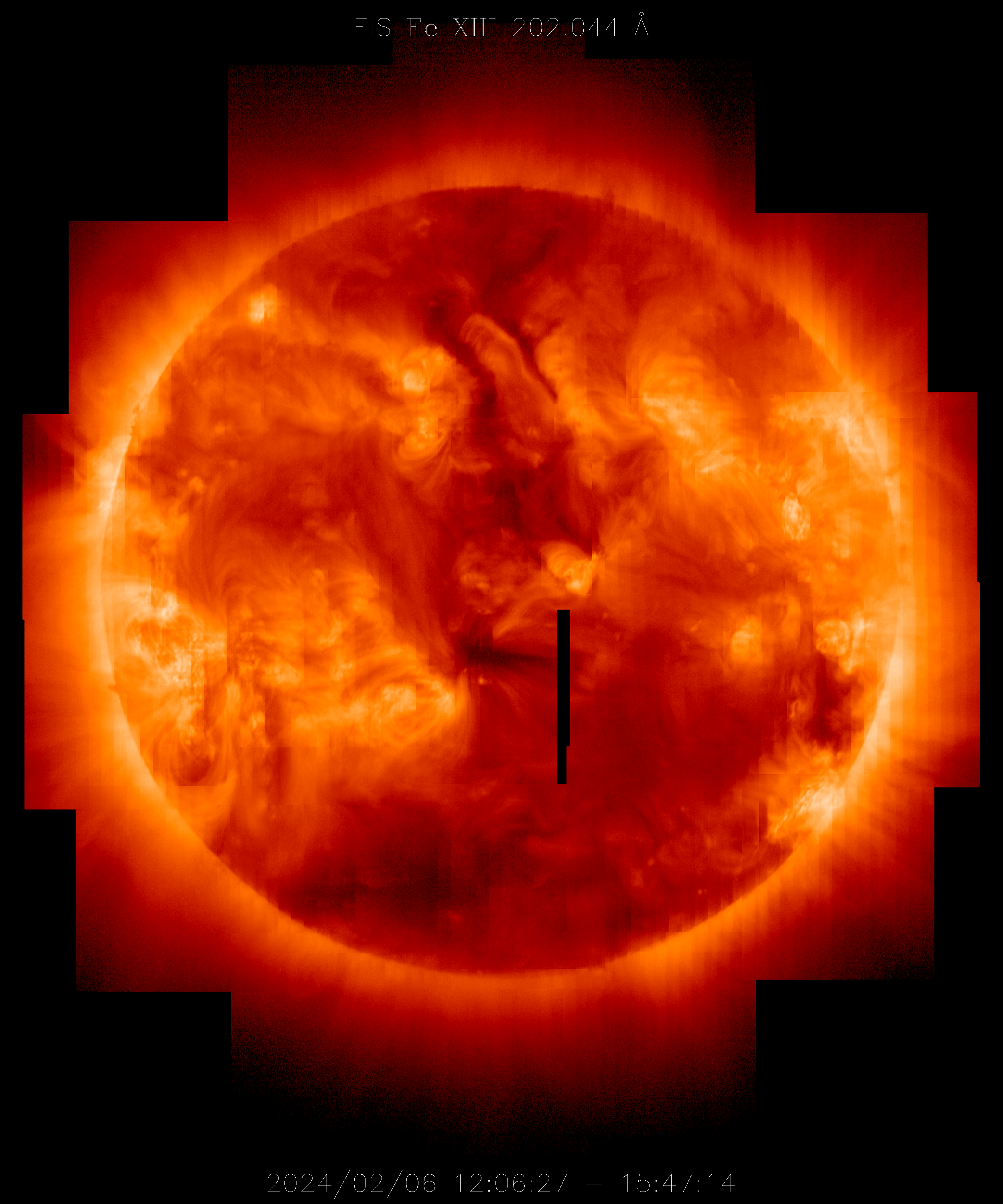

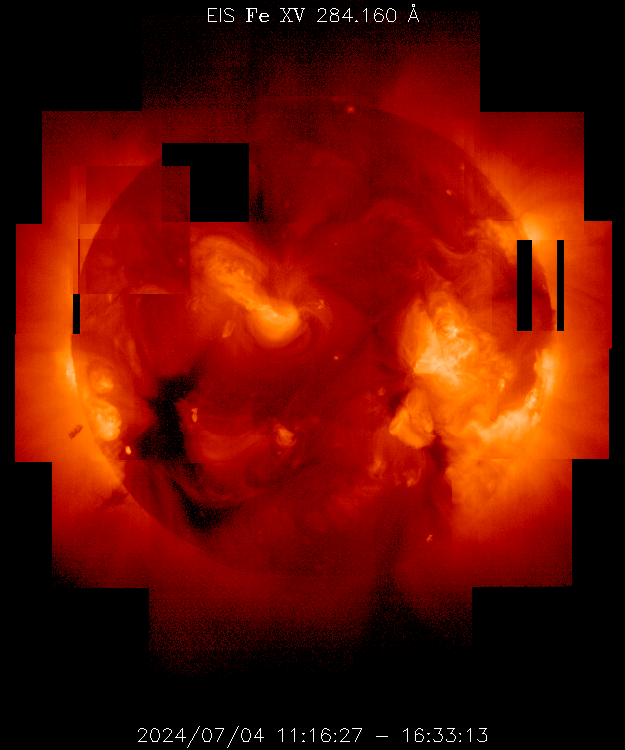

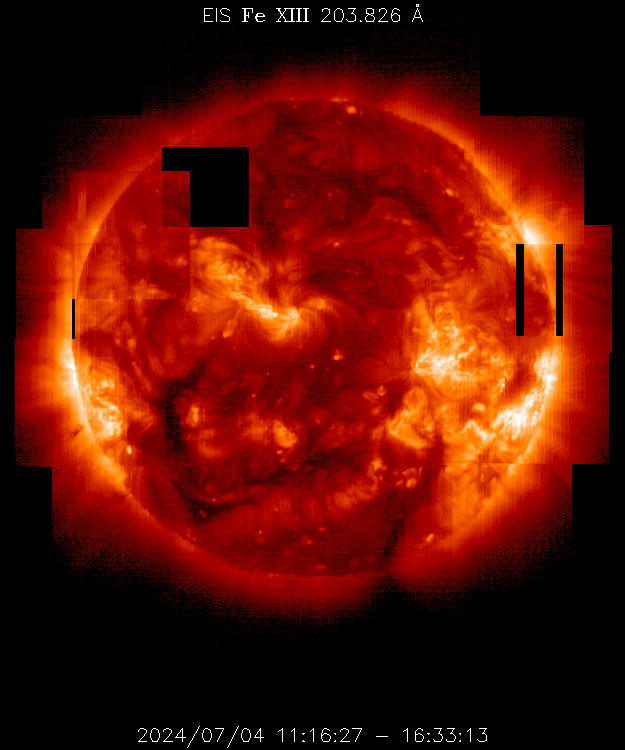

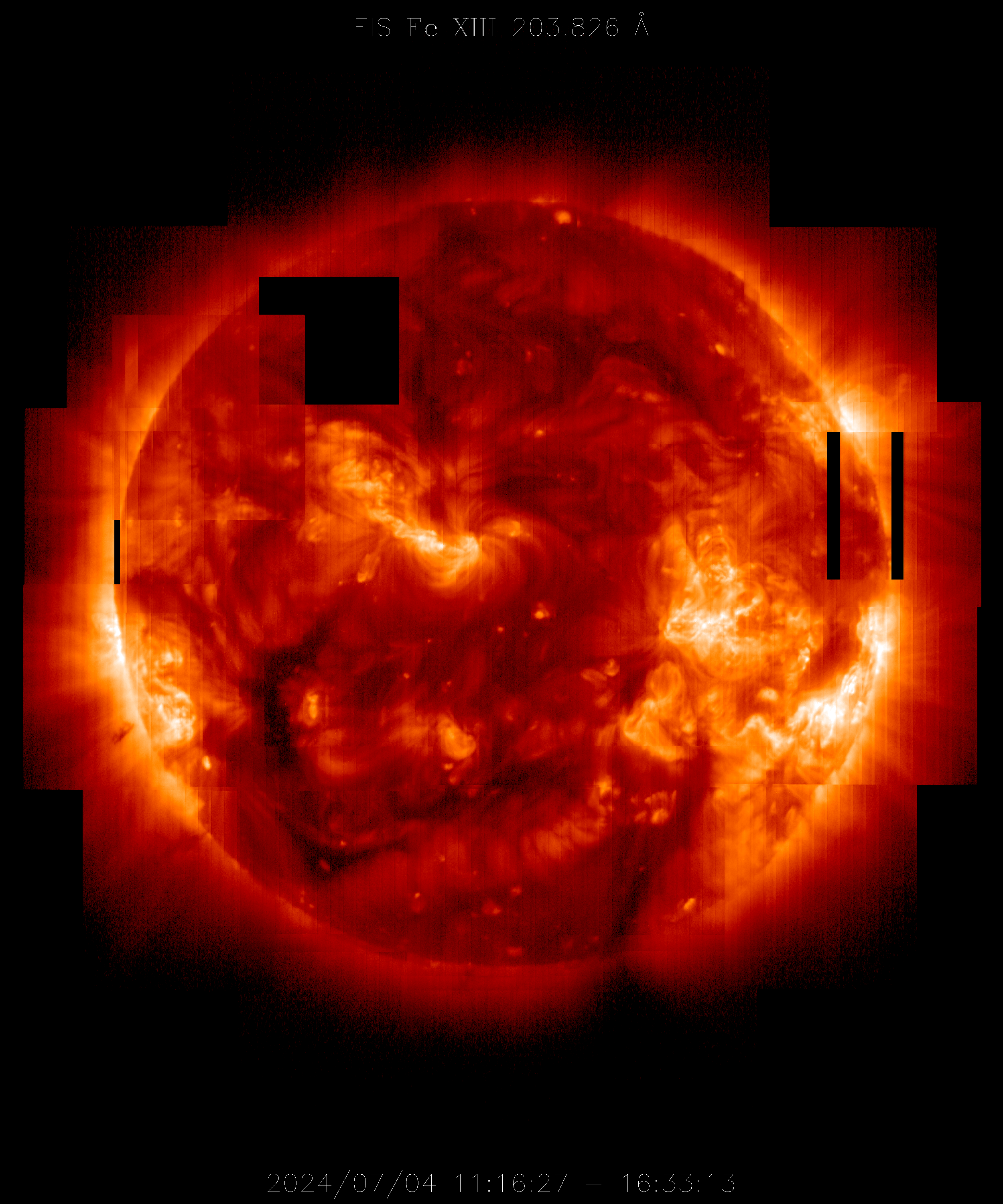

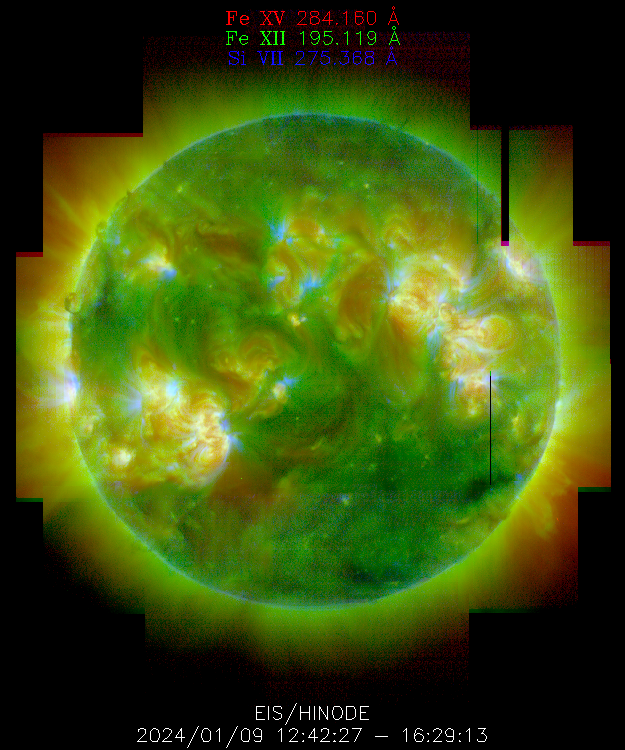

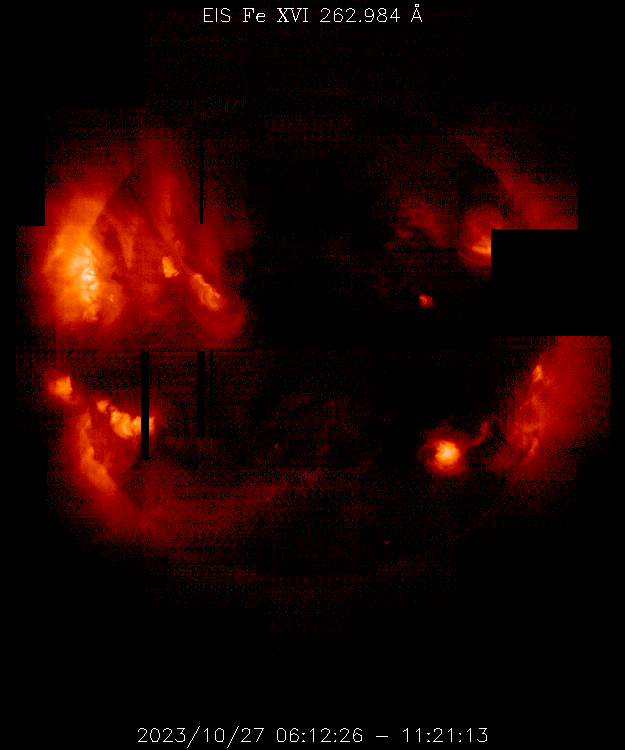

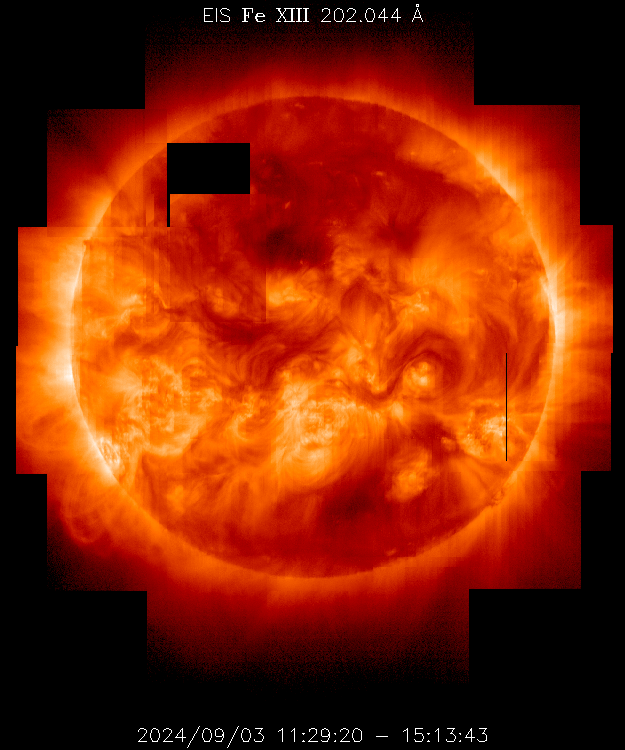

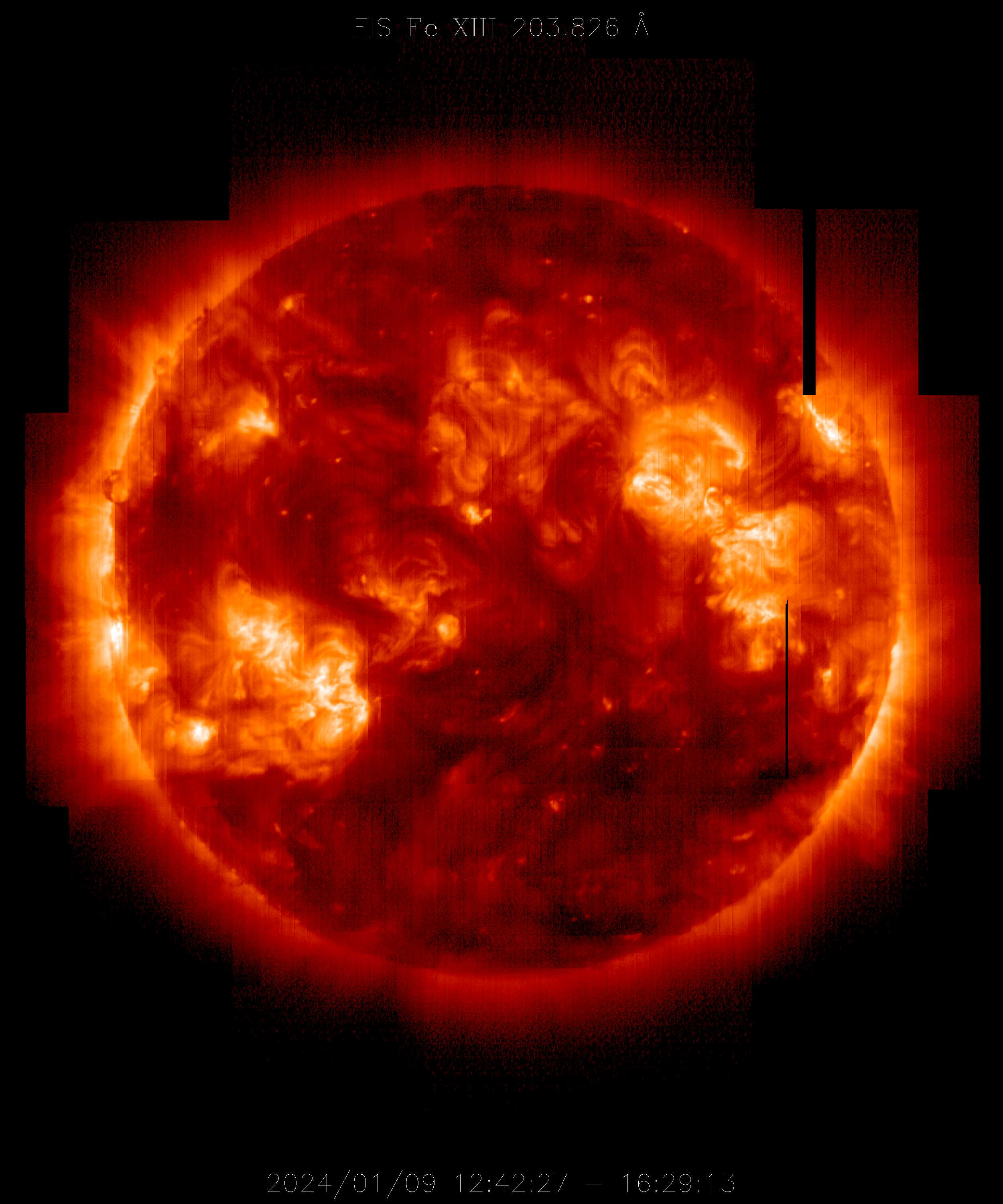

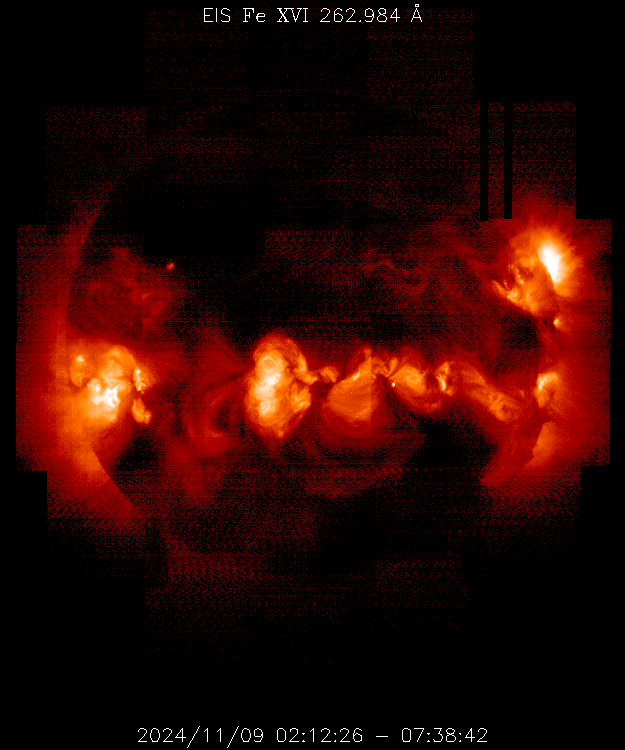

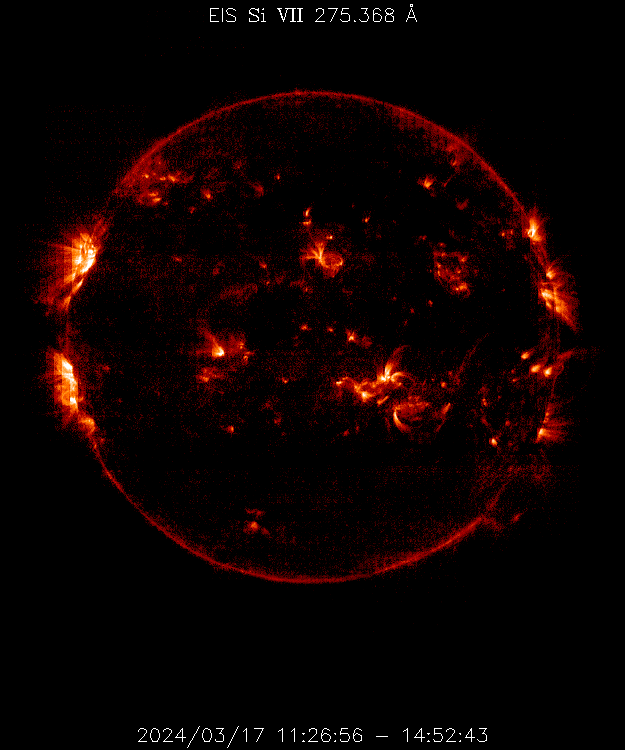

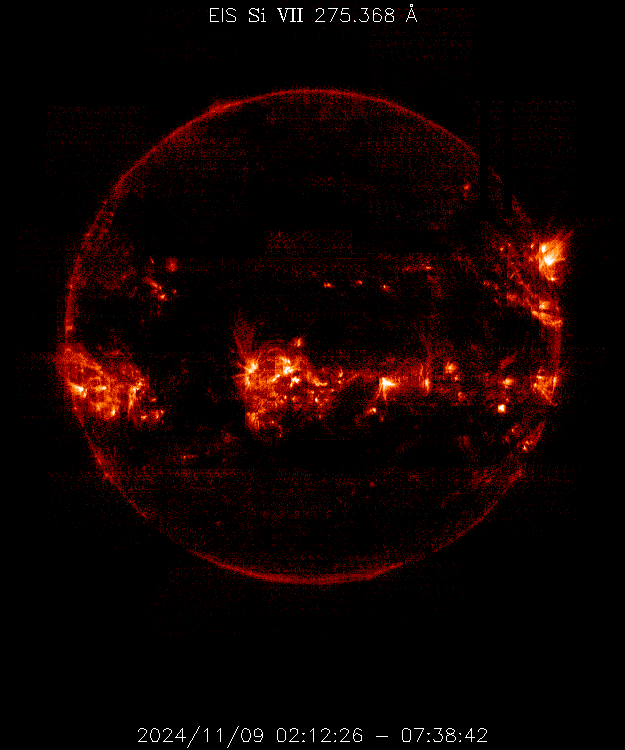

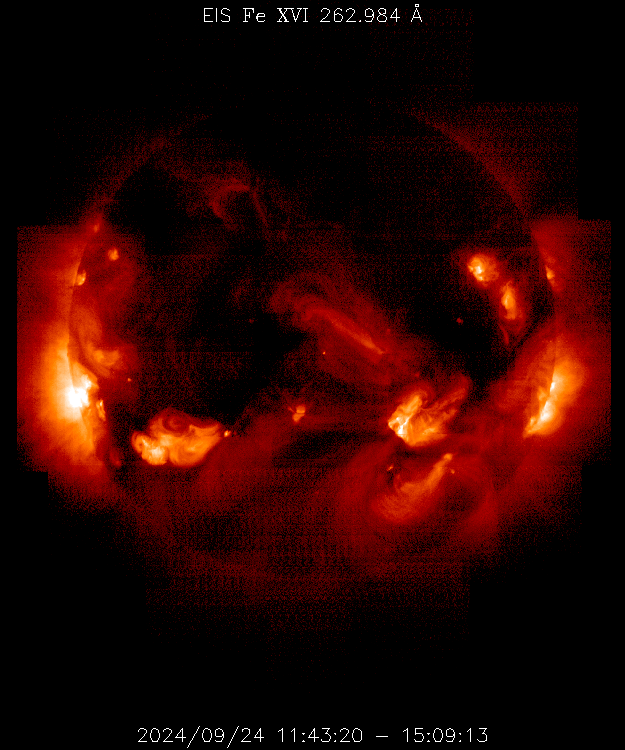

DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2023/10/03 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2023/09/12 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2023/08/15 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2023/07/19 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2023/06/20 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2023/05/23 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2023/05/03 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2023/04/12 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2023/03/21 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2023/02/28 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2023/02/07 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2023/01/10 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2022/12/13 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2022/11/15 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2022/10/26 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2022/10/06 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2022/09/13 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2022/08/24 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2022/07/19 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2022/06/21 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2022/05/24 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2022/04/12 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2022/05/03 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2022/03/22 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2021/12/14 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2021/11/23 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2021/11/12 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2021/10/12 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2021/09/21 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2021/09/09 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2021/09/03 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2021/08/10 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2021/07/13 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2021/06/15 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2021/04/27 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2021/04/06 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2021/03/17 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2021/02/23 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2021/02/09 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2020/11/10 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2020/09/29 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2020/09/10 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2020/08/18 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2020/07/07 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2020/06/18 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2020/05/26 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2020/05/05 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2020/03/24 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2020/03/03 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2020/02/11 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2020/01/21 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2019/12/31 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2019/12/10 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2019/11/19 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2019/10/08 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2019/08/27 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2019/08/06 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2019/07/09 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2019/06/11 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2019/05/14 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2019/04/30 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2019/04/10 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2019/03/19 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2019/02/26 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2019/02/05 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2019/01/08 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2018/12/11 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2018/11/27 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2018/11/06 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2018/10/16 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2018/09/25 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2018/09/04 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2018/07/10 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2018/06/18 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2018/06/17 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2018/06/12 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2018/01/09 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2017/12/12 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2017/12/01 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2017/11/14 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2017/10/26 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2017/10/03 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2017/09/14 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2017/08/22 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2017/07/14 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2017/06/20 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2017/05/30 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2017/04/18 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2017/03/29 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2017/03/07 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2017/02/15 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2017/01/18 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2016/12/13 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2016/11/23 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2016/11/01 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2016/10/11 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2016/09/20 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2016/09/06 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2016/09/05 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2016/08/30 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2016/08/16 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2016/07/20 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2016/06/22 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2016/06/01 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2016/05/25 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2016/05/17 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2016/04/27 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2016/04/05 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2016/03/15 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2016/03/01 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2016/02/02 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2016/01/12 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2015/12/21 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2015/11/10 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2015/10/23 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2015/10/07 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2015/09/10 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2015/08/18 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2015/07/17 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2015/06/17 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2015/05/21 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2015/05/06 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2015/04/18 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2015/04/03 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2015/03/03 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
'
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2015/02/10 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2014/12/09 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2014/11/28 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2014/10/08 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2014/09/16 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2014/08/28 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2014/08/07 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2014/07/15 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2014/05/13 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2014/04/22 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2014/04/03 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2014/03/11 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2014/02/18 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2014/01/31 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2014/01/07 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2013/12/18 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2013/11/26 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2013/11/05 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2013/10/21 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2013/10/11 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2013/10/08 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2013/09/24 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2013/09/03 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2013/08/15 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2013/07/23 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2013/06/11 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2013/05/01 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2013/04/11 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2013/03/19 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2013/03/02 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2013/02/05 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2013/01/19 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2012/12/26 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2012/11/14 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2012/10/30 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2012/10/02 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2012/09/11 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2012/08/23 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2012/07/10 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2012/06/24 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2012/06/23 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2012/05/30 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2012/04/20 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2012/03/23 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2012/02/16 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2012/01/30 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2012/01/05 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2011/12/14 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2011/11/22 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2011/11/01 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2011/10/11 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2011/09/20 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2011/08/30 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2011/08/09 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2011/07/21 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2011/06/28 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2011/06/07 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2011/04/27 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2011/02/25 02 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2011/02/25 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2011/02/23 02 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2011/02/23 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2011/02/01 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2010/12/04 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2010/11/16 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2010/10/20 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2010/09/28 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2010/09/06 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2010/07/27 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2010/06/15 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2010/05/04 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2010/04/13 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2010/03/09 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2010/02/11 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2010/01/07 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2009/12/08 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2009/11/17 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2009/10/28 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2009/10/06 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
2009/09/15 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
DATE MOSAIC SUMMARY He II 256.3 Si VII 275.4 Fe XI 180.4 Fe XII 195.1 Fe XIII 202.0 Fe XIII 203.8 Fe XV 284.2 Fe XVI 263.0 Composite Data file (Save link as)
2009/06/27 01 Short list, Extended Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full Part. / Full HDF
